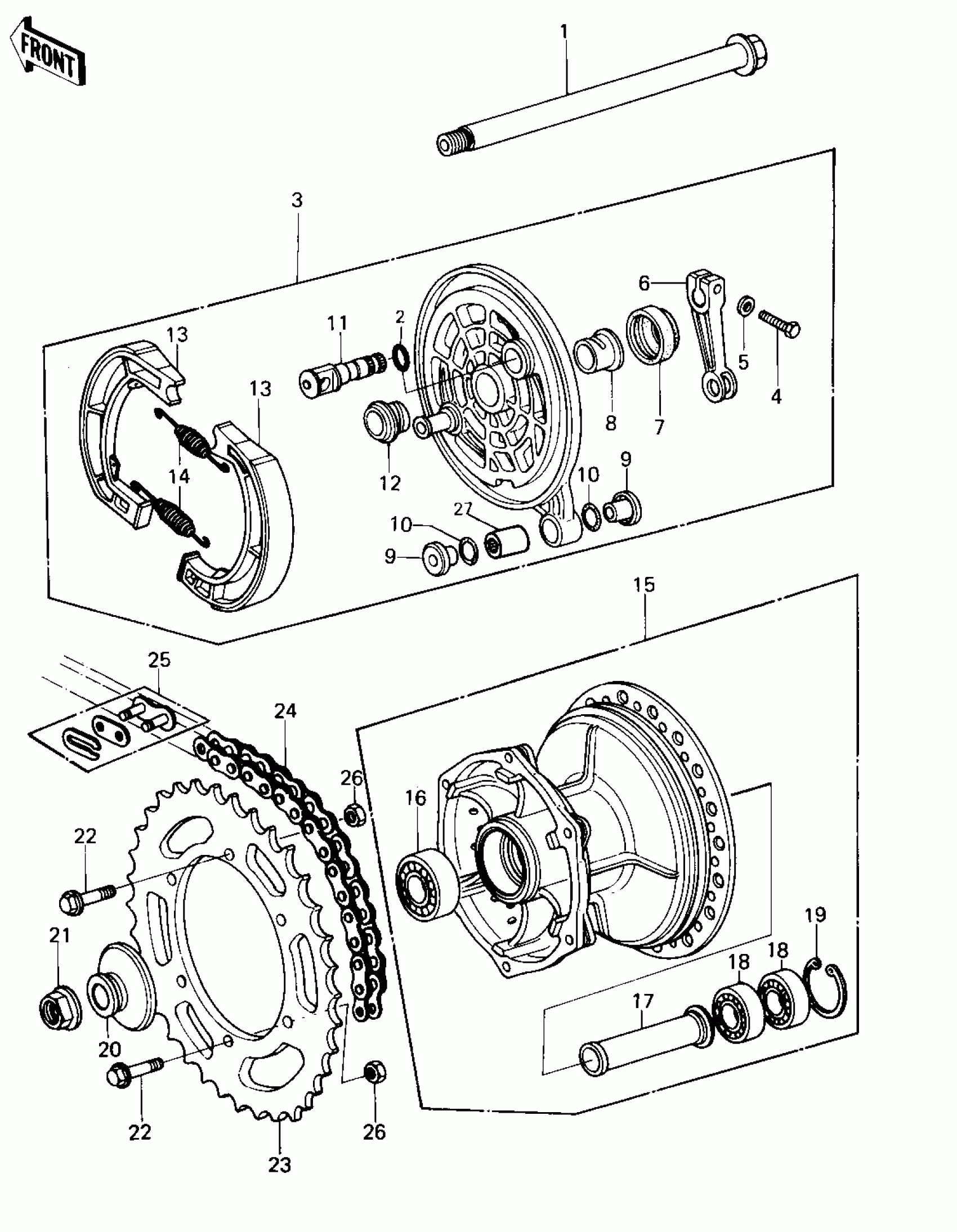

Kawasaki KX420 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

AXLE,REAR

41068-1033

$54.39

1

AXLE,REAR

41068-1059

Unavailable

2

O RING,15MM

670B2015

$1.08

3

PANEL-ASY,RR BRK

41035-4001

$492.31

4

BOLT-UPSET

112G0622

Unavailable

5

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

6

LEVER,REAR BRAKE CAM

41053-1004

$142.46

7

OIL SEAL

92093-1004

Unavailable

8

SLEEVE,REAR PANEL,R.

42036-1035

$80.53

9

COLLAR,L=11.5

92027-1040

Unavailable

10

"0" RING,11M/M

670C2011

Unavailable

11

CAM SHAFT,BRAKE

41050-1002

Unavailable

12

SLEEVE,REAR BRAKE

42036-1009

Unavailable

13

SHOE,BRAKE

42019-011

$38.11

14

SPRING,BRAKE SHOE

42020-004

$6.48

15

DRUM-ASSY,RR BRK

41034-1019

$495.88

16

BEARING-BALL,6204UUC3

601B6204UU

$26.51

17

COLLAR,REAR BRAKE

92027-1207

$46.56

18

BEARING-BALL,#6003UC3

601B6003U

$20.98

19

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

20

COLLAR,REAR AXLE,L.H

92027-4005

$21.61

21

NUT,16MM

92015-1015

Unavailable

22

BOLT,FLANGED,8X36

92001-1041

$9.54

23

SPROCKET,REAR,48T

42041-4001

Unavailable

23

SPROCKET,REAR,46T

42041-4002

Unavailable

23

REAR SPROCKET,50T STD

42041-1006

Unavailable

24

TS 520QRX118 P/S

520QRX118

$55.44

25

CHAIN JOINT 520

92058-1002

$10.37

26

NUT,LOCK,8MM

92015-1124

$4.10

26

NUT,8MM

92015-1134

$7.98

27

BEARING-NEEDLE,HK1216LL

92046-1009

$17.71
