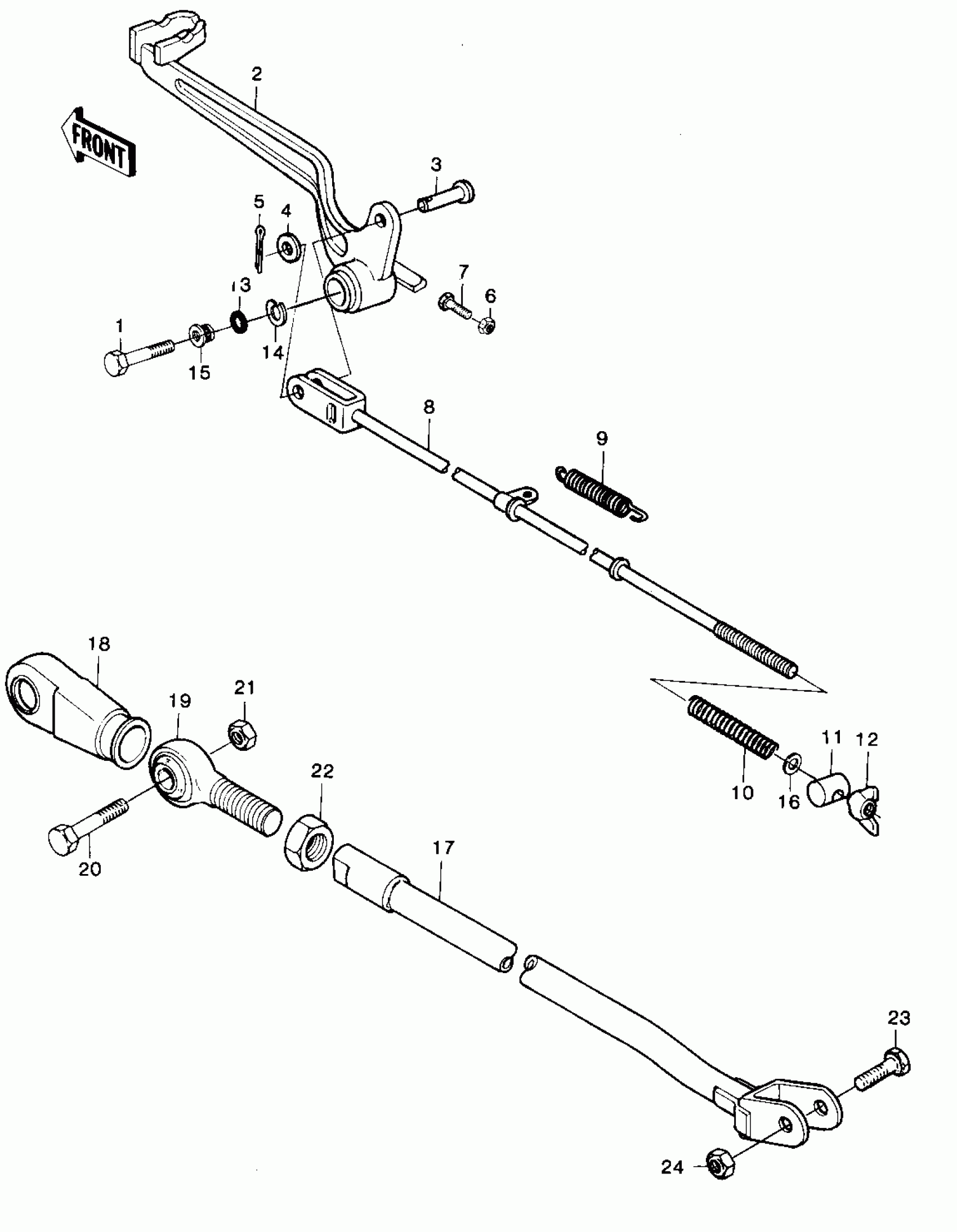

Kawasaki KX420 BRAKE PEDAL/TORQUE LINK Diagram

#

Description
Price

1

BOLT SMALL

114G0812

Unavailable

1

BOLT SMALL

114G0812

Unavailable

2

LEVER,BRAKE

43001-1042

$111.88

3

PIN,6X17

92043-064

$3.57

4

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

5

PIN COTTER 2.0X15

550D2015

Unavailable

6

NUT 6MM

311B0600

Unavailable

7

BOLT 6X22

112B0622

Unavailable

8

ROD,BRAKE

43011-1019

Unavailable

9

SPRING RETURN

92081-1059

Unavailable

9

SPRING,RETURN

92081-4012

Unavailable

10

SPRING,BRAKE ROD

43012-001

$3.54

11

PIN,BRAKE

92043-1024

$10.44

12

NUT,WING,6MM

92015-4004

$5.58

13

O RING,18MM

670B2018

$1.08

14

WASHER SPRING 8MM

461F0800

Unavailable

15

CAP

11012-1101

Unavailable

16

WASHER, BRAKE ROD

92022-4003

Unavailable

17

TORQUE LINK,RR BRAKE

43007-1014

$66.27

18

BOOT,BALL JOINT

49006-1035

Unavailable

19

JOINT,BALL,TORQUE RN

59266-1003

$61.98

20

BOLT,HEX HEAD,12X35

113P1235A

Unavailable

21

NUT-LOCK,12MM

92019-009

$7.20

22

NUT-HEX-FINE

315B1200

Unavailable

23

BOLT,FLANGED,8X35

92001-1577

Unavailable

24

NUT,LOCK,8MM

92017-013

$7.89

24

NUT,8MM

92015-1134

$7.98
