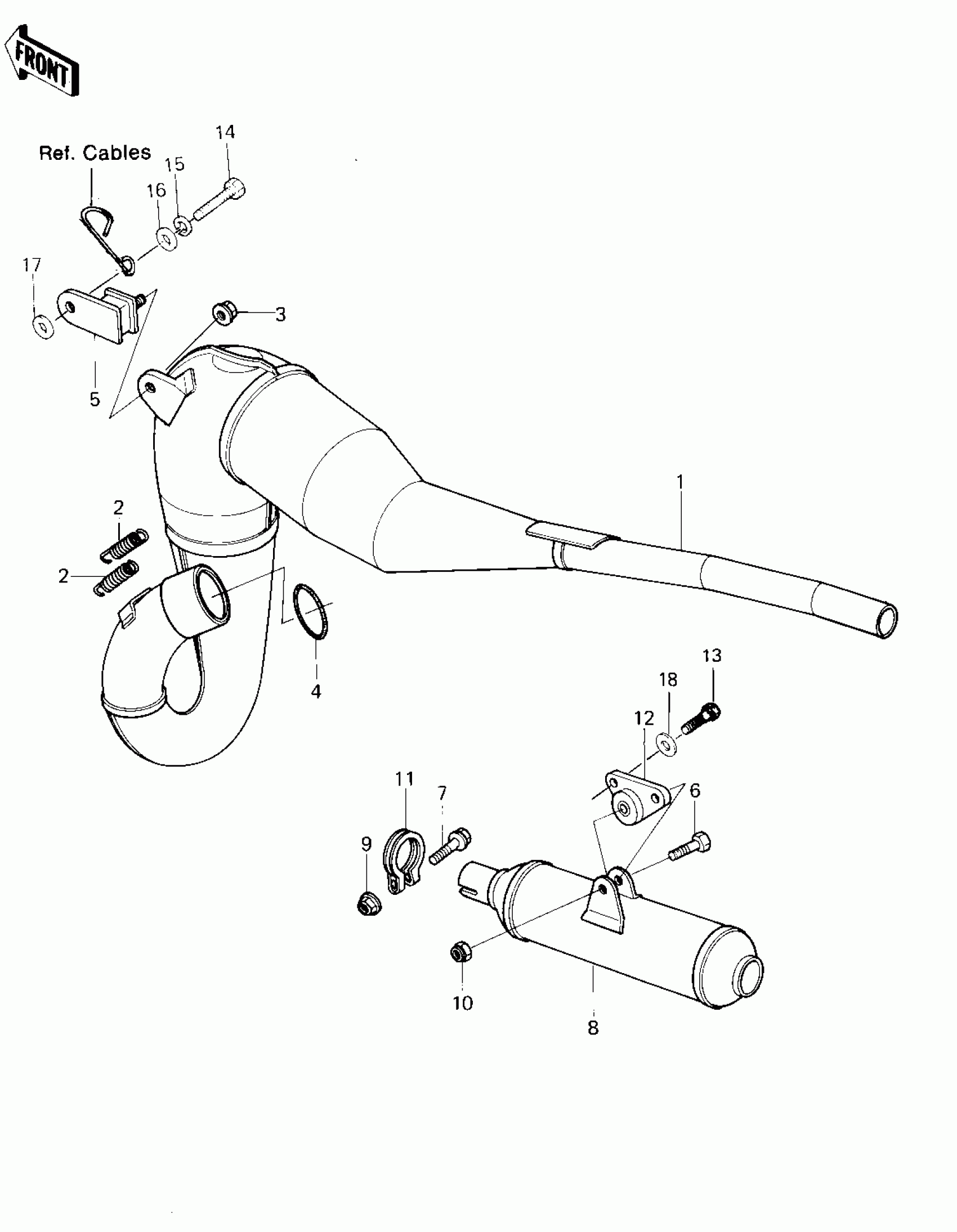

Kawasaki KX420 MUFFLER Diagram

#

Description
Price

1

BODY,MUFFLER,F.BLACK

18001-1103

Unavailable

2

SPRING-CONNECTOR

18071-003

$11.49

3

NUT,FLANGED,8MM

92015-1014

$0.65

3

NUT,LOCK,8MM

92015-1124

$5.42

4

"0" RING,55MM,MUFFLER

92055-1057

$17.72

5

DAMPER,MUFFLER FITING

92075-1060

Unavailable

6

BOLT-UPSET

112G0625

$3.62

7

BOLT,FLANGED,6X25

130G0625

$1.17

8

MUFFLER ASSY,F.BLACK

18001-1104

Unavailable

9

NUT,FLANGED,6MM

92015-1078

Unavailable

10

NUT,LOCK,6MM

92019-008

$4.26

11

CLAMP,MUFFLER

92037-1280

Unavailable

12

DAMPER RUBBER

92075-1046

Unavailable

13

BOLT-UPSET,6X16

112G0616

$1.10

14

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

15

WASHER SPRING 8MM

461F0800

$0.40

16

WASHER PLAIN 8MM

411B0800

$0.93

17

WASHER,8.5X20X1.6

92022-1561

$4.31

18

WASHER PLAIN 6MM

411B0600

$2.84
