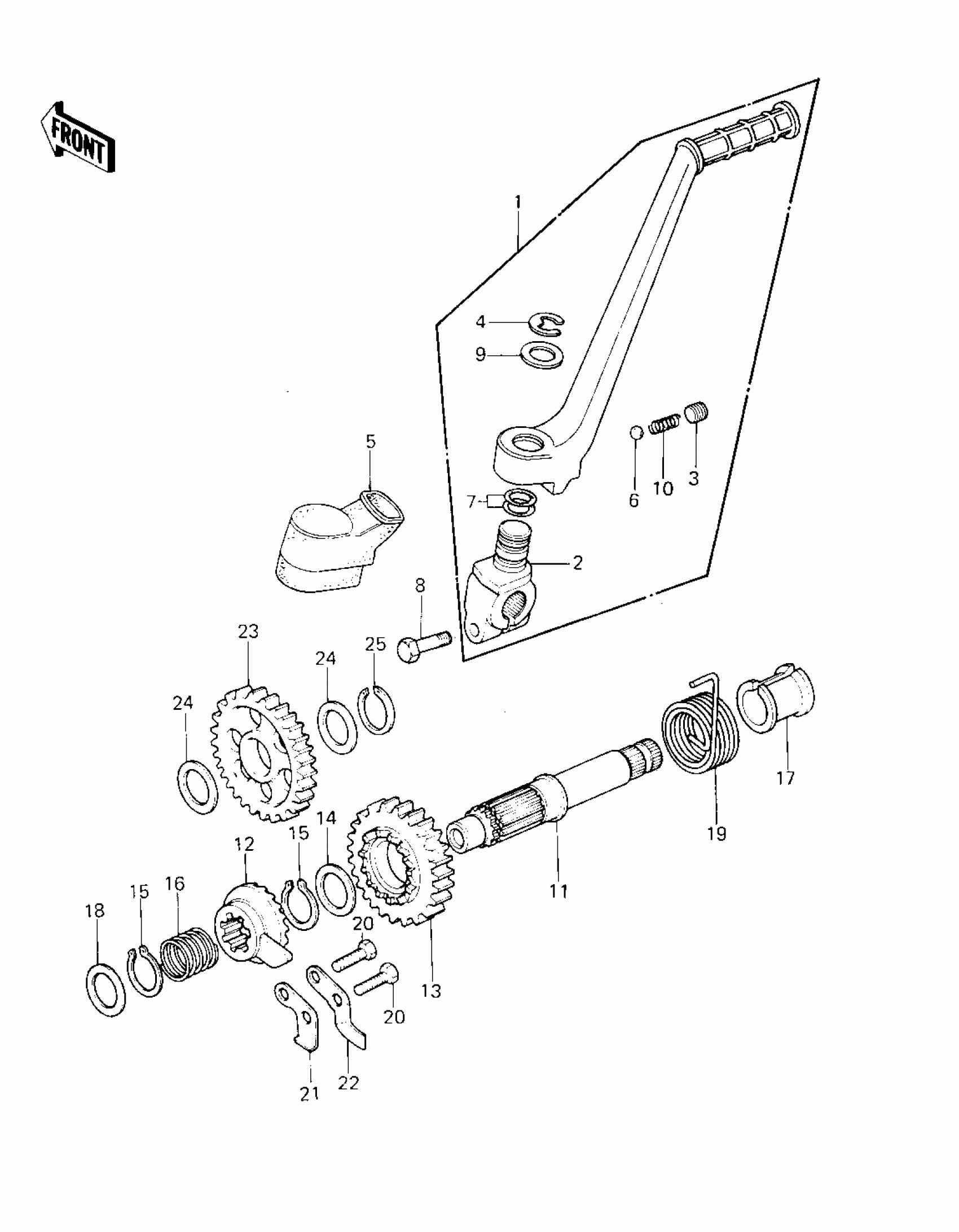

Kawasaki KX420 KICKSTARTER MECHANISM Diagram
#
Description
Price
1
PEDAL ASSY,KICK
13064-5003
Unavailable
2
BOSS,KICKSTARTER
13061-1007
Unavailable
3
SCREW-SET-SOCKET,8X8
290Q0808
Unavailable
4
CIR CLIP
482K0100
Unavailable
5
BOOT,KICKSTARTER
49006-1006
Unavailable
6
BALL-STEEL,1/4
600A0800
Unavailable
7
O RING,15MM
670B2015
Unavailable
8
BOLT,8X28
92001-1042
Unavailable
9
WASHER,15.2X20X1
92022-1019
Unavailable
10
SPRING,KICK PEDAL
92081-020
Unavailable
11
SHAFT,KICK
13066-1009
Unavailable
12
RATCHET
13078-007
Unavailable
13
GEAR,KICKSTARTER,25T
59051-1016
Unavailable
14
WASHER,25.3X30X0.5
92022-159
Unavailable
15
RING-SNAP,24MM
92033-026
Unavailable
16
SPRING
92081-097
Unavailable
17
GUIDE,KICKSTARTER
13070-007
Unavailable
18
WASHER,20.5X25.5X0.5
92022-252
Unavailable
19
SPRING,KICKSTARTER
92082-003
Unavailable
20
BOLT-UPSET
112G0618
Unavailable
21
STOPPER,KICKSTARTER
13072-014
Unavailable
22
GUIDE-KICK
13206-1003
Unavailable
23
GEAR,IDLE,27T
59051-1017
Unavailable
24
WASHER,20.5X25.5X0.5
92022-252
Unavailable
25
RING-SNAP,18MM
92033-029
Unavailable
