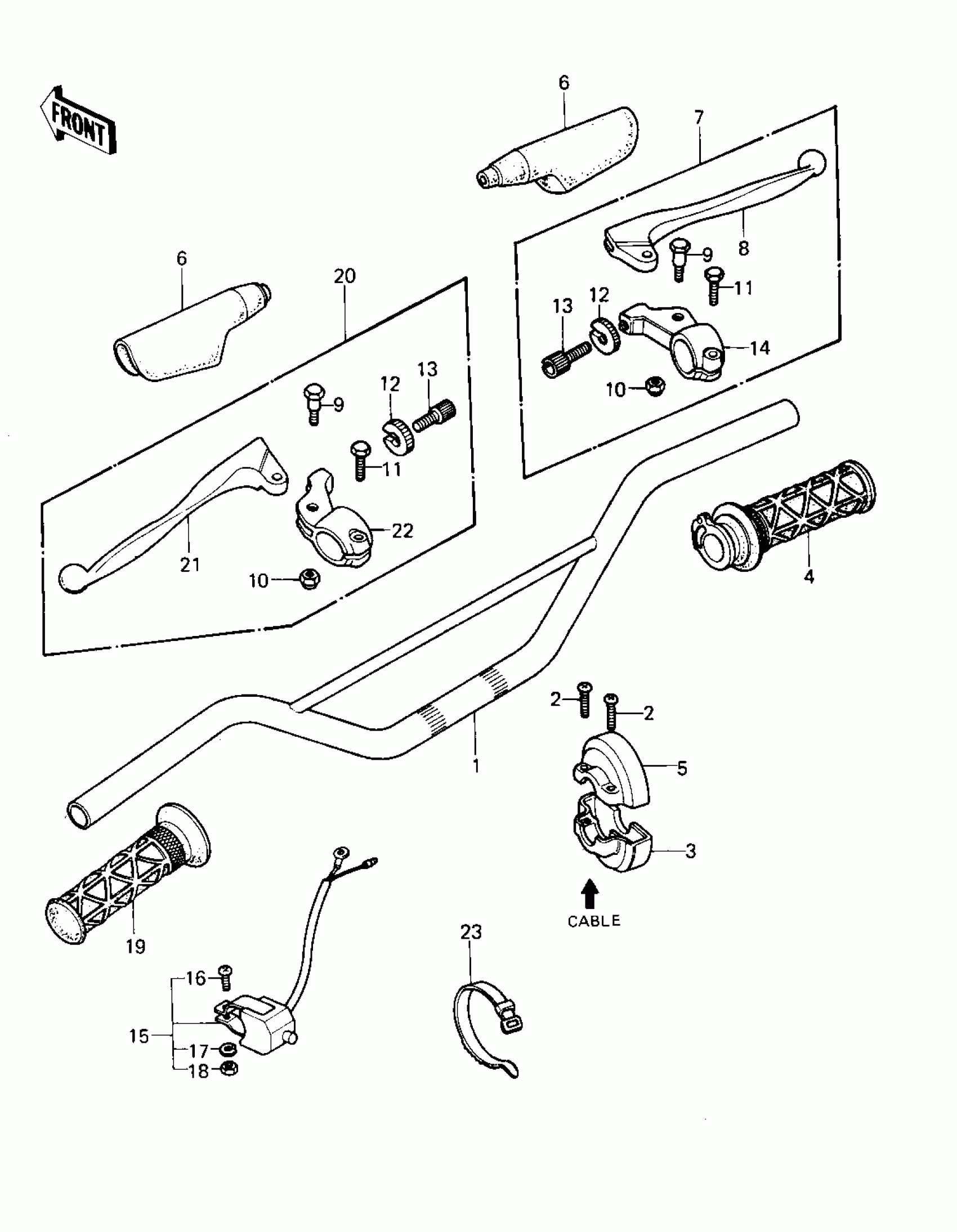

Kawasaki KX420 HANDLEBAR Diagram
#
Description
Price
1
HANDLEBAR
46003-4002
$105.06
2
SCREW-PAN-CROS
220B0520
$0.68
3
HOUSING-ASSY-CONTROL
46091-5006
Unavailable
3
HOUSING CONTROL,R.H.
32099-1011
Unavailable
4
GRIP-ASSY
46019-1012
Unavailable
4
GRIP-ASSY
46019-1012
Unavailable
5
CASE,R.H,GRIP,UPPER
32099-1014
Unavailable
5
CASE,R.H,GRIP,UPPER
32099-1014
Unavailable
6
DUST COVER
46071-003
Unavailable
7
LEVER ASSY,FRONT BRA
46076-1003
Unavailable
8
FRONT BRAKE LEVER
46058-018
$57.72
9
BOLT,HEX HEAD,6MM
92001-140
Unavailable
10
NUT,LOCK,6MM
92019-008
$4.26
11
BOLT-UPSET
112N0620
$2.12
12
NUT,CABLE ADJUST
46056-006
$8.94
13
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
14
HOLDER,F.BRAKE LEVER
46060-010-21
$69.29
15
SWITCH,ASSY,ENG STOP
27010-1018
Unavailable
16
SCREW PAN HEAD 3X14
220E0314A
Unavailable
17
WASHER SPRING 3MM
461F0300
$0.46
18
NUT-HEX
311B0300
$0.40
19
GRIP
46075-1015
Unavailable
19
GRIP
46075-1015
Unavailable
20
LEVER ASSY,CLUTCH
46076-1004
Unavailable
21
LEVER, CLUTCH
46092-021
Unavailable
22
HOLDER,CLUTCH LEVER
46094-014-21
$60.89
23
BAND
92072-3505
Unavailable
