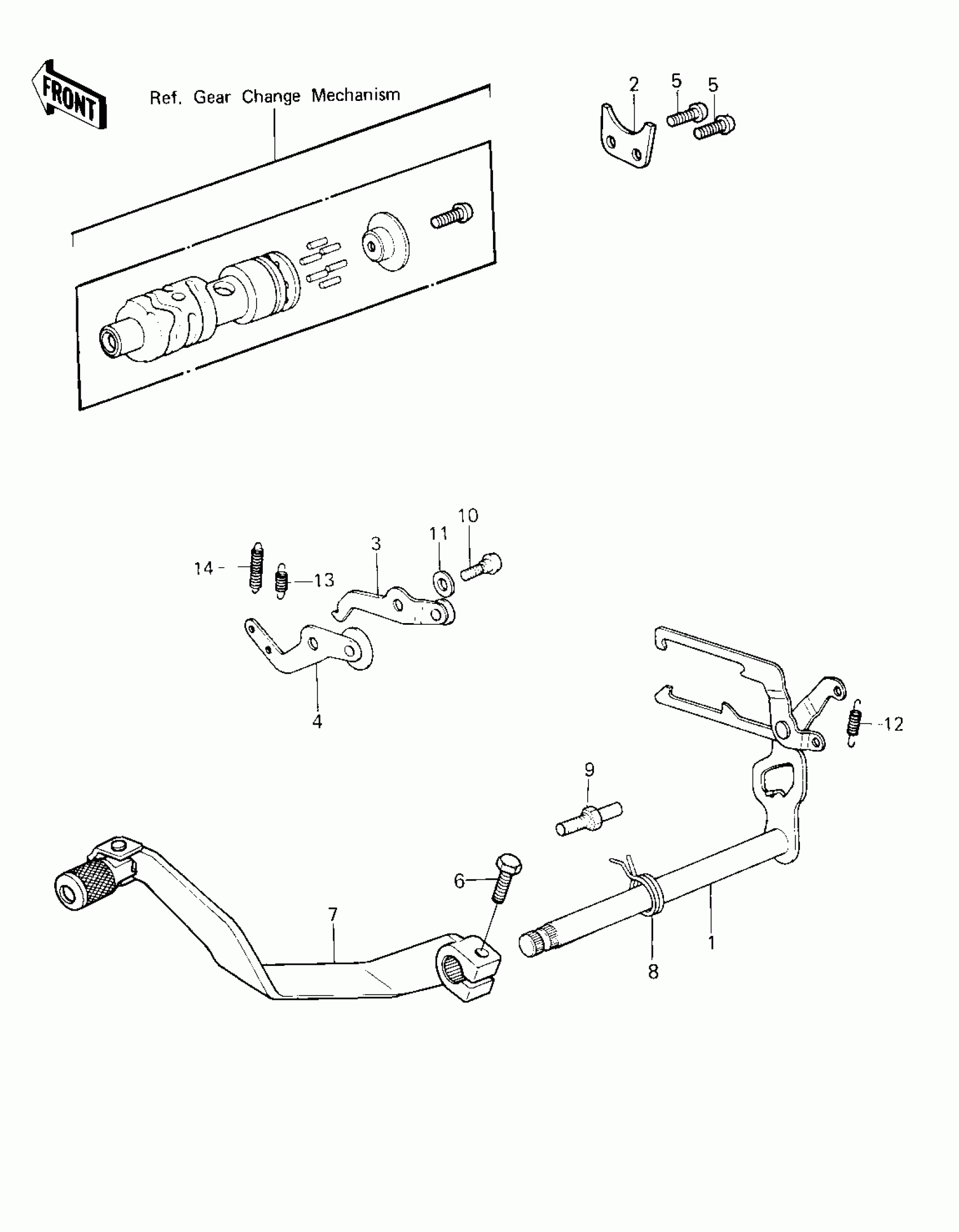

Kawasaki KX420 GEAR CHANGE MECHANISM Diagram

#

Description

Price

1

LEVER ASSY,GEAR CHANG

13161-1012

Unavailable

2

PLATE,CHANGE DRUM

13169-1267

Unavailable

3

LEVER ASSY,GEAR CHANG

13236-007

Unavailable

4

LEVER, GEAR SET

13236-1013

Unavailable

5

SCREW-PAN-CROS,6X14

220B0614

Unavailable

6

BOLT-UPSET,6X20

112G0620

Unavailable

7

PEDAL ASSY,GEAR CHANG

13242-1025

Unavailable

8

SPRING,CHG PEDL RTRN

92083-028

Unavailable

9

BOLT,RETURN SPRING

92001-1401

Unavailable

9

BOLT,RETURN SPRING

92001-1401

Unavailable

10

SCREW,6MM

92011-023

Unavailable

11

WASHER,PLAIN

92022-1053

Unavailable

12

SPRING,CHANGE LEVER

92081-076

Unavailable

13

SPRING-COIL

92081-077

Unavailable

14

SPRING

92081-119

Unavailable
