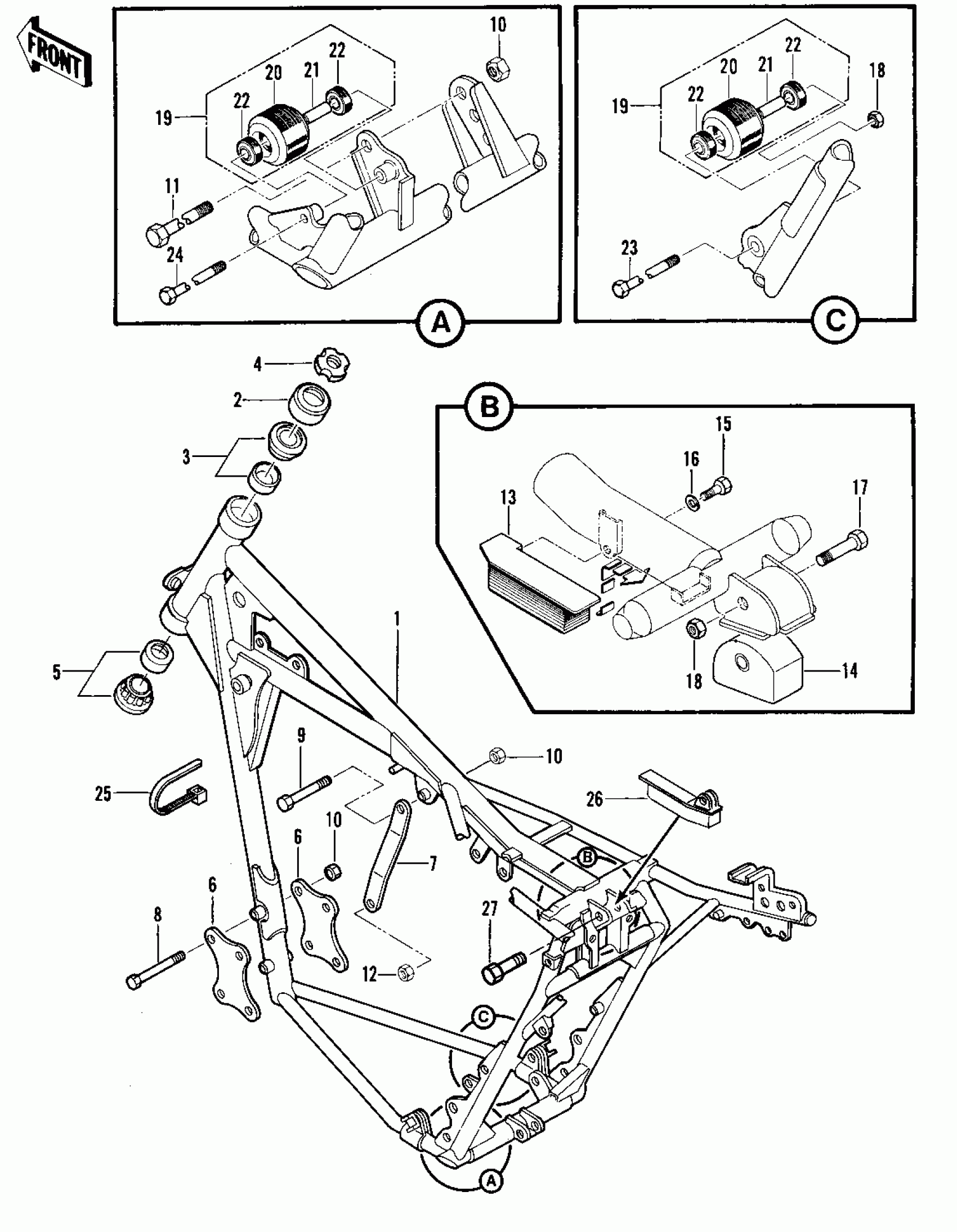

Kawasaki KX420 FRAME/FRAME FITTINGS (KX420-A1) Diagram
#
Description
Price
1
FRAME
32002-1231
Unavailable
1
FRAME
32002-1231
Unavailable
2
CAP,STEERING STEM
46098-015
Unavailable
3
RACE,ROLLER,32005JR RS
92047-017
$43.75
4
NUT,25MM,T=12
92015-1546
$20.96
5
BEARING-ROLLER,LWR,32006JR RS
92116-1008
$75.31
6
BRACKET,ENGINE
32029-1116
$15.42
7
BRACKET,ENGINE
32029-4010
Unavailable
8
BOLT HEX HEAD,10X66.5
92001-1033
Unavailable
9
BOLT
92001-1412
Unavailable
10
NUT,LOCK,10MM
92019-021
$6.11
11
BOLT,HEX HEAD,10X127
92001-4001
Unavailable
12
NUT,FLANGED,10MM
92015-1415
$4.69
13
DAMPER,REAR SHOCK
92075-1249
Unavailable
14
DAMPER UNITRAK
92075-4025
$51.34
15
BOLT SMALL
114G0812
Unavailable
16
WASHER SPRING 8MM
461F0800
$0.40
17
BOLT,8X40
115G0840
$6.00
18
NUT,LOCK,8MM
92015-1124
$5.42
19
ROLLER,ASSY
92122-1013
$108.77
20
ROLLER
92122-1014
Unavailable
20
ROLLER
92122-1014
Unavailable
21
COLLAR
92027-1081
$9.59
22
BEARING-BALL,608LLU/2A
92045-1009
$35.22
22
BEARING-BALL,608LLU/2A
92045-1009
$35.22
23
BOLT-SMALL-UPSET
115G0855
$6.13
24
BOLT HEX HEAD 8X70
114B0870
$4.46
25
BAND,L=292.1
92072-3509
Unavailable
26
DAMPER,RUBBER
92075-1280
Unavailable
27
BOLT 6X35
110R0635
Unavailable
