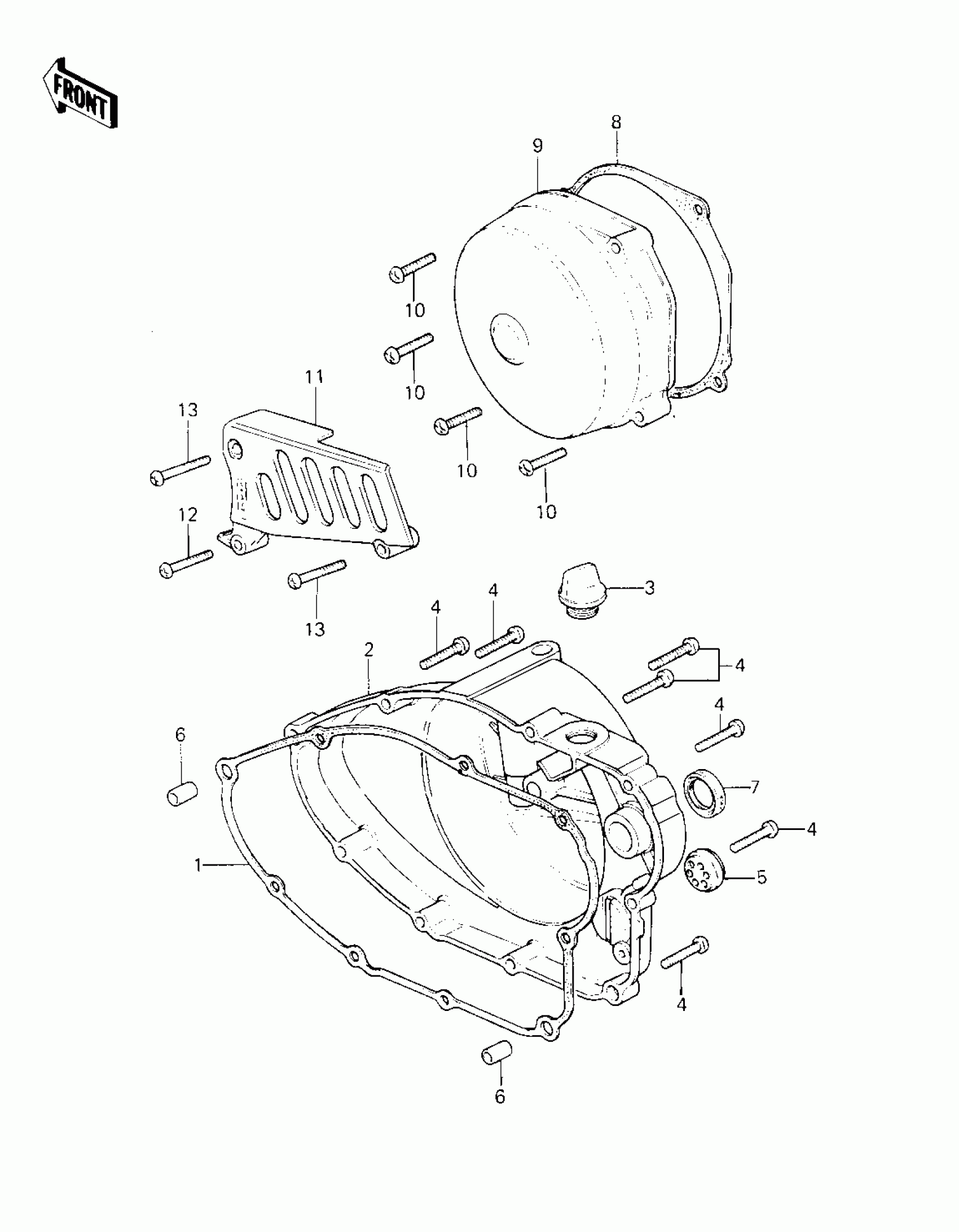

Kawasaki KX420 ENGINE COVERS Diagram

#

Description

Price

1

GASKET,CLUTCH COVER

11009-1131

Unavailable

2

COVER,CLUTCH,F.BLACK

14032-1021

Unavailable

3

CAP-OIL FILLER

16115-018

Unavailable

4

SCREW PAN HEAD 6X30

220B0630

Unavailable

5

GAUGE,OIL LEVEL

52015-004

Unavailable

5

GAUGE,OIL LEVEL

52005-1009

Unavailable

6

PIN,DOWEL,10X14

92043-1037

Unavailable

7

SEAL-OIL,SB20285

92049-012

Unavailable

8

GASKET,MAGNETO COVER

11009-1132

Unavailable

9

COVER,MAGNETO,F.BLACK

14031-1035

Unavailable

10

SCREW PAN HEAD 6X30

220B0630

Unavailable

11

COVER,FRONT CHAIN

14026-1012-21

Unavailable

12

SCREW PAN HEAD 6X35

220B0635

Unavailable

13

SCREW PAN HEAD 6X40

220B0640

Unavailable
