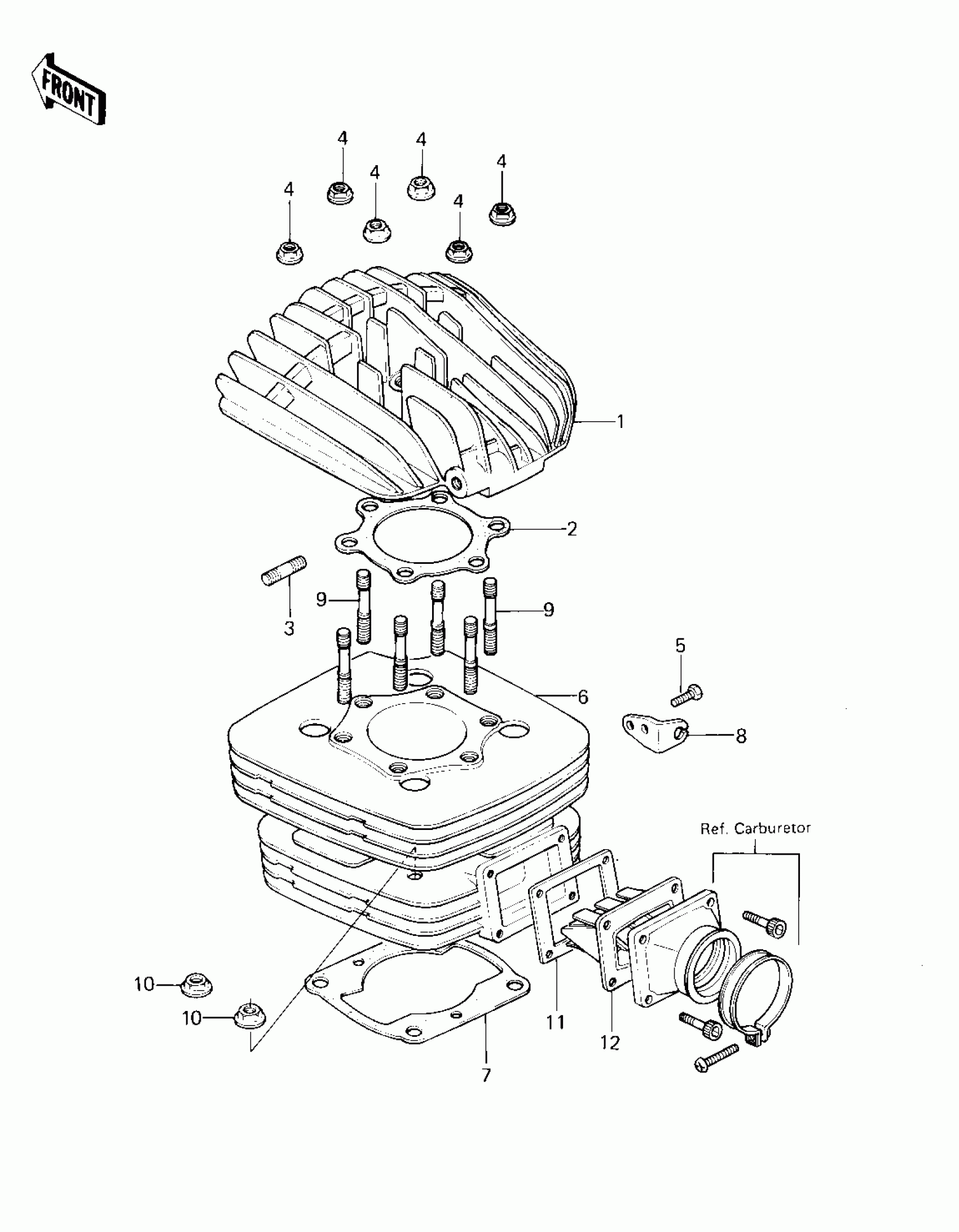

Kawasaki KX420 CYLINDER HEAD/CYLINDER/REED VALVE Diagram

#

Description

Price

1

HEAD,CYLINDER,F.BLACK

11001-1030

Unavailable

2

GASKET,HEAD,CYLINDER

11004-1015

Unavailable

3

STUD,10X18

175G1018

Unavailable

4

NUT,FLANGED,8MM

92015-1014

Unavailable

5

BOLT-UPSET

112G0618

Unavailable

6

CYLINDER,ELECTRO-FUSE

11005-1068

Unavailable

7

GASKET,CYLINDER BASE

11009-1130

Unavailable

8

HOLDER

13091-1119

Unavailable

9

STUD,CYLINDER

92004-1022

Unavailable

10

NUT,FLANGED,10MM

92015-1415

Unavailable

11

GASKET,REED VALVE

11009-1018

Unavailable

12

VALVE ASSY,REED

12021-1007

Unavailable
