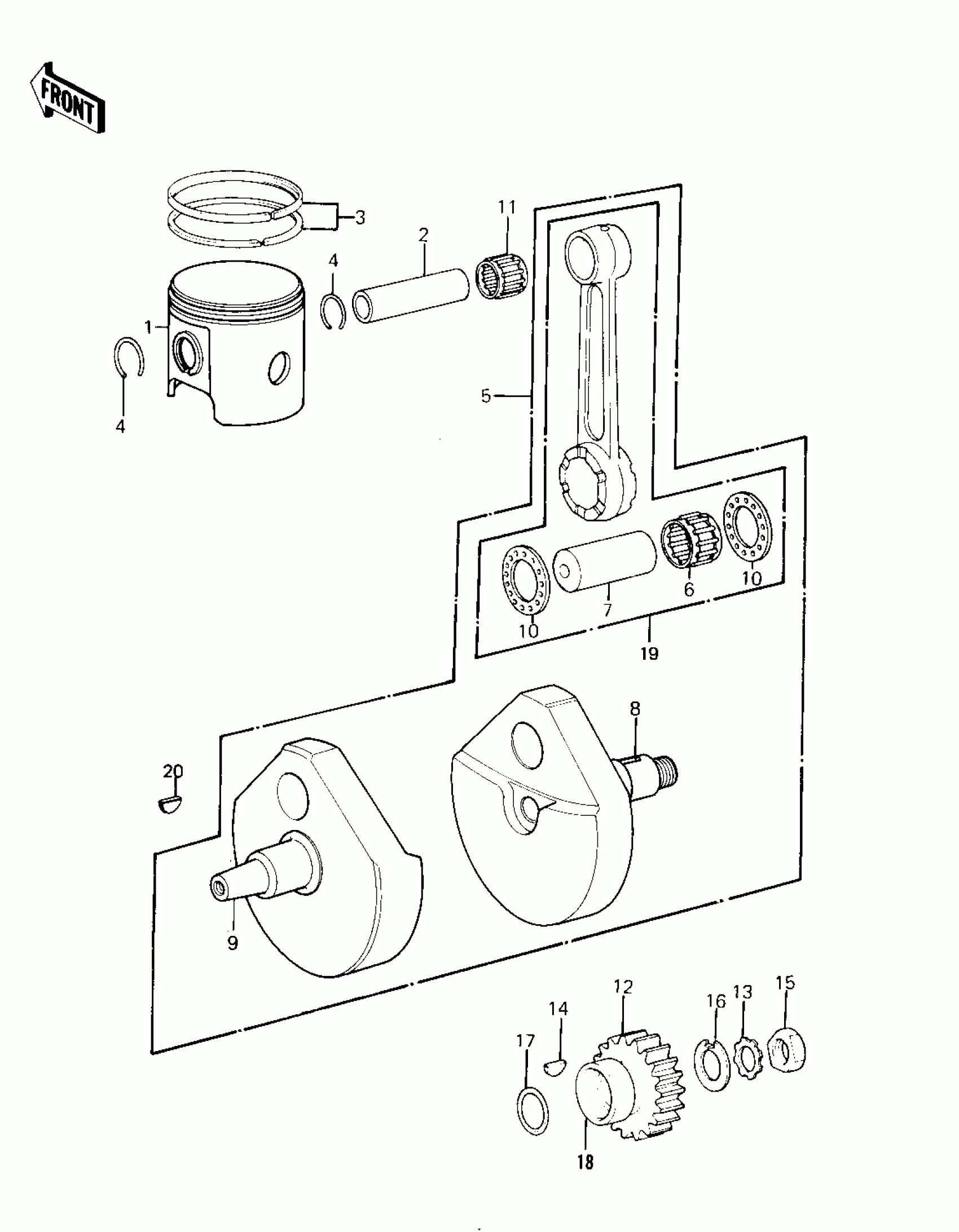

Kawasaki KX420 CRANKSHAFT/PISTON Diagram

#

Description

Price

1

PISTON-ENGINE

13001-1075

Unavailable

2

PIN-PISTON

13002-031

Unavailable

3

RING SET,PISTON

13008-5030

Unavailable

4

RING-SNAP,PISTON PIN

92036-008

Unavailable

5

CRANKSHAFT ASSY

13031-1031

Unavailable

6

BEARING N,KT263322EGS

13034-1012

Unavailable

7

PIN,CRANK,12X26X62

13035-1003

Unavailable

8

CRANKSHAFT,R.H.

13037-1035

Unavailable

9

CRANKSHAFT,L.H.

13037-1061

Unavailable

10

WASHER,CONROD SIDE

92026-093

Unavailable

11

BEARING-SMALL END,KTV192425

13033-1055

Unavailable

12

GEAR,PRIMARY,26T

13097-1019

Unavailable

12

GEAR,PRIMARY SPUR

13097-1046

Unavailable

13

WASHER,LOCK,18M/M

464H1800

Unavailable

14

WOODRUFF KEY

510A5100

Unavailable

15

NUT,18MM

92015-019

Unavailable

16

WASHER LOCK 18MM

92024-015

Unavailable

17

RING-O,30MM

92055-1047

Unavailable

18

COLLAR

92027-1285

Unavailable

19

CONNECTING ROD ASSY

13044-5011

Unavailable

20

KEY,WOODRUFF

92038-001

Unavailable
