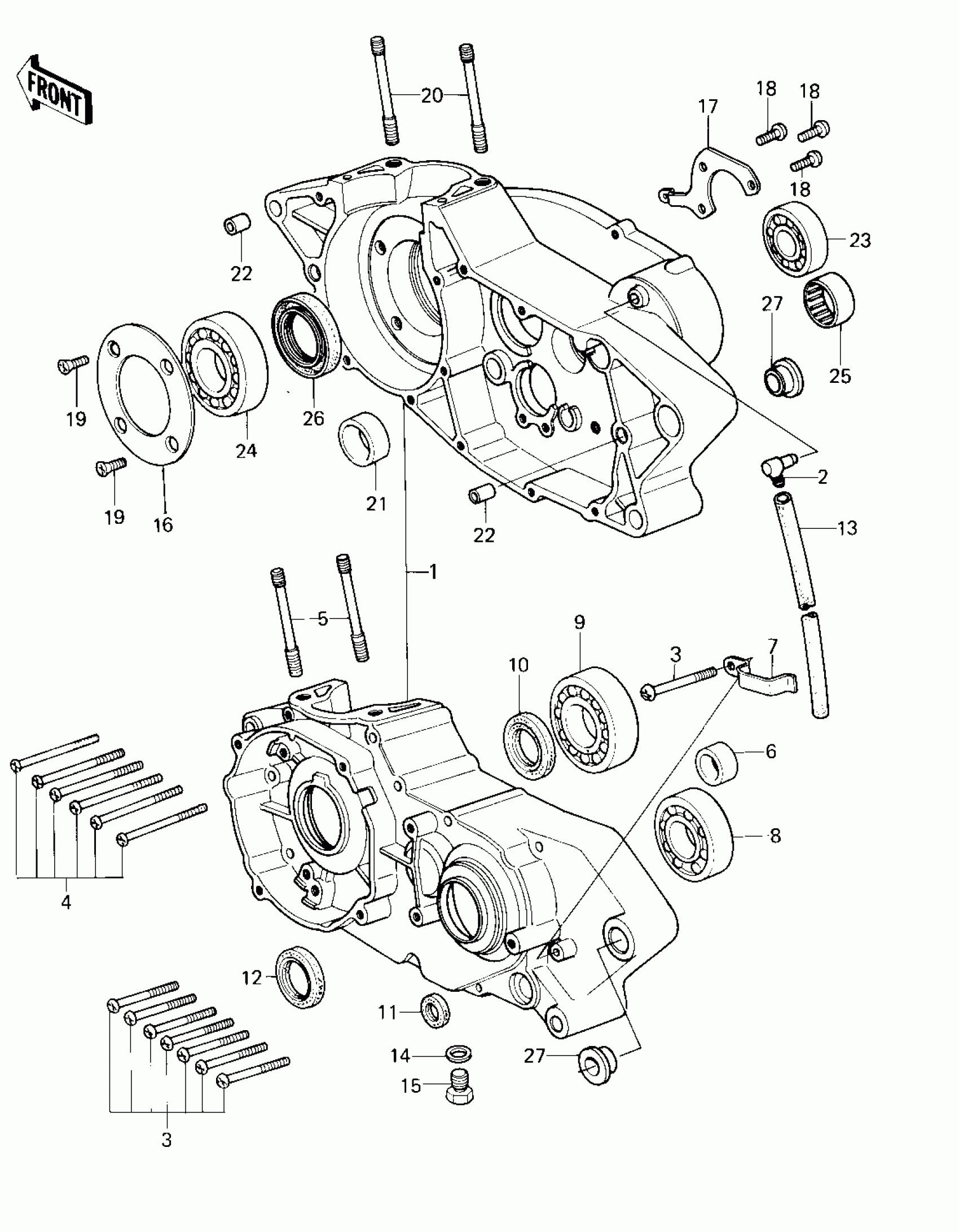

Kawasaki KX420 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE SET,F.BLACK
14001-5044
Unavailable
1
CRANKCASE SET
14001-5070
Unavailable
2
BREATHER
14069-003
Unavailable
3
SCREW PAN HEAD 6X50
220B0650
Unavailable
4
SCREW PAN HEAD 6X70
220B0670
Unavailable
5
STUD,10X72
92004-1023
Unavailable
6
BUSHING,23X30X13
92028-132
Unavailable
7
CLAMP
92037-1073
Unavailable
8
BEARING-BALL,#6305
92045-1011
Unavailable
9
BEARING-BALL,6306SH2,9TC
92045-1027
Unavailable
10
SEAL-OIL
92050-057
Unavailable
11
SEAL-OIL
92050-082
Unavailable
12
SEAL-OIL,TC32457
92049-1159
Unavailable
13
PIPE-BREATHER
92059-061
Unavailable
14
GASKET,10.5X16X1
92065-058
Unavailable
15
PLUG,DRAIN,10X12
92067-001
Unavailable
16
PLATE,POSITION,CRANK
14014-1011
Unavailable
17
PLATE,POSITION,DRIVE
14014-1012
Unavailable
18
SCREW-PAN-CROS,6X16
220B0616
Unavailable
18
SCREW-PAN-CROS,6X14
220B0614
Unavailable
19
SCREW-CSK-CROS,6X16
221B0616
Unavailable
20
STUD,10X72
92004-1023
Unavailable
21
BUSHING,26X35X14
92028-131
Unavailable
22
PIN,DOWEL,10X14
92043-1037
Unavailable
23
BEARING,BALL
92045-1006
Unavailable
24
BEARING-BALL,6306SH2,9TC
92045-1027
Unavailable
25
BEARING,NEEDLE,344012
92046-040
Unavailable
26
OIL SEAL,ACJ386210
92049-1046
Unavailable
27
BUSHING,PIVOT MOUNT
92028-1074
Unavailable
27
BUSHING,CASE PIVOT
92028-1123
Unavailable
