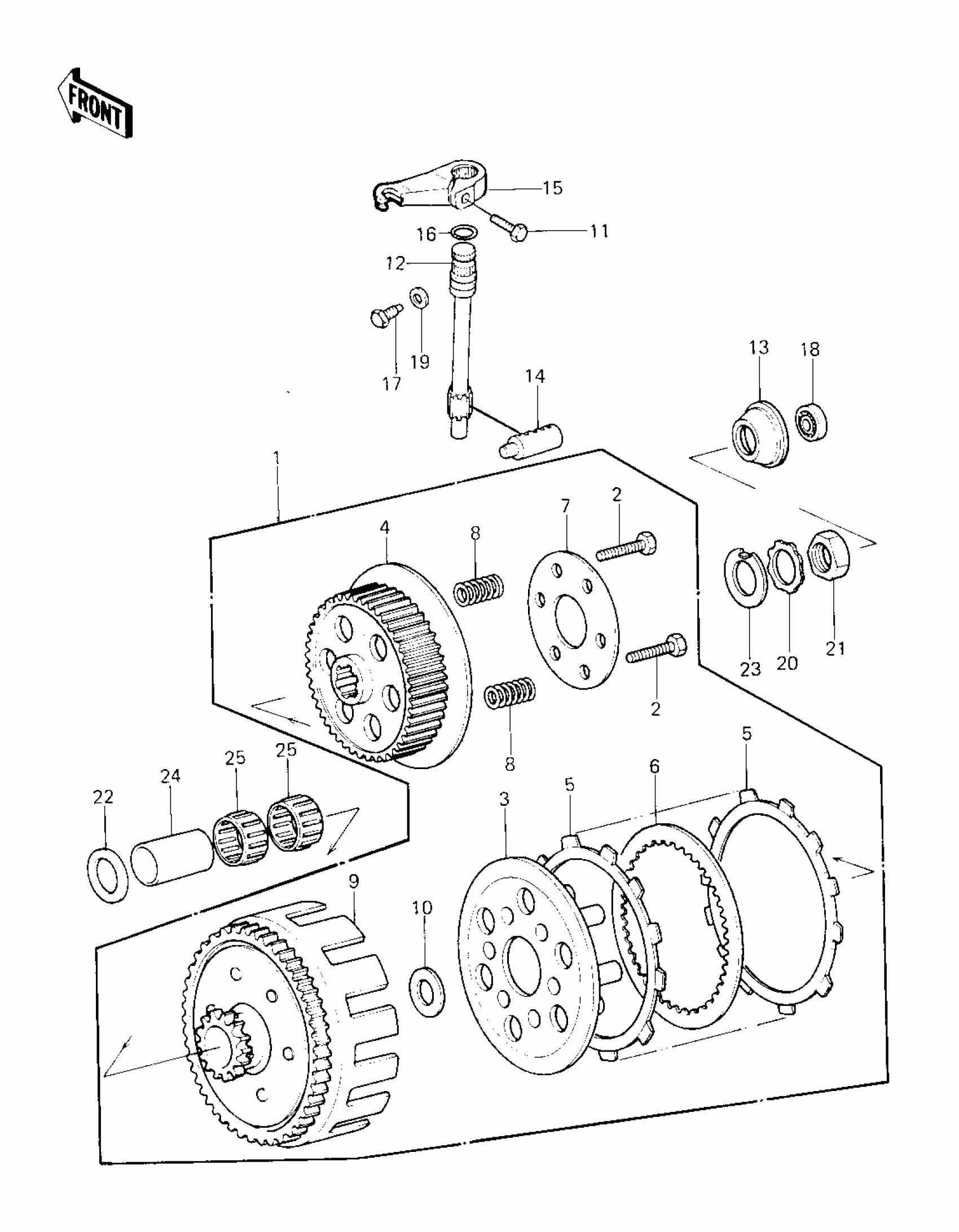

Kawasaki KX420 CLUTCH Diagram
#
Description
Price
1
CLUTCH-ASSY
13081-1027
Unavailable
1
CLUTCH-ASSY
13081-1056
Unavailable
2
BOLT-UPSET
112G0618
Unavailable
2
BOLT-UPSET,6X20
112G0620
Unavailable
3
WHEEL,CLUTCH
13086-016
Unavailable
4
HUB,CLUTCH
13087-1012
Unavailable
5
PLATE,CLUTCH FRICTION
13088-041
Unavailable
6
PLATE,CLUTCH STEEL
13089-025
Unavailable
7
PLATE,CLUTCH SPRING
13091-016
Unavailable
8
SPRING,CLUTCH
92081-1151
Unavailable
9
HOUSING,CLUTCH
13095-1017
Unavailable
9
HOUSING CLUTCH
13095-1036
Unavailable
10
WASHER,CLUTCH THRUST
92022-282
Unavailable
11
BOLT-UPSET
112G0618
Unavailable
12
SHAFT,CLUTCH RELEASE
13106-008
Unavailable
13
HOLDER,CLUTCH PUSHER
13091-1071
Unavailable
13
HOLDER,CLUTCH PUSHER
13091-1071
Unavailable
14
ROD,CLUTCH PUSH
13116-025
Unavailable
15
LEVER,CLUTCH RELEASE
13168-1023
Unavailable
15
LEVER,CLUTCH RELEASE
13168-1010
Unavailable
16
O RING,10MM
670B2010
Unavailable
17
BOLT,CLUTCH RELEASE
92003-130
Unavailable
18
BEARING,BALL
92045-1005
Unavailable
19
GASKET,6X14X0.8
92065-092
Unavailable
20
WASHER,LOCK,16MM
464H1600
Unavailable
21
NUT,16M/M
92015-1016
Unavailable
22
WASHER,PLAIN
92022-314
Unavailable
22
WASHER,CLUTCH THRUST
92022-282
Unavailable
23
WASHER,16.8X32X1.6
92022-1277
Unavailable
24
BUSHING,CLUT,20X25X40
92028-1067
Unavailable
25
BEARING,NEEDLE
92046-1003
Unavailable
