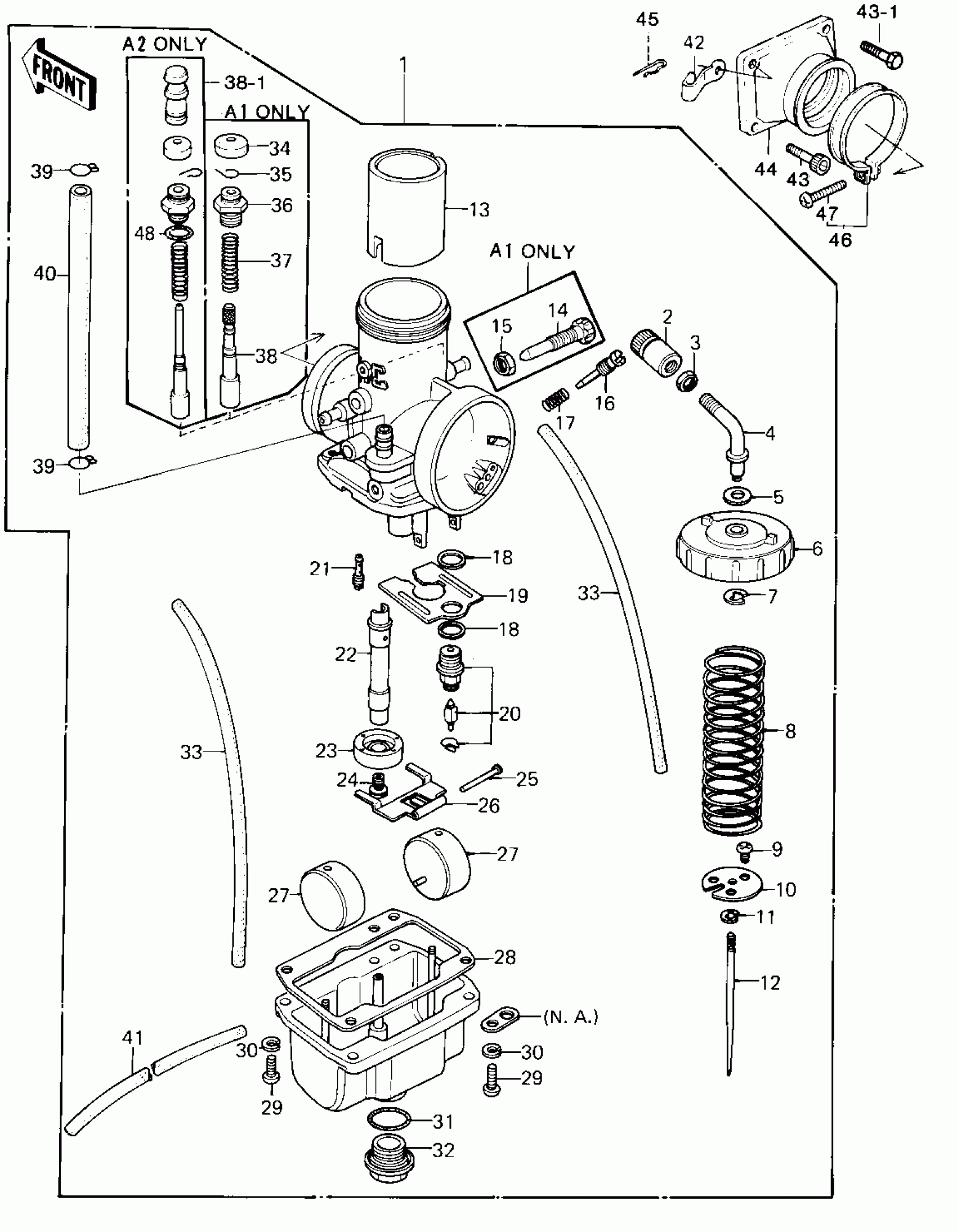

Kawasaki KX420 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-1390

$236.80

2

ADJUSTER-CABLE

16002-1006

Unavailable

3

NUT,CABLE ADJUST LOCK

16003-004

$7.34

4

GUIDE,CABLE

13070-1014

Unavailable

5

GASKET,CABLE GUIDE

11009-1191

Unavailable

6

TOP,MIXING CHAMBER

16004-1010

$36.19

7

CLAMP,CABLE GUIDE

16008-011

Unavailable

8

SPRING-THROTTLE VALV

16006-016

Unavailable

9

SCREW,4X5

92009-1037

$3.56

10

SEAT,THROTTLE VALVE

16007-1007

Unavailable

11

CLAMP,E-TYPE

16008-010

$9.21

12

JET NEEDLE,6FL28

16009-1033

Unavailable

13

VALVE,THROTTLE,CA,3.0

16025-1053

$111.98

16

SCREW

16014-006

$17.15

17

SPRING,PILOT AIR SCREW

16022-007

$8.13

18

GASKET,FLOAT VALVE

11009-1076

Unavailable

19

BAFFLE-CARB

16038-019

$18.24

20

FLOAT VALVE ASSY

16030-020

$82.44

21

JET-PILOT NO 35

92064-023

$20.51

22

NEEDLE JET,R-8

16017-1082

$33.88

23

HOLDER-CARBURETOR

16065-1052

Unavailable

24

MAIN JET,#170R

92063-1022

Unavailable

24

MAIN JET,#175R

92063-1039

$24.35

24

MAIN JET,#180

92063-1099

Unavailable

24

MAIN JET,#177-5R

92063-1040

Unavailable

24

MAIN JET,#170R

92063-1022

Unavailable

25

PIN,FLOAT

16032-008

$6.57

26

ARM-FLOAT

16055-009

Unavailable

27

FLOAT

16031-029

$64.25

28

GASKET,FLOAT CHAMBER

16019-028

Unavailable

29

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

30

WASHER SPRING 5MM

461F0500

$0.69

31

GASKET,MAIN JET COVER

16038-009

Unavailable

32

COVER-MAIN JET

16049-006

Unavailable

33

TUBE,3.5X6.5X410

92059-1142

Unavailable

38-1

PLUNGER,STARTER

16016-1026

Unavailable

39

CLAMP,CARB CONECT HOS

92037-056

$6.60

40

HOSE,FUEL,6.5OX11.5O

92059-1026

Unavailable

41

TUBE,3.5X6.5X290,BRTH

92059-1017

Unavailable

42

CLAMP CABLE

92037-016

Unavailable

43-1

BOLT-FLANGED,6X20

130G0620

$1.69

44

HOLDER,CARBURETOR

16065-1005

Unavailable

45

RING-SNAP

92036-018

$3.89

46

CLAMP,CARBURETOR HLDR

92037-116

$14.66

47

SCREW-PAN-CROS

220B0535

$3.70

48

O RING,9MM

670B1509

$3.65
