Description

Price

1

BODY,AIR CLEANER

11011-1047

Unavailable

1

CASE-AIR FILTER

11011-1059

Unavailable

2

CAP,AIR CLEANER CASE

11012-1125

Unavailable

3

ELEMENT,AIR CLNR

11013-1031

Unavailable

3

ELEMENT,AIR CLNR

11013-1036

Unavailable

4

COVER,AIR FILTER,F.BK

14025-1192-21

Unavailable

4

COVER,AIR FILTER,F.BK

14025-1192-21

Unavailable

5

DUCT,AIR CLEANER

14073-1038

$31.14

6

SCREW PAN HEAD 6X12

220B0612

Unavailable

7

SCREW-PAN-CROS,6X16

220B0616

$2.84

7

SCREW PAN HEAD 6X18

220B0618

$3.67

8

NUT,AIR CLEANER CAP

92016-062

$4.78

9

WASHER,6.5X20X1.6

92022-125

$1.40

10

CLAMP

92037-068

$11.91

11

SCREW PAN HEAD 6X35

220B0635

$1.63

12

CLAMP,AIR CLANER DUC

92037-1186

Unavailable

13

SCREW,6X14,WHITE

92009-1287

$2.55

14

SCREW-PAN-CROS,6X16

220B0616

$2.84

14

SCREW PAN HEAD 6X22

220B0622

$3.71

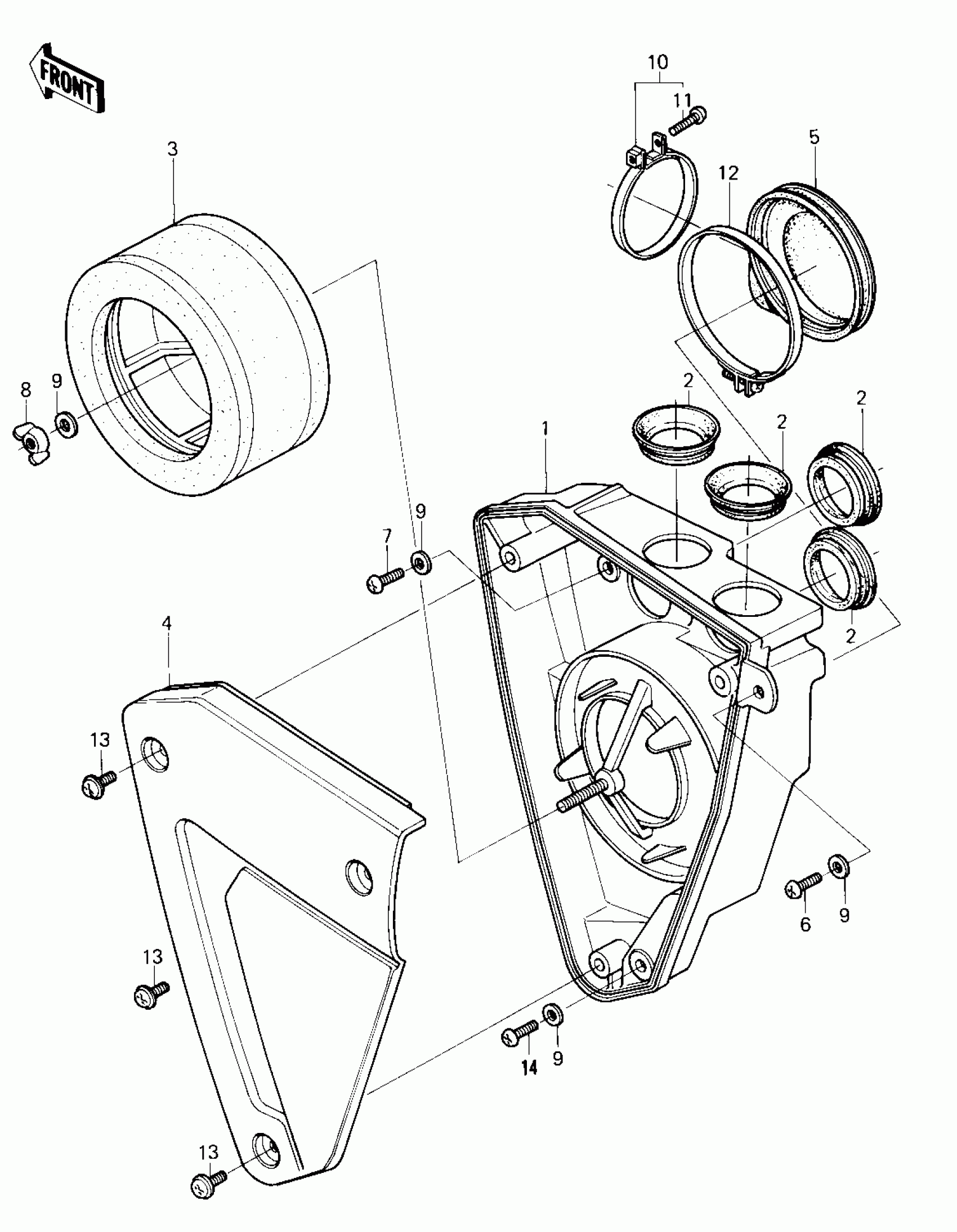

Kawasaki KX420 AIR CLEANER Diagram

BODY,AIR CLEANER

CASE-AIR FILTER

CAP,AIR CLEANER CASE

ELEMENT,AIR CLNR

ELEMENT,AIR CLNR

COVER,AIR FILTER,F.BK

COVER,AIR FILTER,F.BK

DUCT,AIR CLEANER

SCREW PAN HEAD 6X12

SCREW-PAN-CROS,6X16

SCREW PAN HEAD 6X18

NUT,AIR CLEANER CAP

WASHER,6.5X20X1.6

CLAMP

SCREW PAN HEAD 6X35

CLAMP,AIR CLANER DUC

SCREW,6X14,WHITE

SCREW-PAN-CROS,6X16

SCREW PAN HEAD 6X22
