1976 Kawasaki KX400-A2 Transmission/change Drum Diagram

← All diagrams

Find the part on the Transmission/change Drum diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

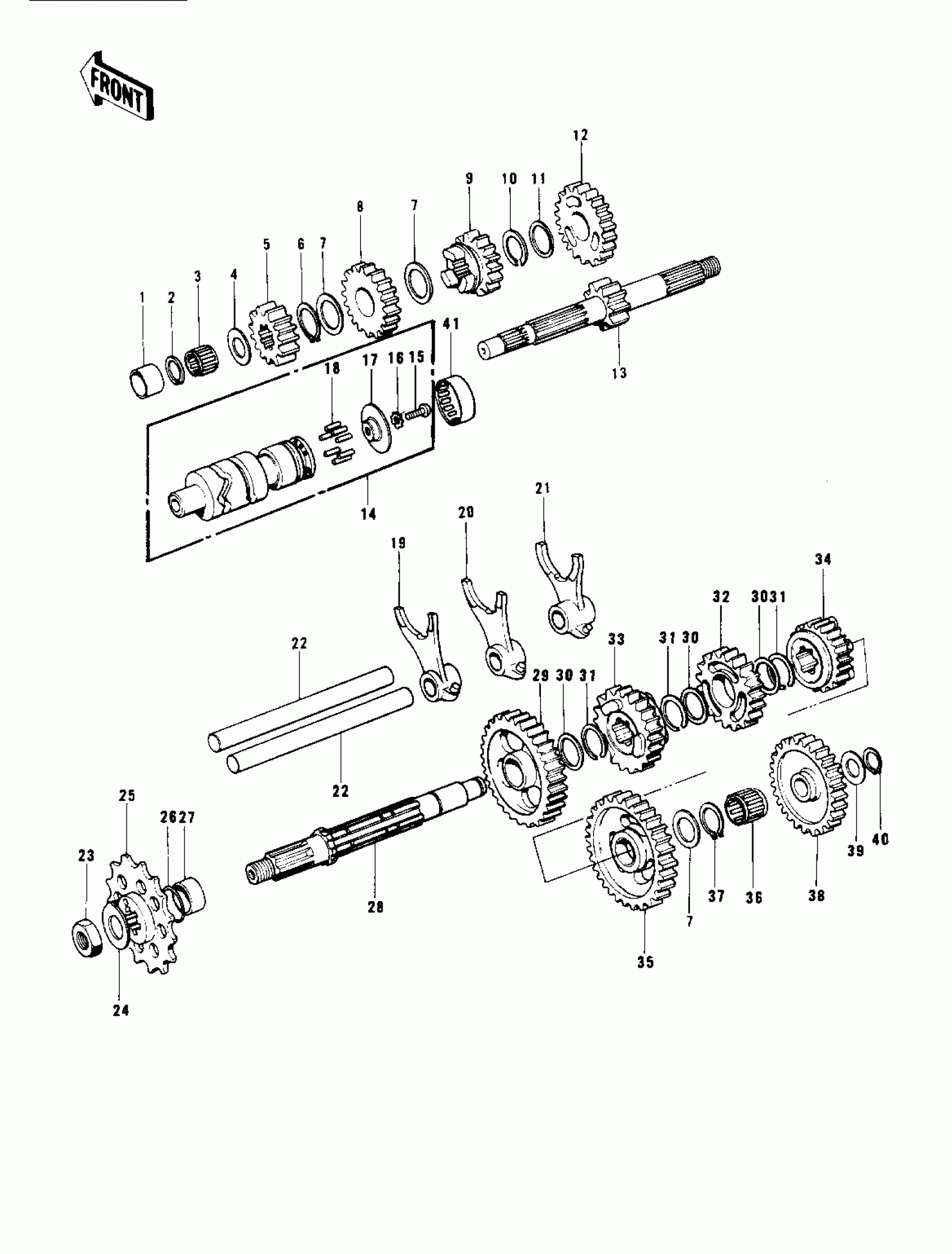

1976 Kawasaki KX400-A2 Transmission/change Drum Diagram

#

Description
Price
Status
Order Qty

1

BUSHING,23X30X13

92028-132

Out of stock

2

CIRCLIP 17MM

92033-009

Out of stock

3

BEARING,BALL,KT17231

92046-035

Out of stock

4

WASHER,PLAIN

92022-281

Out of stock

5

2ND GEAR,DRIVE,13T

13130-042

Out of stock

6

RING-SNAP,20MM

92033-015

Out of stock

7

WASHER,20.5X25.5X0.5

92022-252

Out of stock

8

4TH GEAR,DRIVE 16T

13134-028

Out of stock

9

3RD GEAR,DRIVE,15T

13132-041

Out of stock

10

CIRCLIP

92033-027

Out of stock

11

WASHER

92022-254

Out of stock

12

TOP GEAR,DRIVE,17T

13136-054

Out of stock

13

SHAFT,DRIVE,10T

13127-052

Out of stock

14

DRUM ASSY,GEAR SHIFT

13239-015

Out of stock

15

SCREW-PAN-CROS,6X14

220B0614

Out of stock

16

WASHER LOCK 6MM

464H0600

Out of stock

17

HOLDER,CHANGE DRUM PIN

13142-014

Out of stock

18

PIN,DOWEL,4X16.8

92042-029

Out of stock

19

FORK,SELECTOR

13140-055

Out of stock

20

FORK,SELECTOR

13140-056

Out of stock

21

FORK,SELECTOR,4TH&TOP

13140-072

Out of stock

22

ROD,CLUTCH RELEASE

13209-012

Out of stock

23

NUT,18MM

92015-019

Out of stock

24

WASHER,LOCK,18MM

92024-067

Out of stock

25

ENGINE SPROCKET 15T

13144-050

Out of stock

25

ENGINE SPROCKET 14T

13144-051

Out of stock

26

RING-O

92055-035

Out of stock

27

COLLAR-ENG SPROKET

92027-163

Out of stock

28

SHAFT,OUTPUT

13128-039

Out of stock

29

2ND GEAR,OUTPUT,23T

13131-049

Out of stock

30

WASHER

92022-253

Out of stock

31

RING-SNAP,24MM

92033-026

Out of stock

32

3RD GEAR,OUTPUT SHAFT

13133-034

Out of stock

33

4TH GEAR,OUTPUT 19T

13135-034

Out of stock

33

4TH GEAR,OUTPUT 19T

13135-034

Out of stock

34

TOP GEAR,OUTPUT,18T

13137-036

Out of stock

35

LOW GEAR,OUTPUT,25T

13129-057

Out of stock

36

BEARING-NEEDLE,KT202614

92046-1170

Out of stock

37

CIRCLIP-TYPE-C,19MM

480J1900

Out of stock

38

IDLE GEAR

13073-010

Out of stock

39

WASHER-THRUST

92022-197

Out of stock

40

CIRCLIP-TYPE-C,16MM

480J1600

Out of stock

41

BEARING,NEEDLE,344012

92046-040

Out of stock
