1976 Kawasaki KX400-A2 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

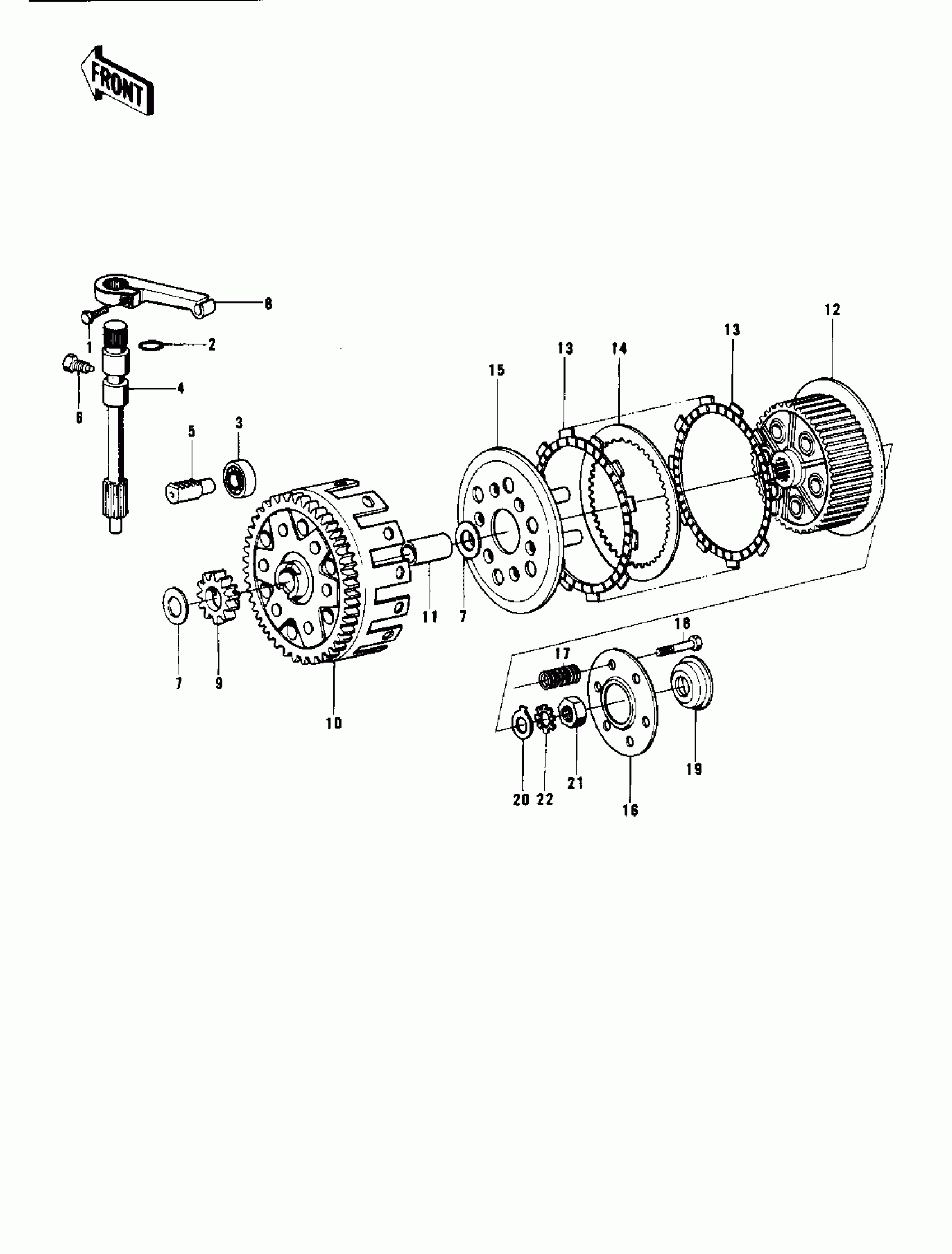

1976 Kawasaki KX400-A2 Clutch Diagram

#

Description
Price
Status
Order Qty

1

BOLT-UPSET

112G0618

Out of stock

2

O RING,10MM

670B2010

$1.31

In stock

3

BEARING-BALL,#627

92045-026

$18.51

In stock

4

SHAFT,CLUTCH RELEASE

13106-006

Out of stock

5

ROD,CLUTCH PUSH

13116-025

Out of stock

6

BOLT,CLUTCH RELEASE

92003-130

Out of stock

7

WASHER,17.3X30X1.4

92022-270

Out of stock

8

LEVER,CLUTCH RELEASE

13103-022

Out of stock

9

PINION,KICKSTARTER

13075-009

Out of stock

10

HOUSHING,CLUTCH

13095-038

Out of stock

11

BUSHING

92028-105

$19.73

In stock

12

HUB,CLUTCH

13087-035

Out of stock

13

PLATE,CLUTCH FRICTION

13088-038

Out of stock

14

PLATE,CLUTCH STEEL

13089-024

Out of stock

15

WHEEL,CLUTCH

13086-014

Out of stock

16

HOLDER,CLUTCH SPRING

13091-012

Out of stock

17

SPRING CLUTCH

92081-042

Out of stock

18

BOLT-UPSET

112G0618

Out of stock

19

PUSHER,CLUTCH RELEASE

13114-008

Out of stock

20

WASHER,

92024-052

Out of stock

21

NUT

92015-064

Out of stock

22

WASHER,LOCK,14MM

464H1400

Out of stock
