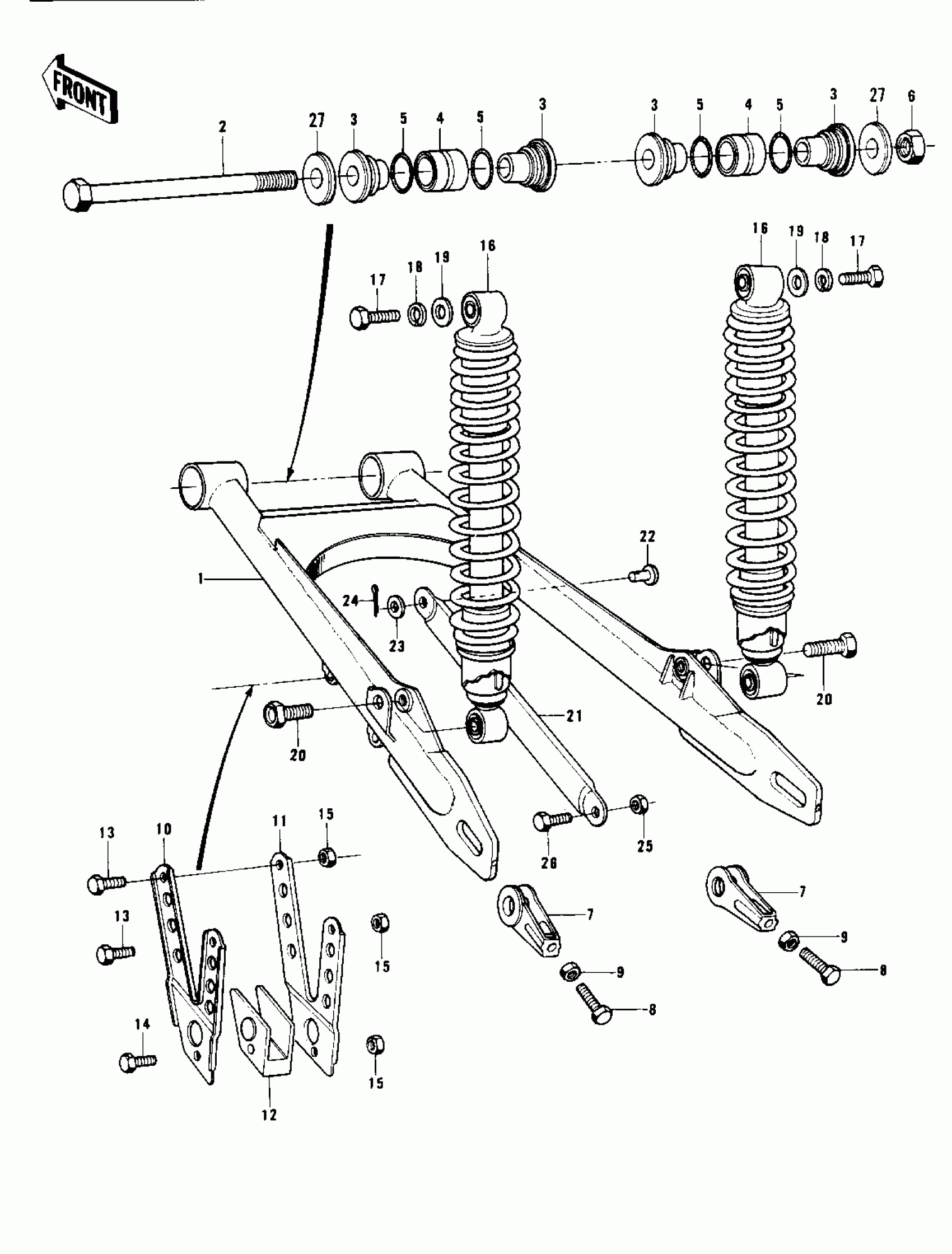

Kawasaki KX400-A2 SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
1
ARM,SWING
33001-079
Unavailable
2
SHAFT,SWING ARM PIVOT
33032-042
Unavailable
2
SHAFT,SWING ARM PIVOT
33032-048
Unavailable
3
SLEEVE,SWING ARM
33034-020
Unavailable
4
BEARING,NEEDLE
92046-047
Unavailable
5
"0" RING,22MM
670B3022
Unavailable
5
OIL SEAL
92056-008
Unavailable
6
NUT,12MM
92019-017
Unavailable
7
ADJUSTER,CHAIN
33040-067
Unavailable
8
BOLT,CHAIN ADJUSTER
92001-132
Unavailable
9
NUT,8MM
312G0800
Unavailable
10
GUARD,CHAIN,L.H
55020-017
Unavailable
11
GUARD,CHAIN,R.H
55020-018
Unavailable
12
GUARD,CHAIN
55020-019
Unavailable
13
BOLT 6X35
110R0635
Unavailable
14
BOLT-UPSET,6X40
112G0640
Unavailable
15
NUT,6MM
92019-019
Unavailable
16
SHOCK ABSBR RR
45014-104
Unavailable
16
SHOCK ABSBR RR
45014-112
Unavailable
17
BOLT-UPSET,6X12
112G0612
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
WASHER,7X24X1.6
92022-228
Unavailable
20
BOLT,HEX HEAD,12X35
92001-133
Unavailable
21
TORQUE LINK,RR BRAKE
43007-040
Unavailable
22
PIN,TORQUE LINK
92043-105
Unavailable
23
WASHER,10.5X20X1
92022-239
Unavailable
24
PIN-COTTER,2.0X20
550D2020
Unavailable
25
NUT,10MM
92019-016
Unavailable
26
BOLT,10X28
113G1028
Unavailable
27
WASHER PLAIN 12MM
411B1200
Unavailable
