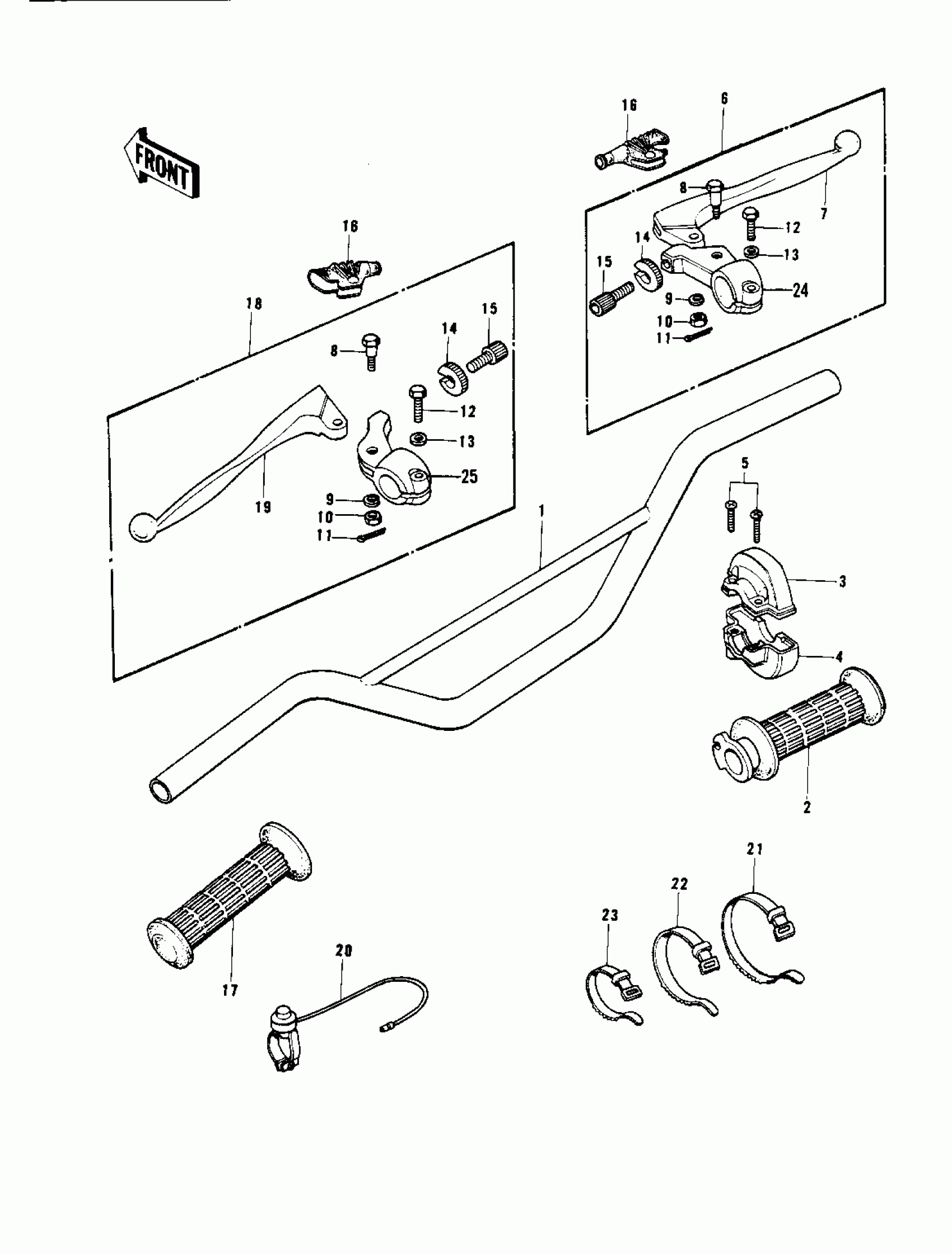

Kawasaki KX400-A2 HANDLEBAR Diagram
#
Description
Price
1
HANDLEBAR
46004-032
Unavailable
2
GRIP,THROTTLE
46019-037
Unavailable
3
CASE,R.H,GRIP,UPPER
32099-1014
Unavailable
4
HOUSING-ASSY-CONTROL
46091-5006
Unavailable
5
SCREW,5X18
220E0518A
Unavailable
6
LEVER ASSY,FRNT BRAKE
46021-032
Unavailable
7
FRONT BRAKE LEVER
46058-018
Unavailable
8
BOLT,HEX HEAD,6MM
92001-140
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
NUT CASTLE
320B0600
Unavailable
11
PIN-COTTER,1.6X15
550D1615
Unavailable
12
BOLT,6X22
110N0622
Unavailable
13
WASHER PLAIN 6MM
411B0600
Unavailable
14
NUT,CABLE ADJUST
46056-006
Unavailable
15
SCREW,CABLE ADJUST,8MM
46055-009
Unavailable
16
BOOT,LEVER HOLDER
49006-1017
Unavailable
17
RUBBER,L.H GRIP
46075-027
Unavailable
18
LEVER ASSY,CLUTCH
46076-048
Unavailable
19
LEVER, CLUTCH
46092-021
Unavailable
20
SWITCH,ASSY,ENG STOP
27010-1018
Unavailable
21
BAND,L=123
92072-030
Unavailable
21
BAND,L=123
92072-030
Unavailable
22
BAND,L=149
92072-031
Unavailable
22
BAND,L=186
92072-056
Unavailable
23
BAND-RUBBER
92072-035
Unavailable
23
BAND,L=149
92072-031
Unavailable
24
HOLDER,FR BRAKE LEVER
46060-010
Unavailable
25
HOLDER,CLUTCH LEVER
46094-014
Unavailable
