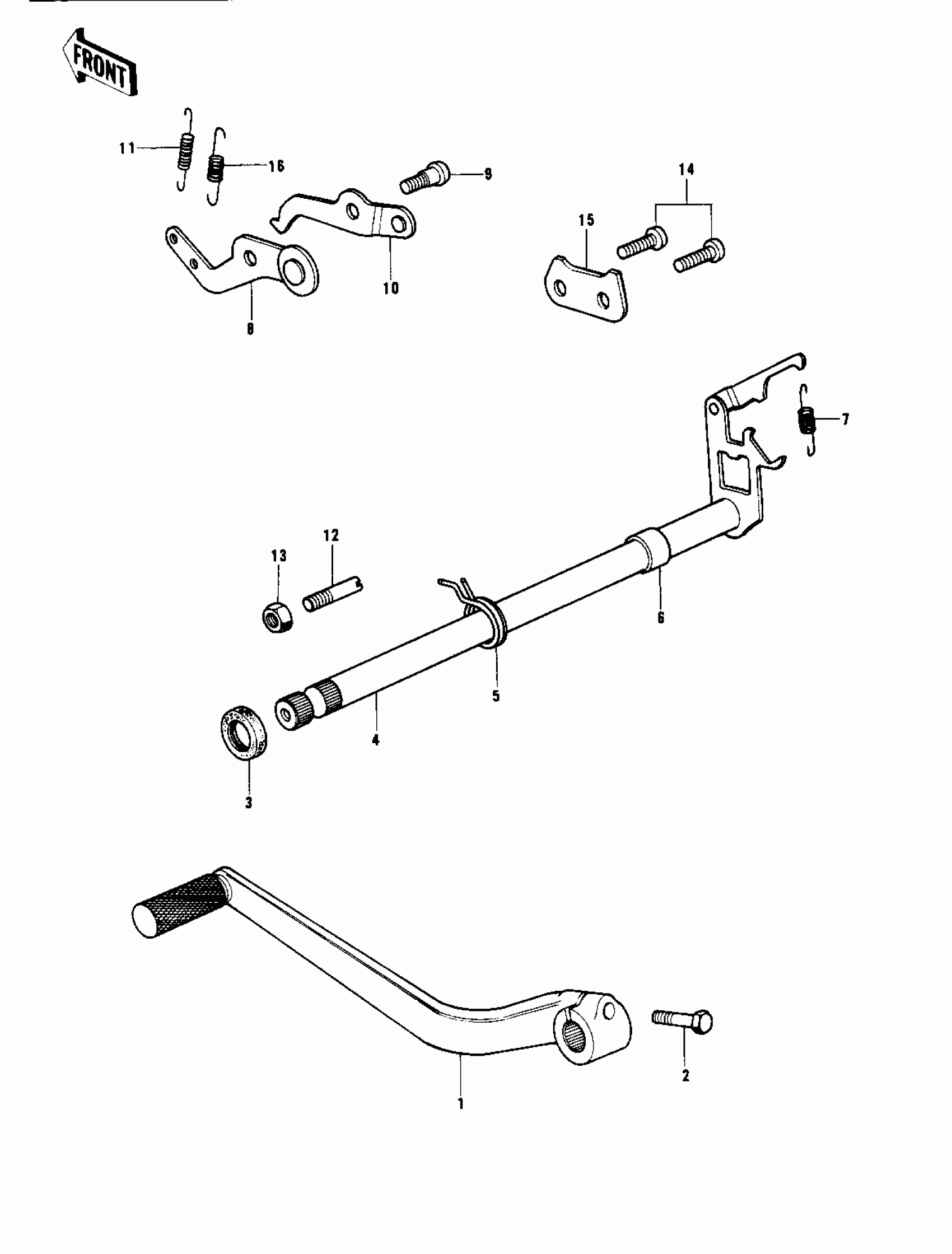

Kawasaki KX400-A2 GEAR CHANGE MECHANISM Diagram

#

Description

Price

1

PEDAL,GEAR CHANGE

13156-061

Unavailable

2

BOLT-UPSET,6X20

112G0620

Unavailable

3

SEAL-OIL,TB13225.5

92051-005

Unavailable

4

LEVER ASSY GEAR CHNG

13161-031

Unavailable

5

SPRING,TENSION

92081-1129

Unavailable

5

SPRING,TENSION

92081-1129

Unavailable

6

COLLAR

92027-189

Unavailable

7

SPRING,CHANGE LEVER

92144-1720

Unavailable

8

LEVER ASSY,GEAR CHNG

13236-008

Unavailable

9

SCREW,6MM

92011-023

Unavailable

10

LEVER ASSY,GEAR CHNG

13236-005

Unavailable

11

SPRING

92081-119

Unavailable

12

BOLT,RETURN SPRING

92001-1401

Unavailable

13

NUT 8MM

312B0800

Unavailable

14

SCREW-PAN-CROS,6X14

220B0614

Unavailable

15

PLATE,CHANGE DRUM

13169-012

Unavailable

16

SPRING-COIL

92081-091

Unavailable
