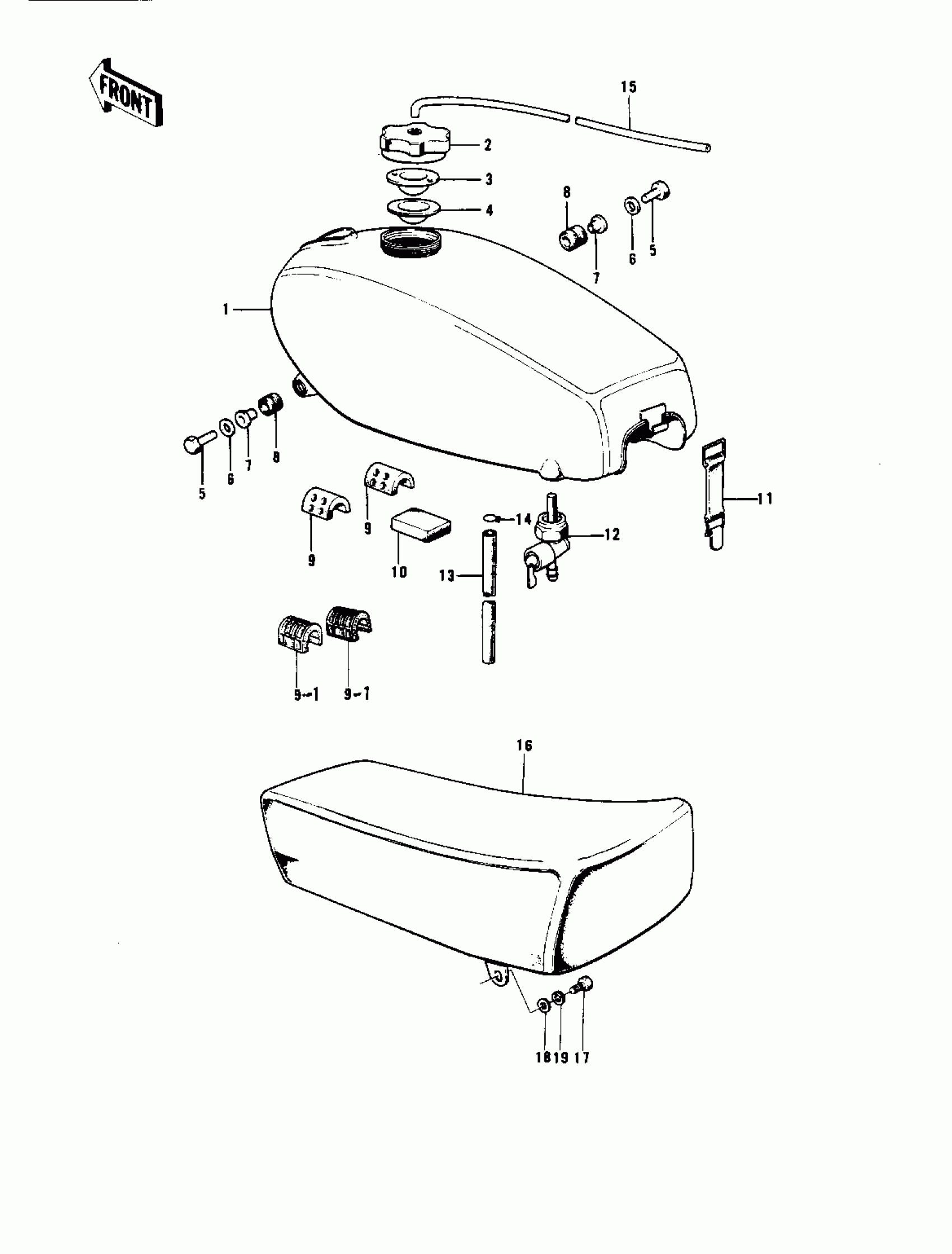

Kawasaki KX400-A2 FUEL TANK/SEAT Diagram
#
Description
Price
1
TANK-FUEL,LIME GREEN
51001-095-2G
Unavailable
1
TANK-FUEL,C.LIME
51001-095-3X
Unavailable
2
CAP,FUEL TANK
51049-1002
Unavailable
2
CAP,FUEL TANK
51049-1002
Unavailable
3
WASHER,FUEL TANK CAP
51058-004
Unavailable
4
GASKET,FUEL TANK CAP
51059-012
Unavailable
5
BOLT-UPSET
112G0630
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
COLLAR,FUEL TANK
92027-216
Unavailable
8
DAMPER
92075-197
Unavailable
9
DAMPER RUBBER
92075-198
Unavailable
9-1
DAMPER RUBBER,FL TNK
92075-215
Unavailable
10
MAT FUEL TANK
51067-002
Unavailable
11
BAND,FUEL TANK
92072-076
Unavailable
11
BAND,FUEL TANK
92072-076
Unavailable
12
FUEL COCK ASSY
51023-033
Unavailable
13
HOSE,FUEL
92059-144
Unavailable
14
CLAMP,TUBE
92037-072
Unavailable
15
TUBE-PVC,5X280
700Q05280
Unavailable
16
SEAT-ASSY
53001-113
Unavailable
17
BOLT HEX HEAD 8X16
110N0816
Unavailable
18
WASHER PLAIN 8MM
411B0800
Unavailable
19
WASHER SPRING 8MM
461F0800
Unavailable
