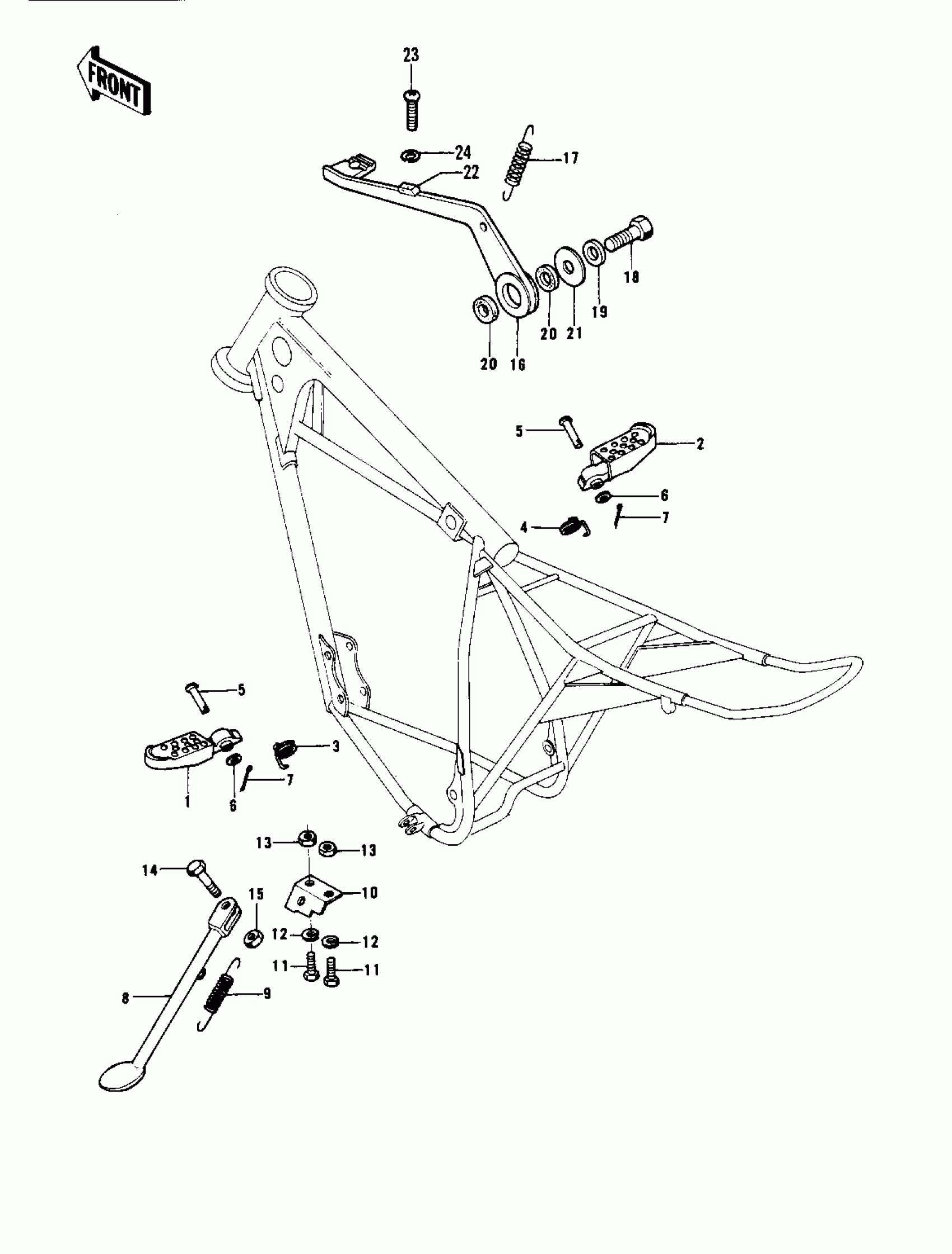

Kawasaki KX400-A2 FOOTRESTS/STAND/BRAKE PEDAL Diagram
#
Description
Price
1
BAR,FOOTREST,L.H
34028-025
Unavailable
2
BAR,FOOTREST,R.H
34028-026
Unavailable
3
SPRING,L.H,FOOTREST
92081-1254
Unavailable
4
SPRING,R.H,FOOTREST
92081-1255
Unavailable
5
PIN,8X35.5
92043-115
Unavailable
6
WASHER PLAIN 8MM
410B0800
Unavailable
7
PIN-COTTER,2.5X15
550D2515
Unavailable
8
STAND-SIDE
34024-045
Unavailable
9
SPRING,STAND
34025-008
Unavailable
10
BRACKET,SIDE STAND
34008-009
Unavailable
11
BOLT-SMALL-UPSET,8X22
115B0822
Unavailable
12
WASHER SPRING 8MM
461F0800
Unavailable
13
NUT 8MM
312B0800
Unavailable
14
BOLT,10X28
113G1028
Unavailable
15
NUT-HEX-FINE,10MM
315B1000
Unavailable
16
PEDAL,BRAKE
43077-005
Unavailable
17
SPRING,BRAKE PEDAL
43005-035
Unavailable
18
BOLT-UPSET 6X14
112B0614
Unavailable
19
WASHER SPRING 6MM
461F0600
Unavailable
20
O RING,16MM
670B2016
Unavailable
21
WASHER,PLAIN,6MM
92022-284
Unavailable
22
DAMPER RUBBER BRK PED
92075-267
Unavailable
23
SCREW PAN HEAD 5X10
220B0510
Unavailable
24
WASHER SPRING 5MM
461F0500
Unavailable
