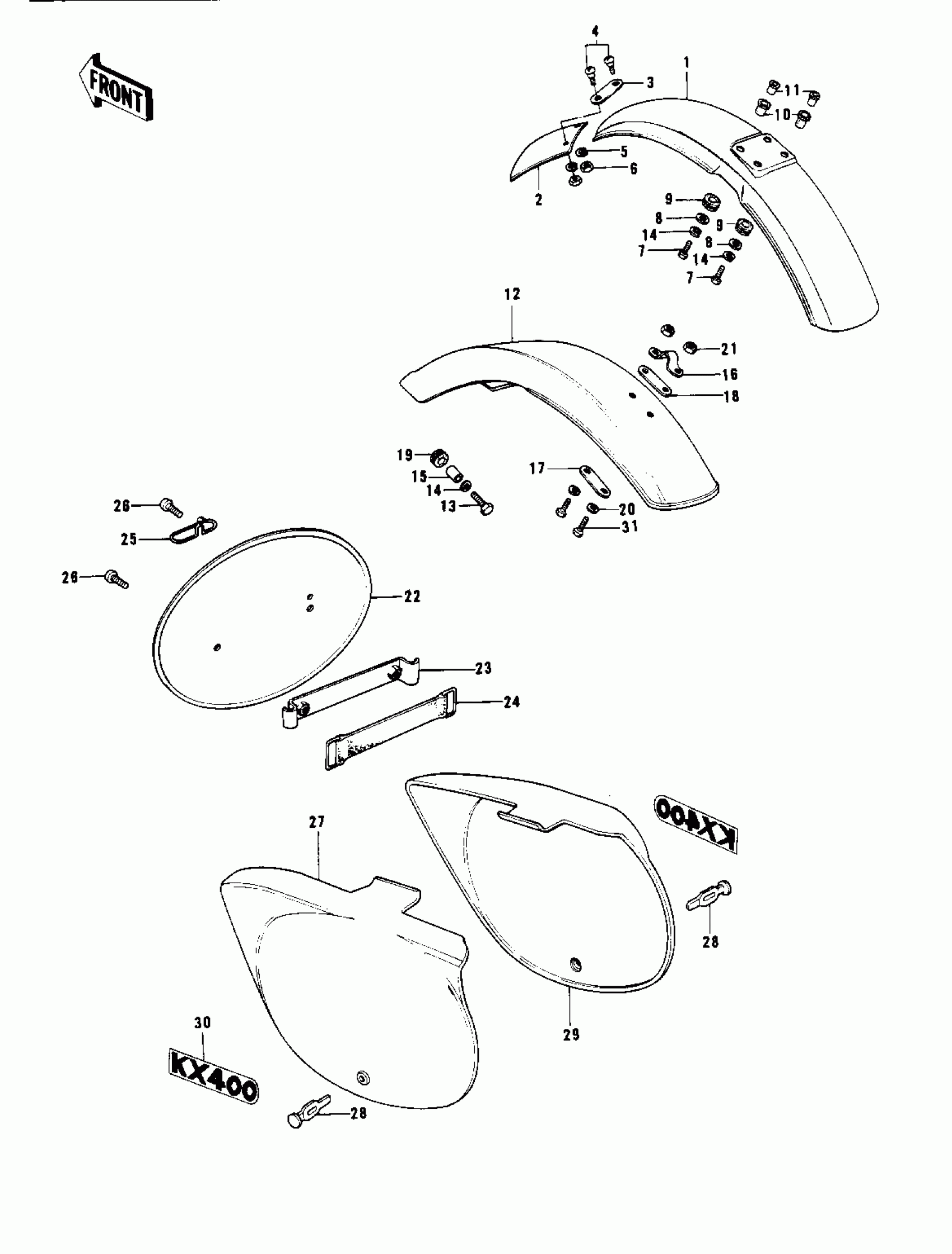

Kawasaki KX400-A2 FENDERS/SIDE COVERS/NUMBER PLATE Diagram
#
1
FENDER-FR
35004-096
Unavailable
1
FENDER-FR,BLACK
35004-096-10
Unavailable
2
FLAP,FRONT FENDER
35019-005
Unavailable
3
PLATE,FENDER FLAP
35020-012
Unavailable
4
BOLT,5X12
92001-134
Unavailable
5
WASHER SPRING 5MM
461F0500
Unavailable
6
NUT-HEX
311B0500
Unavailable
7
BOLT-UPSET
112G0625
Unavailable
8
WASHER,7X24X1.6
92022-228
Unavailable
9
DAMPER,FENDER
92075-121
Unavailable
10
DAMPER RUBBER
92075-103
Unavailable
11
COLLAR
92027-194
Unavailable
12
FENDER-RR,BLACK
35022-132-10
Unavailable
12
FENDER-RR,BLACK
35022-132-10
Unavailable
13
BOLT 6X22
112B0622
Unavailable
13
BOLT-UPSET 6X14
112B0614
Unavailable
14
WASHER SPRING 6MM
461F0600
Unavailable
15
COLLAR
92027-122
Unavailable
16
BRACKET,REAR FENDER
35025-027
Unavailable
17
PLATE,REAR FENDER
35041-002
Unavailable
18
DAMPER RUBBER,FENDER
92075-245
Unavailable
19
DAMPER RUBBER
92075-118
Unavailable
20
WASHER PLAIN 6MM
411B0600
Unavailable
21
NUT,6MM
92019-019
Unavailable
22
PLATE,FRONT NUMBER
58029-031
Unavailable
23
BRACKET,NUMBER PLATE
58030-008
Unavailable
24
BAND,L=142.1
92072-006
Unavailable
25
CLAMP,NUMBER PLATE
92037-158
Unavailable
26
SCREW,6X10,WHITE
92009-1286
Unavailable
27
COVER,L.HSIDE
36001-051
Unavailable
28
BAND,SIDE COVER
92072-069
Unavailable
29
COVER,RH.SIDE
36007-045
Unavailable
30
EMBLEM,SIDE COVER
56018-208
Unavailable
30
EMBLEM,SIDE COVER
56018-229
Unavailable
31
BOLT 6X22
112B0622
Unavailable
