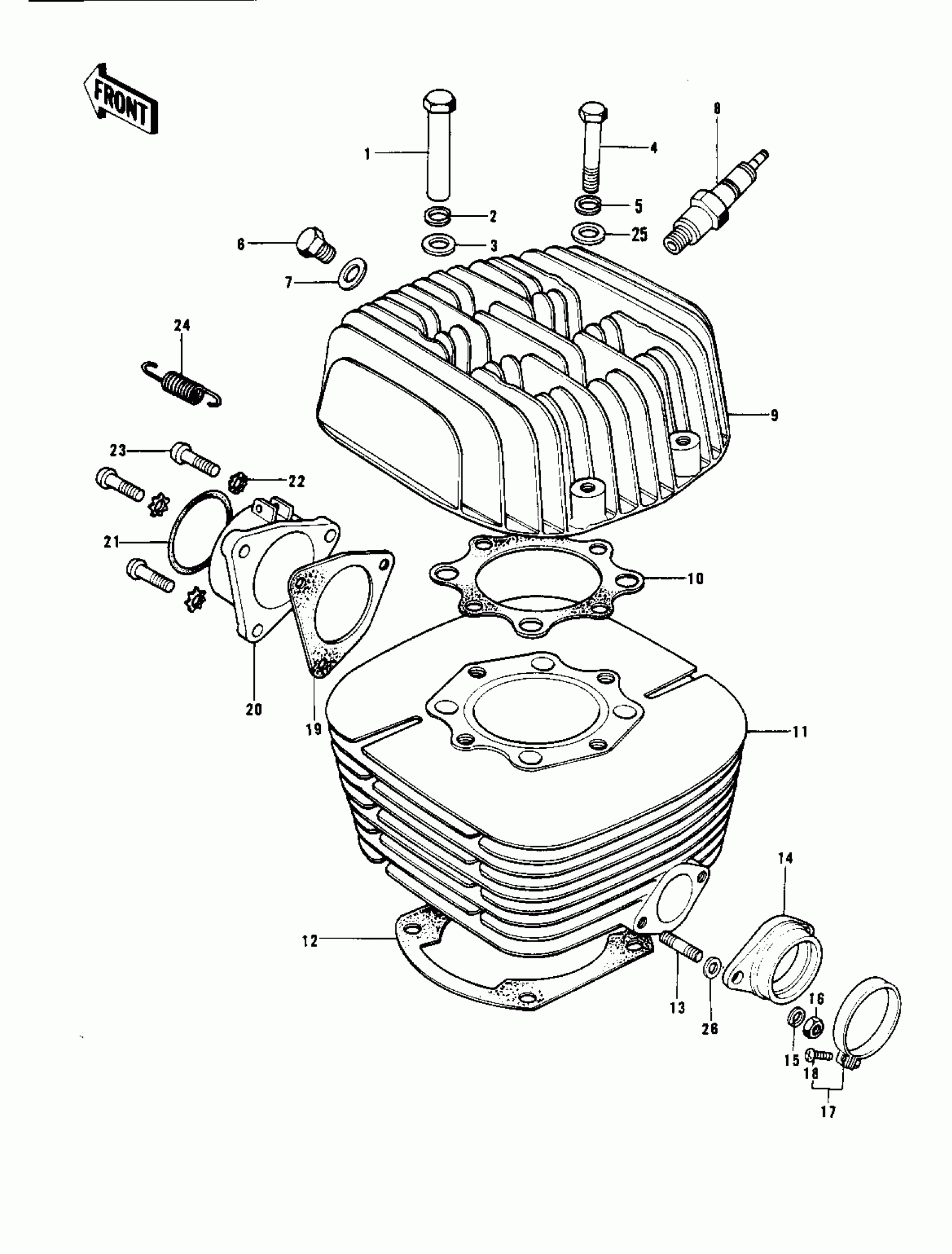

Kawasaki KX400-A2 CYLINDER HEAD/CYLINDER Diagram
#
Description
Price
1
NUT,CYLINDER HEAD
92015-065
Unavailable
2
WASHER SPRING 14MM
461F1400
Unavailable
3
WASHER PLAIN 14MM
411B1400
Unavailable
4
BOLT,10X45
92001-1182
Unavailable
5
WASHER SPRING 8MM
461F0800
Unavailable
6
PLUG,CYLINDER HEAD
92067-021
Unavailable
7
GASKET-CYL HEAD PLUG
92065-068
Unavailable
8
Roadster Spyder RT-LTD (SE6), Cognac | North America
B9EV
Unavailable
9
CYLINDER HEAD,F.BLACK
11001-105-21
Unavailable
10
GASKET,CYLINDER HEAD
11004-070
Unavailable
11
CYLINDER,FLAT BLACK
11005-148-21
Unavailable
12
GASKET,CYLINDER BASE
11009-035
Unavailable
13
BOLT-STUD,8X20
172G0820
Unavailable
13
STUD,8X16
172G0816
Unavailable
14
HOLDER,CARBURETOR
16065-043
Unavailable
15
WASHER SPRING 8MM
461F0800
Unavailable
16
NUT-HEX-SMALL,8MM
318B0800
Unavailable
17
CLAMP,AIR CLEANER
92037-160
Unavailable
18
SCREW PAN HEAD 6X30
220E0630
Unavailable
19
GASKET,EXHAUST HOLDER
18050-006
Unavailable
19
GASKET,EXHAUST PIPE
18050-010
Unavailable
20
HOLDER,EXHAUST PIPE
18062-008
Unavailable
21
UNAVAILABLE IN PRICE BOOK
56019-102
Unavailable
22
WASHER LOCK 6MM
464H0600
Unavailable
23
SCREW PAN HEAD 6X25
220B0625
Unavailable
23
SCREW PAN HEAD 6X22
220B0622
Unavailable
24
SPRING-CONNECTOR
18071-003
Unavailable
25
WASHER PLAIN 8MM
410B0800
Unavailable
26
GASKET,CARB HOLDER
16062-021
Unavailable
