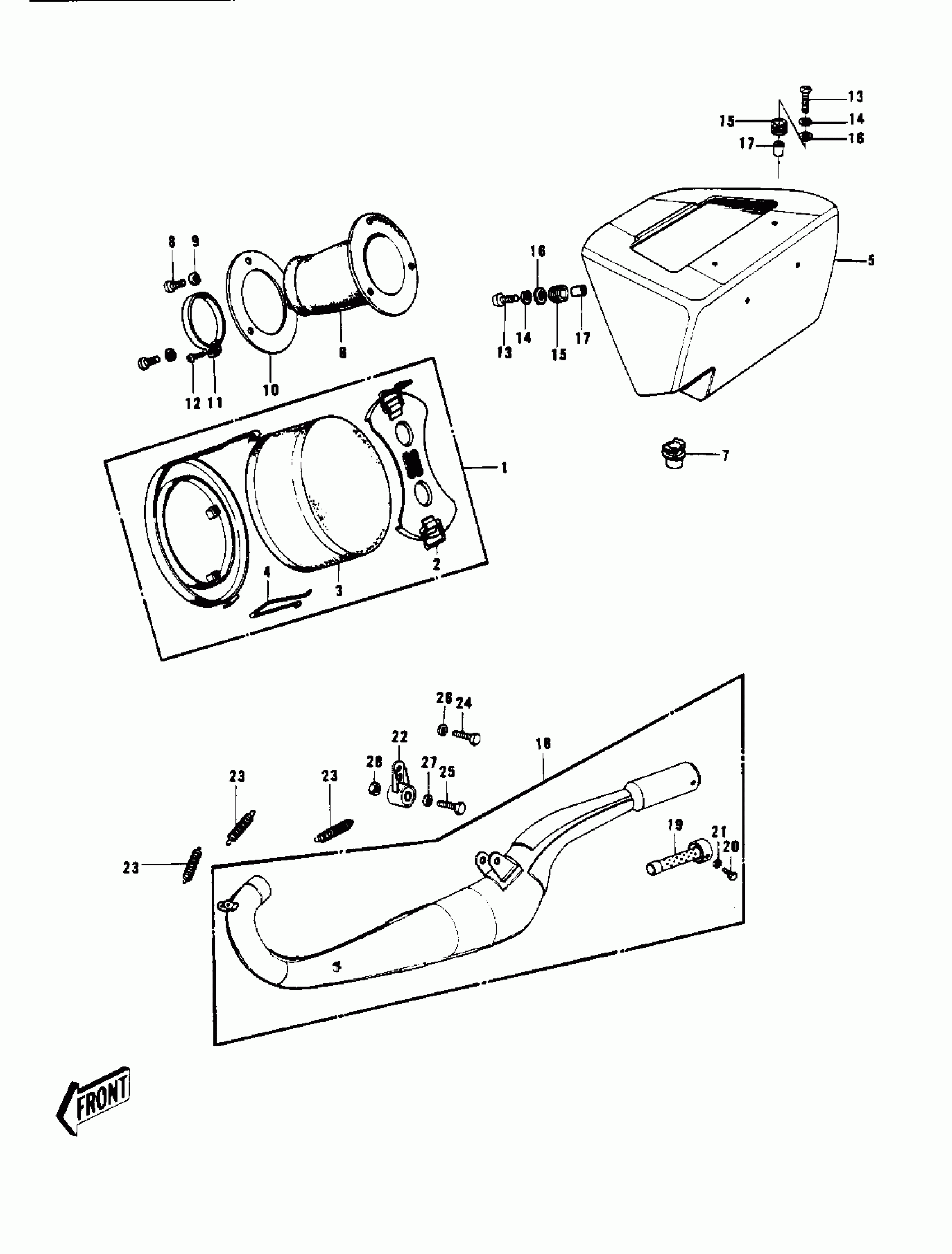

Kawasaki KX400-A2 AIR CLEANER/MUFFLER Diagram
#
Description
Price
1
AIR CLEANER ASSY
11010-073
Unavailable
2
CAP,AIR CLEANER
11012-040
Unavailable
3
ELEMENT,AIR,CLNR
11013-043
Unavailable
4
FASTNER,AIR CLEANER
92079-007
Unavailable
5
BODY,AIR CLEANER
11011-047
Unavailable
6
PIPE,AIR INLET
11015-048
Unavailable
7
PLUG,AIR CLEANER BODY
92067-019
Unavailable
8
SCREW-PAN-CROS,6X16
220B0616
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
HOLDER,AIR CLEANER
92095-013
Unavailable
11
CLAMP
92037-068
Unavailable
12
SCREW PAN HEAD 6X35
220B0635
Unavailable
13
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
13
BOLT-UPSET,6X20
112G0620
Unavailable
14
WASHER SPRING 6MM
461F0600
Unavailable
15
DAMPER RUBBER
92075-076
Unavailable
16
WASHER,6.5X20X1.6
92022-125
Unavailable
17
COLLAR
92027-194
Unavailable
18
MUFFLER ASSY,F.BLACK
18002-134-21
Unavailable
19
BAFFLE TUBE
18033-074
Unavailable
20
BOLT,6X10
112G0610
Unavailable
21
WASHER SPRING 6MM
461F0600
Unavailable
22
BRACKET,MUFFLER
18024-026
Unavailable
23
SPRING,MUFFLER
18071-006
Unavailable
24
BOLT HEX HEAD 8X16
110N0816
Unavailable
25
BOLT,HEX HEAD,8X38
110N0838
Unavailable
26
WASHER SPRING 8MM
461F0800
Unavailable
27
WASHER PLAIN 8MM
410B0800
Unavailable
28
NUT,8MM
92019-018
Unavailable
