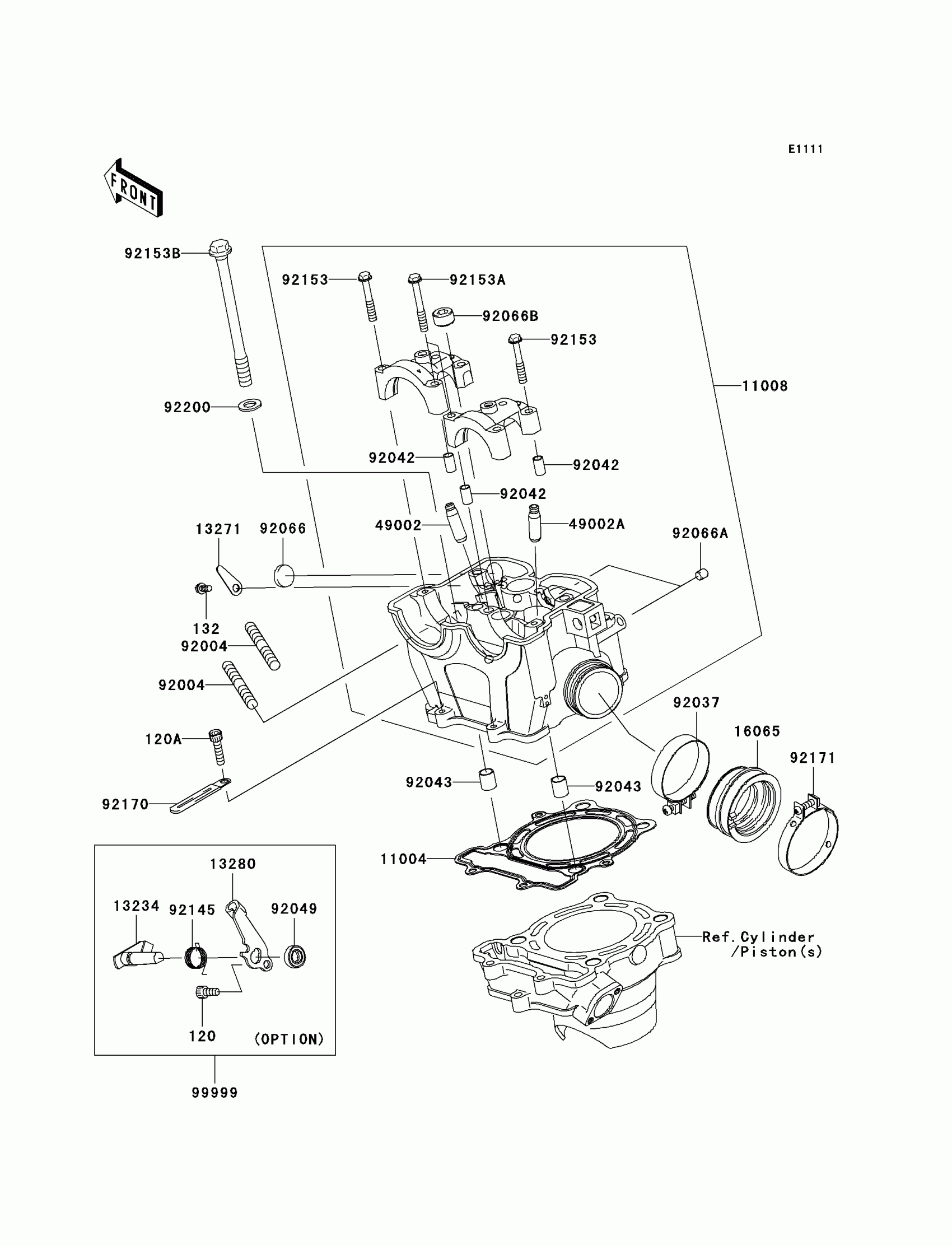

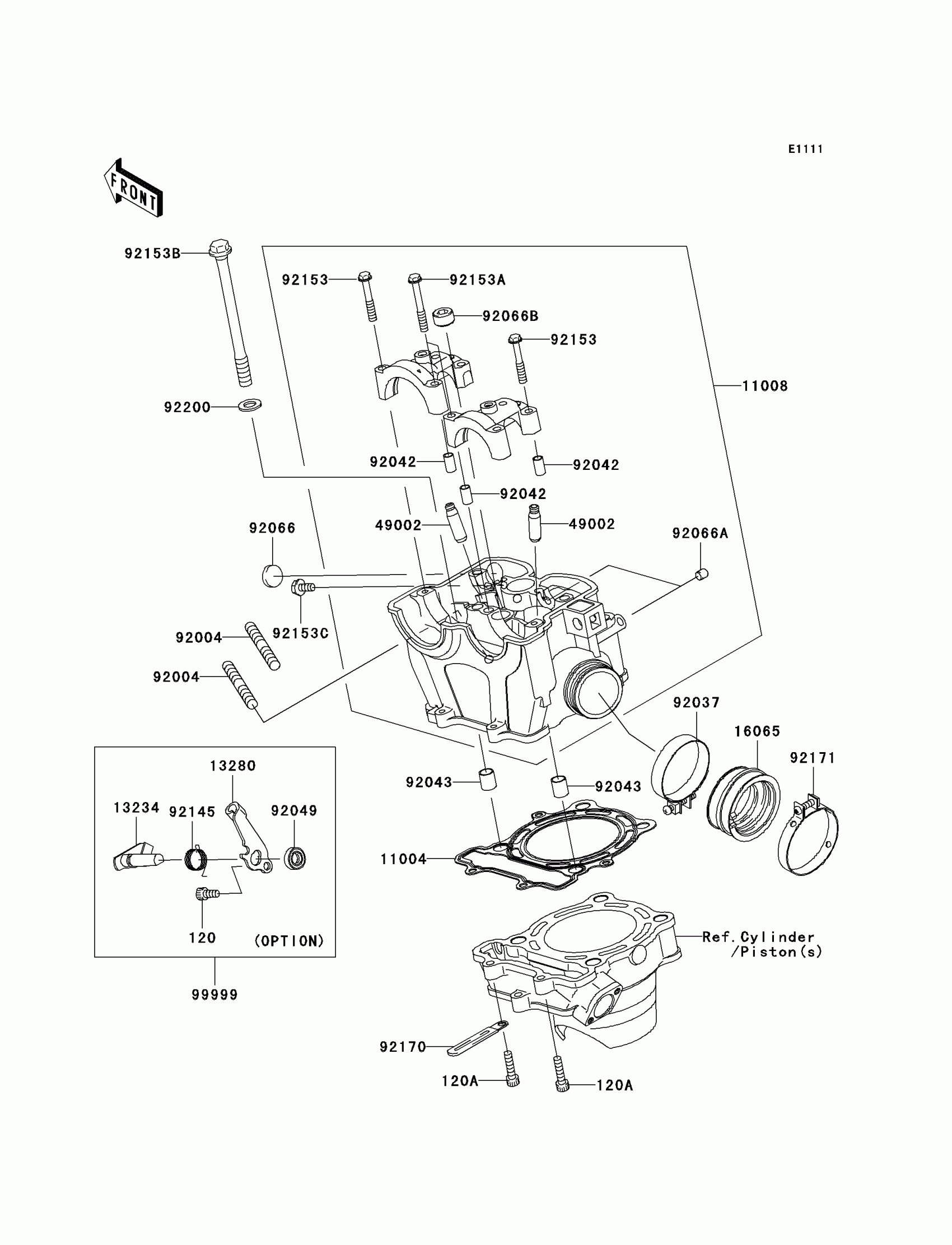

Kawasaki KX250F Cylinder Head Diagram
#
Description
Price
120
BOLT-SOCKET,6X12
120P0612
$1.60
120A
BOLT-SOCKET,6X25
120P0625
$1.92
132
BOLT-FLANGED-SMALL,6X12
132L0612
$1.92
11004
GASKET-HEAD
11004-0003
Unavailable
11008
HEAD-COMP-CYLINDER
11008-0116
$948.58
13234
SHAFT-COMP,DECOMP
13234-0009
$31.98
13271
PLATE
13271-0675
$3.39
13280
HOLDER,DECOMP
13280-0038
$7.60
16065
HOLDER-CARBURETOR
16065-0041
$19.72
49002
GUIDE-VALVE
49002-0003
Unavailable
49002A
GUIDE-VALVE
49002-0016
Unavailable
92004
STUD,8X22
92004-1249
$3.87
92037
CLAMP
92037-1523
$12.35
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043
PIN,10.1X12X14
92043-4009
$6.22
92049
SEAL-OIL
92049-1196
$6.22
92066
PLUG,4X18
92066-0024
$4.52
92066A
PLUG,OIL LINE,7.2X8
92066-1012
$6.51
92066B
PLUG,10X16.6
92066-3777
$5.54
92145
SPRING
92145-0048
$3.69
92153
BOLT,6X38
92153-0338
$3.32
92153A
BOLT,6X45
92153-0339
$3.32
92153B
BOLT,10X122
92153-0341
$14.34
92170
CLAMP
92170-1514
$4.31
92171
CLAMP
92171-0314
$3.53
92200
WASHER,10.5X19X2.3
92200-1339
$4.13
99999
KIT.,MANUAL DECOMP
99999-0023
$44.39
