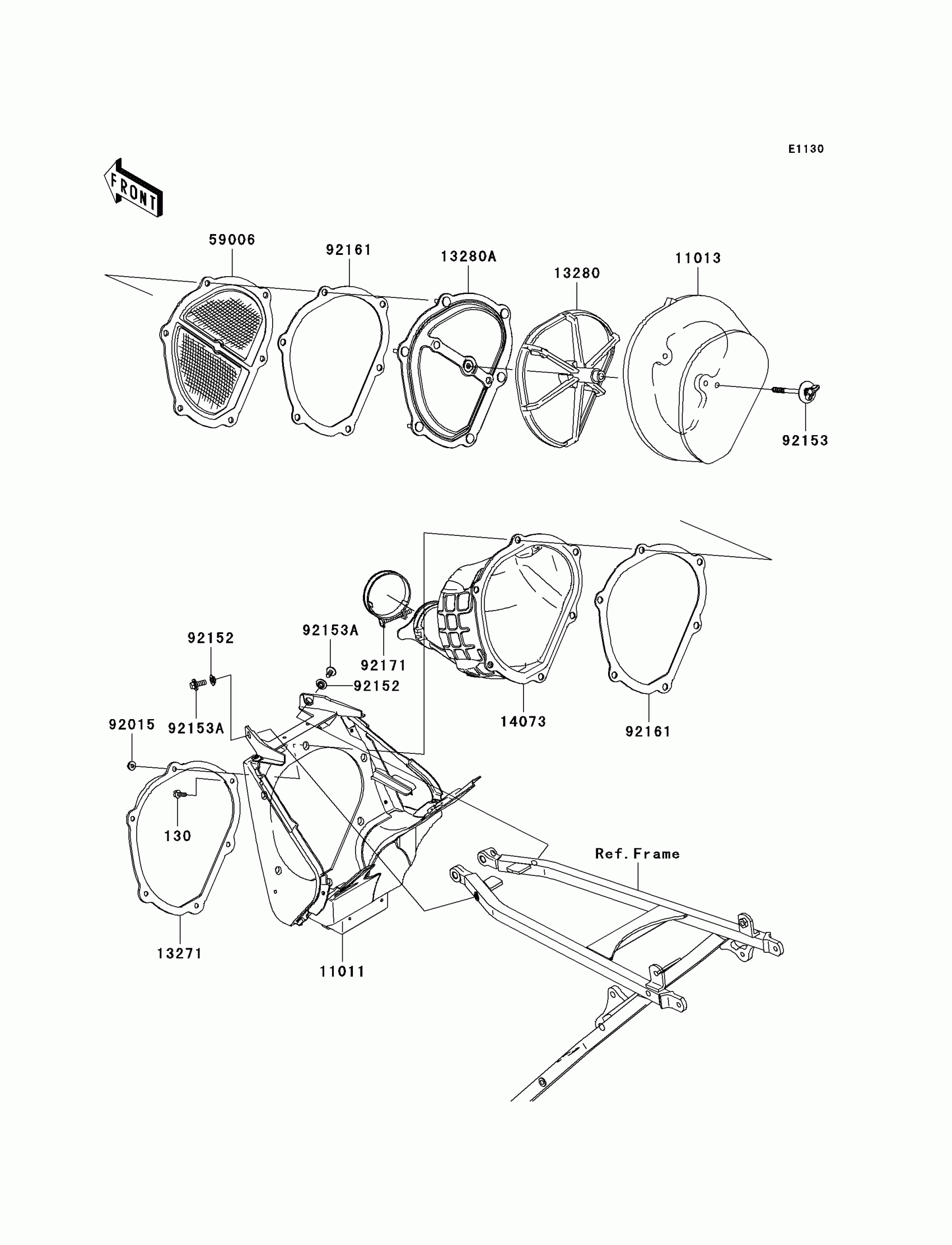

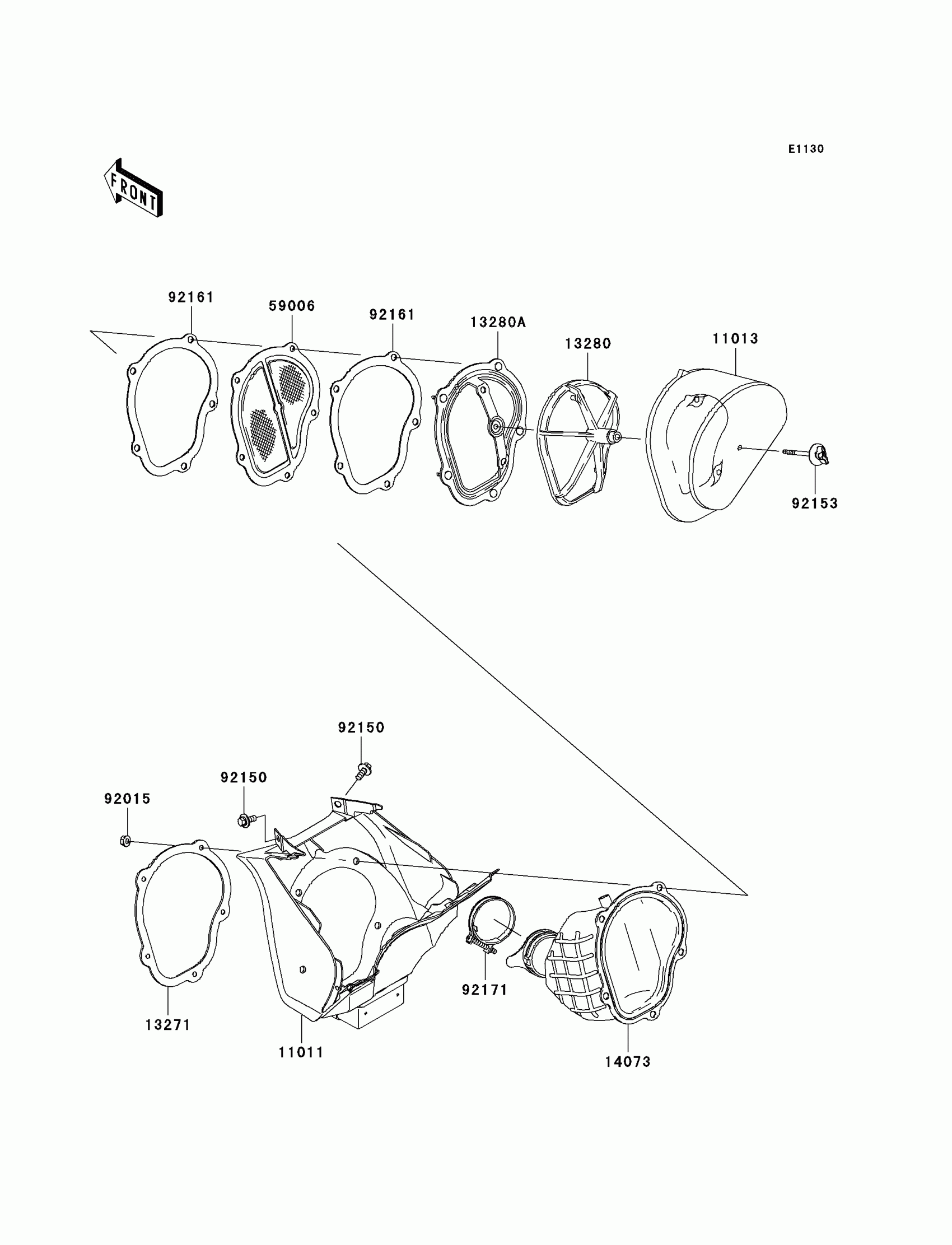

Kawasaki KX250F Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER

11011-0026

Unavailable

11013

ELEMENT-AIR FILTER

11013-0008

$77.74

13271

PLATE,DUCT FITTING

13271-0059

$25.59

13280

HOLDER,ELEMENT

13280-0057

$50.14

13280A

HOLDER

13280-0058

$66.48

14073

DUCT,AIR FILTER

14073-0024

$55.67

59006

ARRESTER-FLAME

59006-0005

$53.06

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92150

BOLT,FLANGED,6X16

92150-1506

$5.00

92153

BOLT,6X75

92153-0623

$9.30

92161

DAMPER

92161-0025

$32.48

92171

CLAMP,CARBURETOR-DUCT

92171-0087

$13.87
