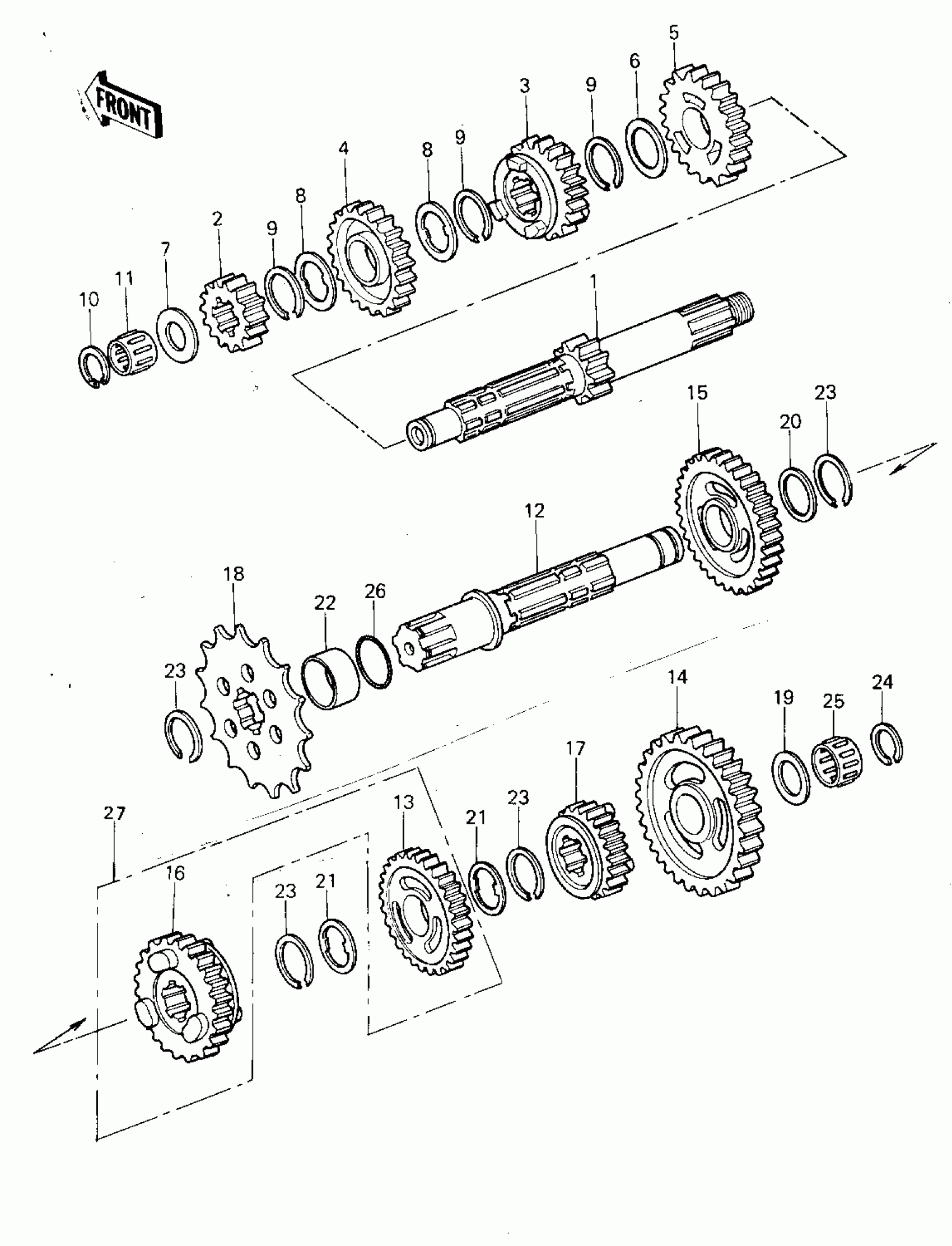

Kawasaki KX250 TRANSMISSION Diagram
#
Description
Price
1
SHAFT,DRIVE
13127-1022
Unavailable
2
2ND GEAR,DRIVE,16T
13129-1156
Unavailable
3
GEAR,INPUT 3RD,18T
13129-1956
Unavailable
4
4TH GEAR,DRIVE,25T
13129-1205
Unavailable
5
GEAR,INPUT TOP,24T
13129-1206
Unavailable
6
WASHER,22.3X27X0.5
92022-198
Unavailable
7
WASHER,PLAIN
92022-281
Unavailable
8
WASHER,TOOTHED,22.5X27X0.5
92024-039
Unavailable
9
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
10
RING-SNAP
92033-032
Unavailable
11
BEARING-NEEDLE
92046-1184
Unavailable
12
SHAFT,OUTPUT
13128-1025
Unavailable
13
GEAR-ASSY,OUTPUT
13101-5031
Unavailable
13
3RD GEAR,OUTPUT,25T
13129-1272
Unavailable
14
GEAR,OUTPUT LOW,32T
13129-1160
Unavailable
15
2ND GEAR,OUTPUT,27T
13129-1161
Unavailable
16
GEAR-ASSY,OUTPUT
13101-5031
Unavailable
16
4TH GEAR,OUTPUT,29T
13129-1273
Unavailable
17
GEAR,OUTPUT TOP,24T
13129-1164
Unavailable
18
ENGINE SPROCKET,14T
13144-1006
Unavailable
19
WASHER,20.5X30X1,STEEL
92022-112
Unavailable
20
WASHER,25.3X30X0.5
92022-159
Unavailable
21
WASHER,TOOTHED,22.5X31X0.5
92024-038
Unavailable
22
COLLAR-ENG SPROKET
92027-163
Unavailable
23
RING-SNAP,24MM
92033-026
Unavailable
24
RING-SNAP,18MM
92033-029
Unavailable
25
BEARING-NEEDLE,KT202614
92046-1170
Unavailable
26
RING-O
92055-035
Unavailable
27
GEAR-ASSY,OUTPUT
13101-5031
Unavailable
27
GEAR-ASSY,OUTPUT
13101-5031
Unavailable
