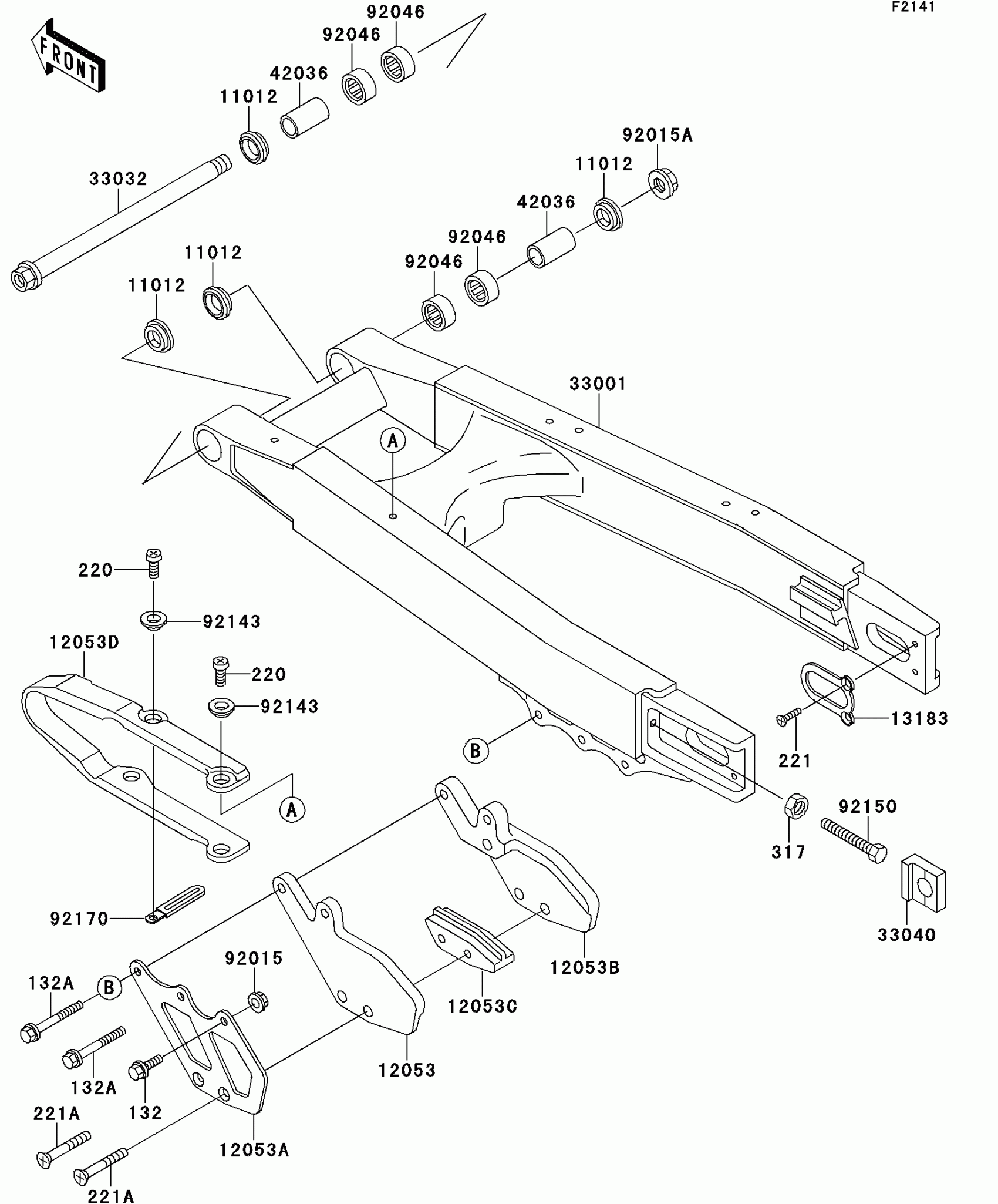

Kawasaki KX250 Swing Arm Diagram
#
Description
Price
11012
CAP,SWING ARM PIPOT
11012-1790
$25.41
12053
GUIDE-CHAIN,RR,INSIDE
12053-1234
$32.95
12053A
GUIDE-CHAIN,RR,OUTSIDE
12053-1235
$35.90
12053B
GUIDE-CHAIN,RR,OUTSIDE
12053-1236
$42.14
12053C
GUIDE-CHAIN,DRIVE,RR,INSIDE
12053-1270
$44.98
12053D
GUIDE-CHAIN,DRIVE,FR
12053-1278
Unavailable
13183
PLATE
13183-1867
Unavailable
132
BOLT-FLANGED-SMALL,6X16
132G0616
$1.47
132A
BOLT-FLANGED-SMALL,6X35
132G0635
$1.92
220
SCREW PAN HEAD 6X10
220B0610
$3.14
221
SCREW-CSK-CROS,5X10
221B0510
$3.41
221A
SCREW-CSK-CROS,6X45
221B0645
$4.12
317
NUT-HEX-SMALL,8MM
317G0800
$1.63
33001
ARM-COMP-SWING,SILVER NO.25
33001-1406-CE
$748.13
33032
SHAFT-SWING ARM
33032-1167
Unavailable
33040
ADJUSTER-CHAIN
33040-1129
$19.78
42036
SLEEVE,SWING ARM,L=43
42036-1289
Unavailable
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92015A
NUT,FLANGED,16MM
92015-1316
$24.01
92046
BEARING-NEEDLE,HK2212/8A
92046-1214
$26.48
92143
COLLAR
92143-1156
$6.22
92150
BOLT,8X55
92150-1385
$6.45
92170
CLAMP,CARBURETOR HOSE
92170-1113
$4.31
