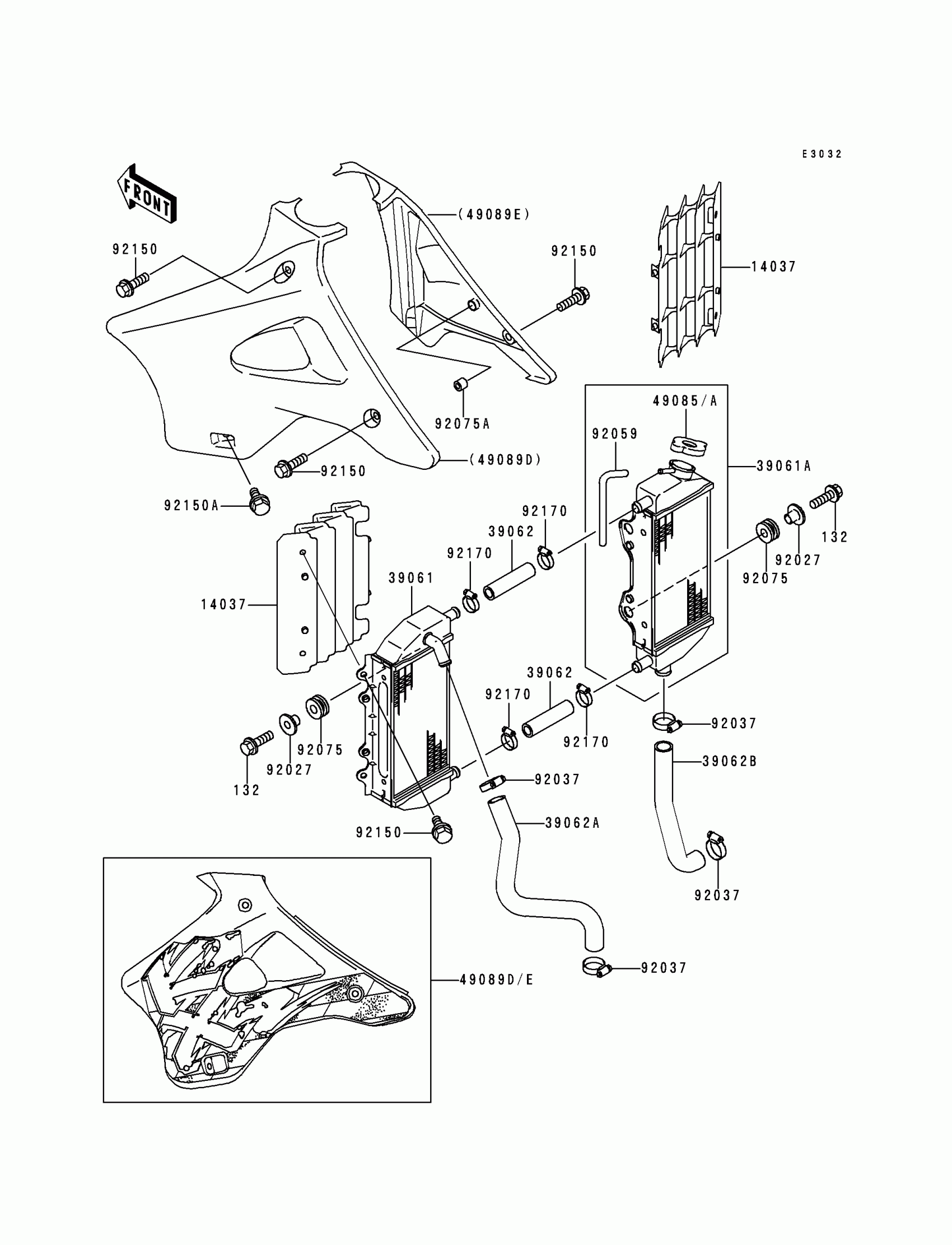

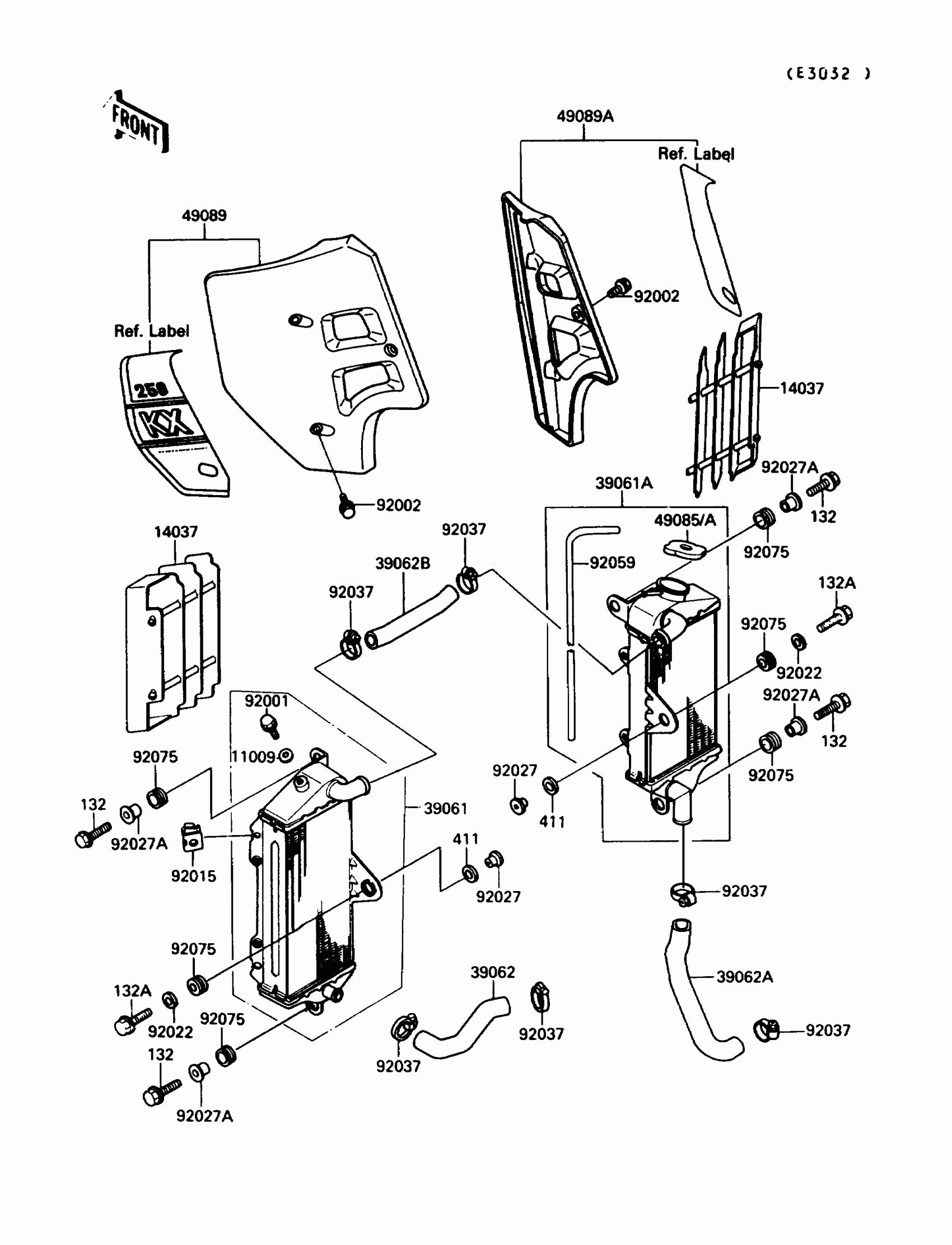

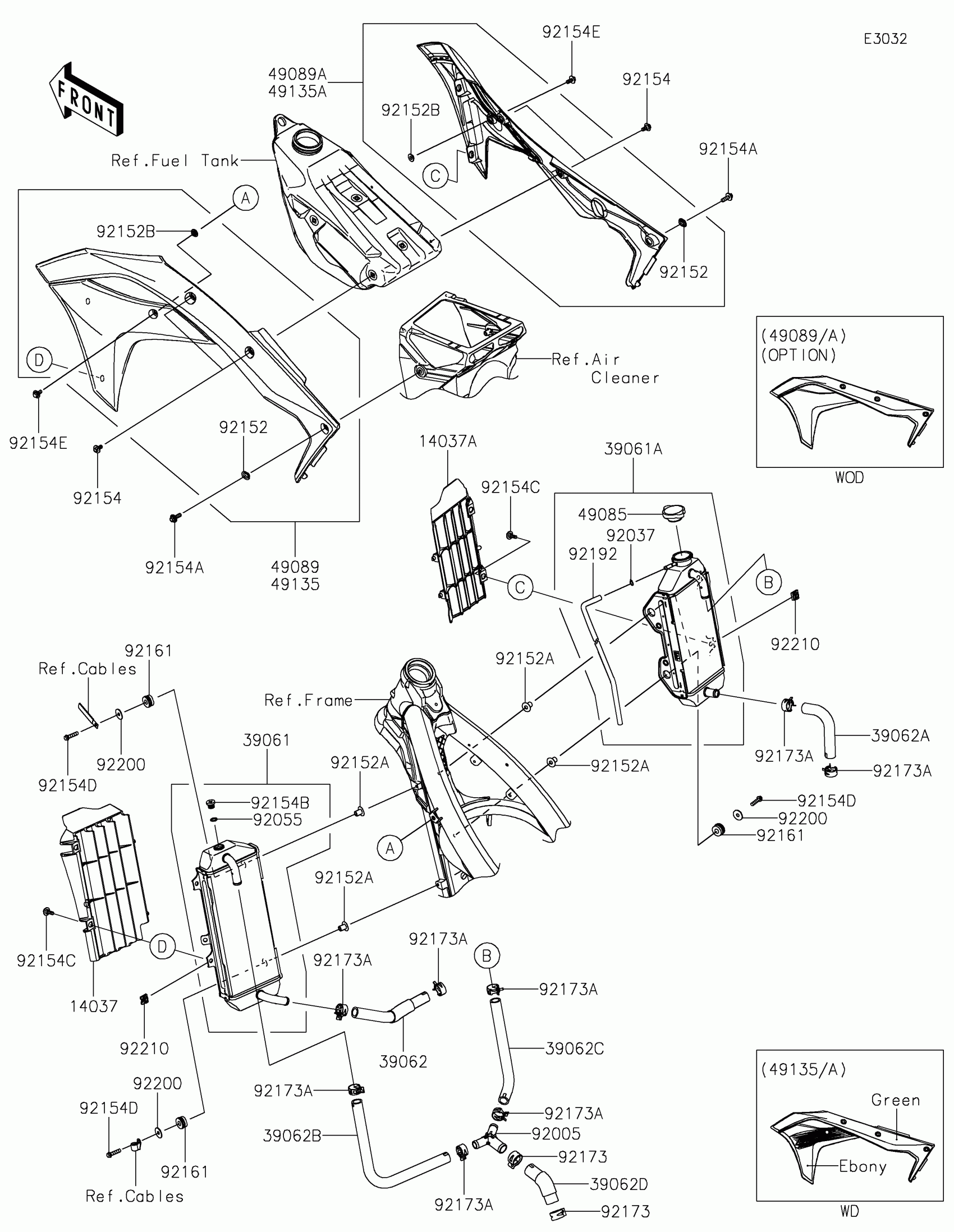

Kawasaki KX250 Radiator Diagram

#

Description
Price

14037

SCREEN,LH,EBONY

14037-0775-6C

$26.27

14037A

SCREEN,RH,EBONY

14037-0776-6C

$26.27

39061

RADIATOR-ASSY,LH

39061-0721

$386.25

39061A

RADIATOR-ASSY,RH

39061-0722

$411.81

39062

HOSE-COOLING,RAD.(LH)-W/PUMP

39062-0743

$41.27

39062A

HOSE-COOLING,RAD.(RH)-W/PUMP

39062-0744

$18.91

39062B

HOSE-COOLING,FITTING-RAD.(LH)

39062-0849

$19.94

39062C

HOSE-COOLING,FITTING-RAD.(RH)

39062-0850

$14.44

39062D

HOSE-COOLING,CYL.HEAD-FITTING

39062-0851

$16.66

49085

CAP-ASSY-PRESSURE

49085-0006

$50.52

49089

SHROUD-ENGINE,LH,L.GREEN+EBY

49089-0936-25M

$83.74

49089A

SHROUD-ENGINE,RH,L.GREEN+EBY

49089-0986-25M

$82.17

49135

SHROUD-ENGINE,LH,L.GREEN+EBY

49135-5052-25M

$164.11

49135A

SHROUD-ENGINE,RH,L.GREEN+EBY

49135-5053-25M

$163.00

92005

FITTING,3WAY

92005-0947

$37.67

92037

CLAMP

92037-1610

$2.00

92055

RING-O

92055-0866

$5.67

92152

COLLAR

92152-0052

$5.15

92152A

COLLAR

92152-0666

$6.75

92152B

COLLAR

92152-2434

$5.20

92154

BOLT,FLANGED,6X9

92154-0546

$3.74

92154A

BOLT,FLANGED,6X20

92154-1268

$1.19

92154B

BOLT,AIR VENT

92154-1738

$3.02

92154C

BOLT,FLANGED,6X28

92154-1739

$2.75

92154D

BOLT,FLANGED,6X25

92154-1928

$1.19

92154E

BOLT,FLANGED,6X14

92154-2805

$1.42

92161

DAMPER

92161-1950

$4.85

92173

CLAMP

92173-1417

$2.75

92173A

CLAMP,19.9MM

92173-1561

$2.49

92192

TUBE,L=830

92192-1490

$11.14

92200

WASHER,6.5X22X1.2

92200-2108

$1.92

92210

NUT,CLIP,6MM

92210-0867

$2.75
