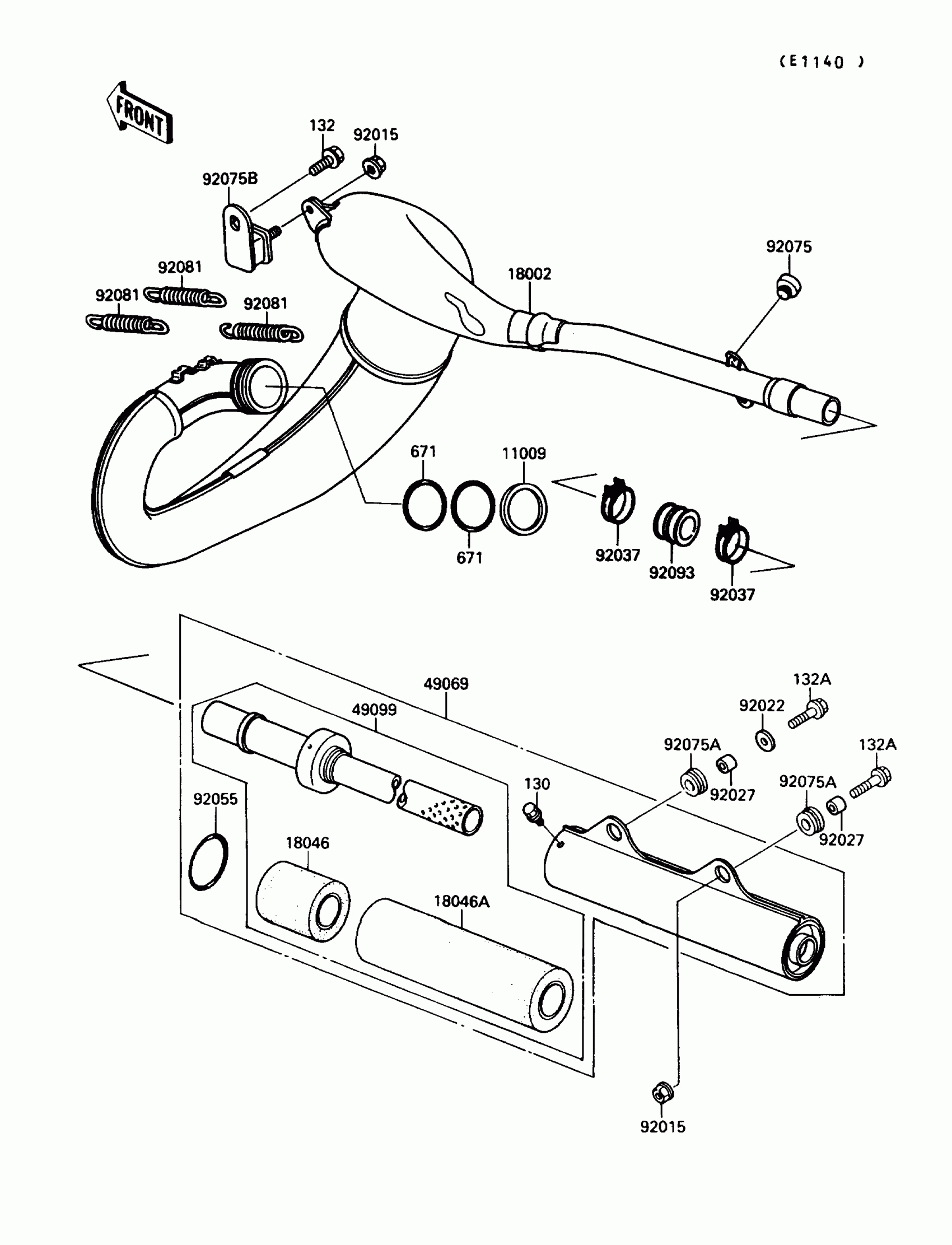

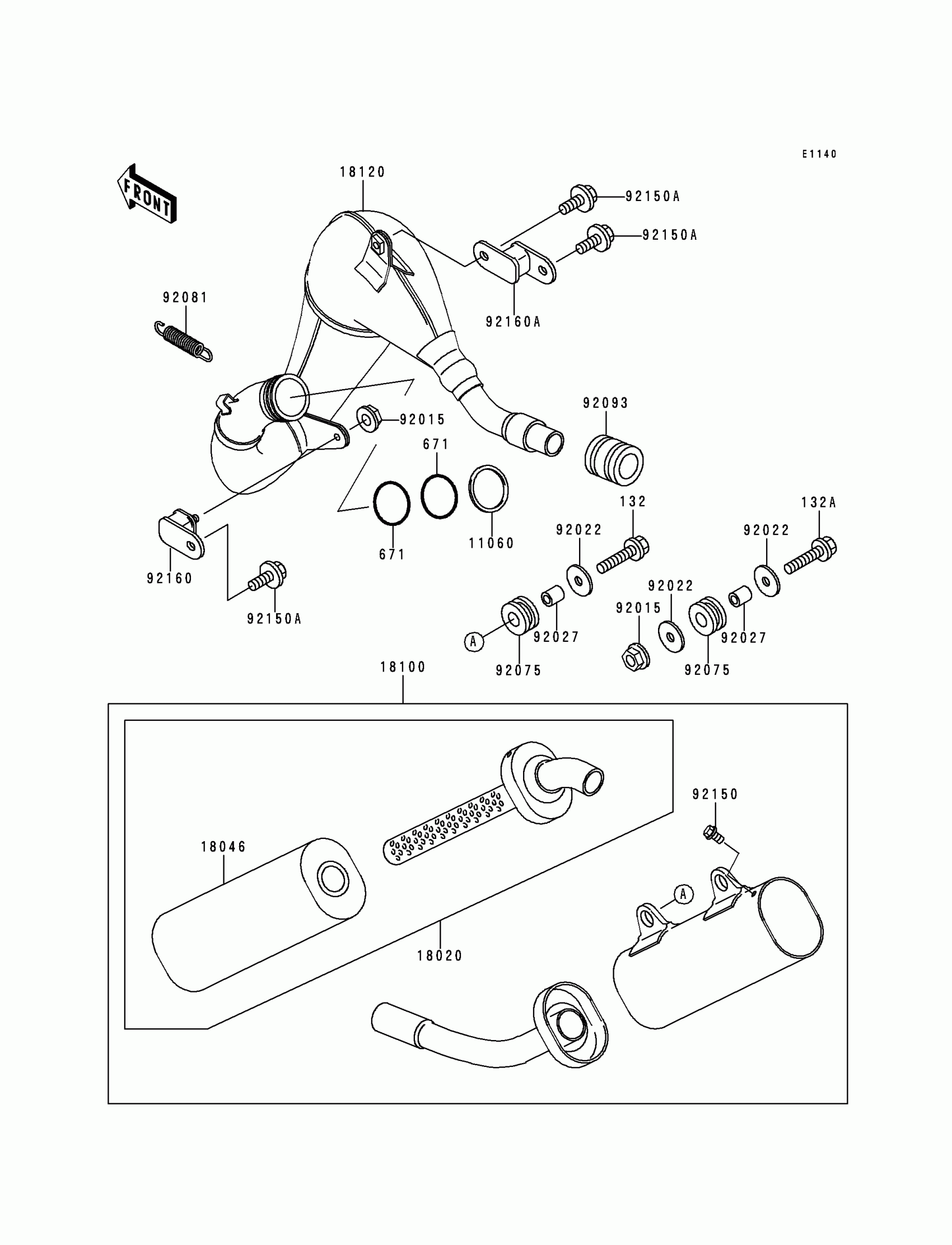

Kawasaki KX250 Muffler(s) Diagram

Description

Price

11061

GASKET,EX PIPE

11061-0027

$7.60

11061A

GASKET,CONNECTING

11061-0434

$22.17

132

BOLT-FLANGED-SMALL,8X40

132BA0840

$5.05

18088

PIPE-EXHAUST

18088-1467

$281.78

18100

BODY-ASSY-MUFFLER

18100-0606

$842.23

411

WASHER-PLAIN,6MM

411S0600

$2.06

461

WASHER-SPRING,6MM

461S0600

$1.07

49107

COVER-EXHAUST PIPE

49107-0799

$54.60

92015

NUT,8MM

92015-1402

$4.69

92027

COLLAR,FLANGED,8.8X10.6

92027-1653

$10.28

92154

BOLT,FLANGED,8X18

92154-0519

$2.69

92154A

BOLT,TORX,6X10

92154-1938

$1.19

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92173

CLAMP,57M

92173-2168

$19.45
