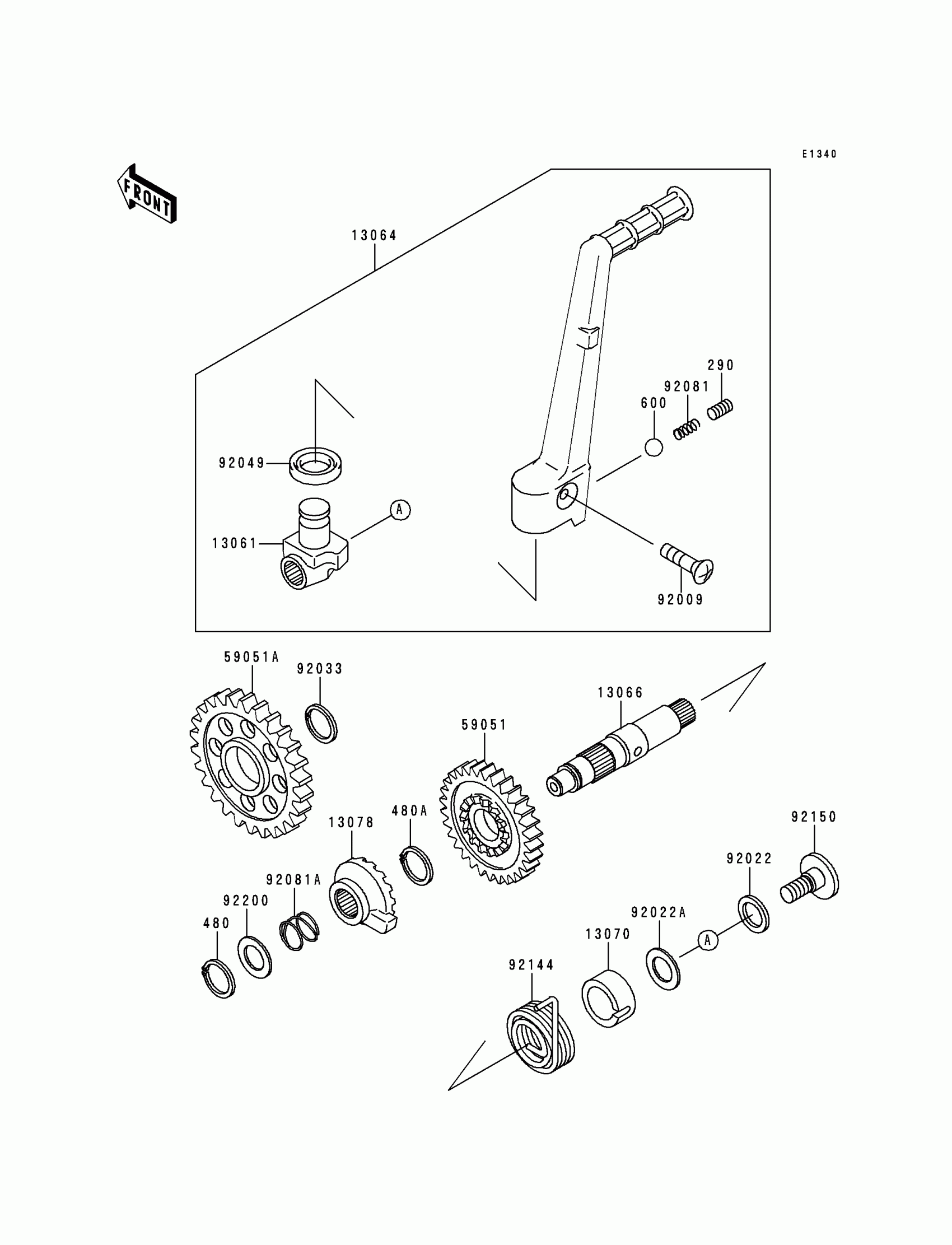

Kawasaki KX250 KICKSTARTER MECHANISM Diagram
#
Description
Price
1
LEVER-ASSY-KICK PEDA
13064-5005
Unavailable
1
PEDAL ASSY,KICK
13064-5003
Unavailable
2
BOSS,KICK PEDAL
13061-5001
Unavailable
2
BOSS,KICKSTARTER
13061-1007
Unavailable
3
SCREW-SET-SOCKET,8X8
290Q0808
Unavailable
4
CIR CLIP
482K0100
Unavailable
5
BALL-STEEL,1/4
600A0800
Unavailable
6
O RING,12MM
670B2012
Unavailable
6
O RING,15MM
670B2015
Unavailable
7
BOLT,8X28
92001-1042
Unavailable
8
WASHER,15.2X20X1
92022-1019
Unavailable
9
SPRING,KICK PEDAL
92081-020
Unavailable
10
SHAFT,KICKSTARTER
13066-1014
Unavailable
11
GUIDE,KICK SPRING
13070-011
Unavailable
12
RATCHET
13078-1052
Unavailable
13
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
14
GEAR,KICKSTARTER,27T
59051-1023
Unavailable
15
WASHER,16.8X22X0.5
92022-315
Unavailable
16
SPRING,RATCHET
92081-122
Unavailable
17
SPRING,KICKSTARTER
92081-1253
Unavailable
18
SPACER,17.2X23X0.5
92026-1037
Unavailable
19
WASHER,12.3X20X0.5
92022-269
Unavailable
20
BOLT-UPSET
112G0618
Unavailable
21
GUIDE-KICK
13206-1059
Unavailable
22
STOPPER,KICKSTARTER
32085-1016
Unavailable
23
IDLE GEAR, KICKSTRTE
59051-1022
Unavailable
24
WASHER,20.5X25.5X0.5
92022-252
Unavailable
25
RING-SNAP,18MM
92033-029
Unavailable
26
BOOT,KICKSTARTER
49006-1006
Unavailable
