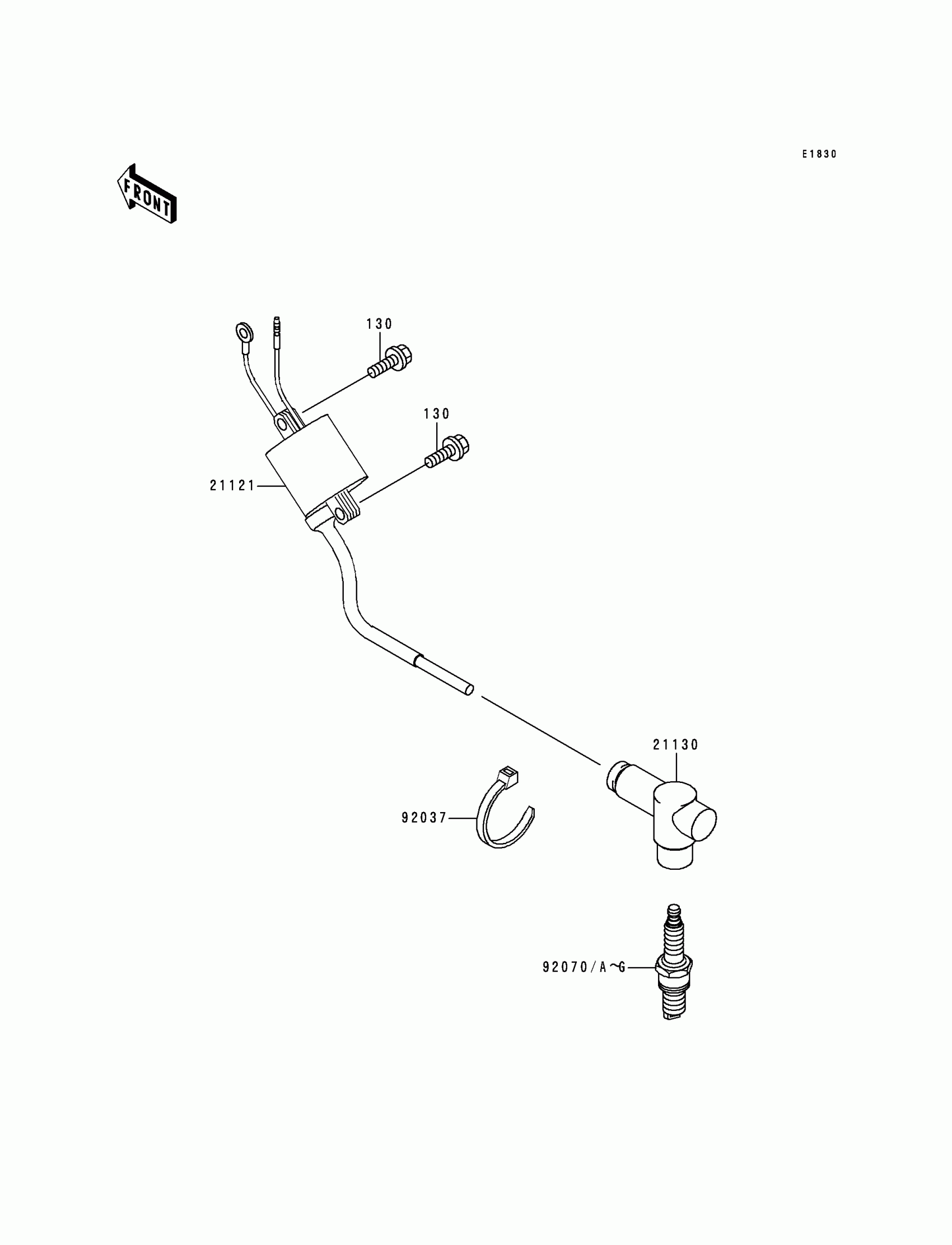

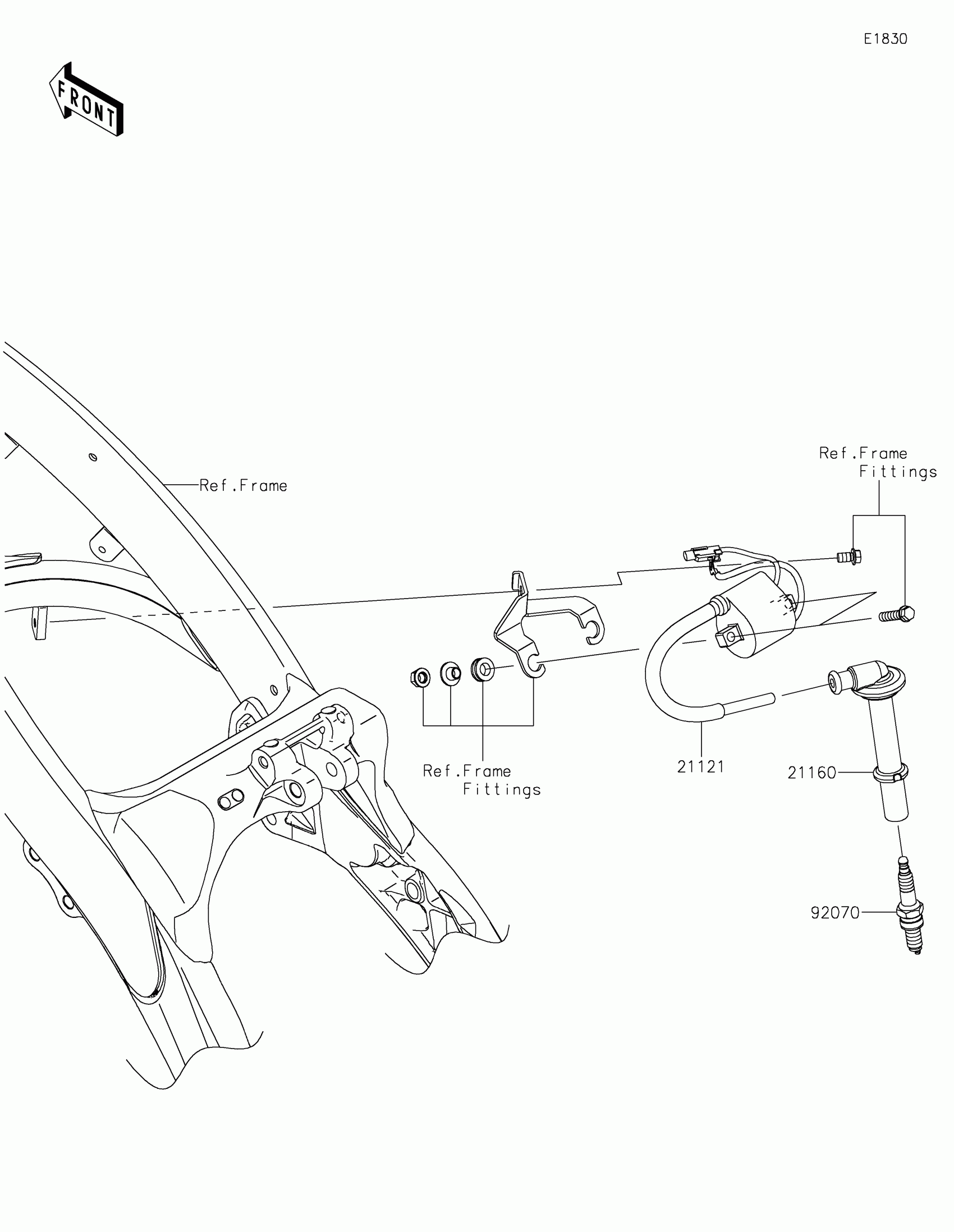

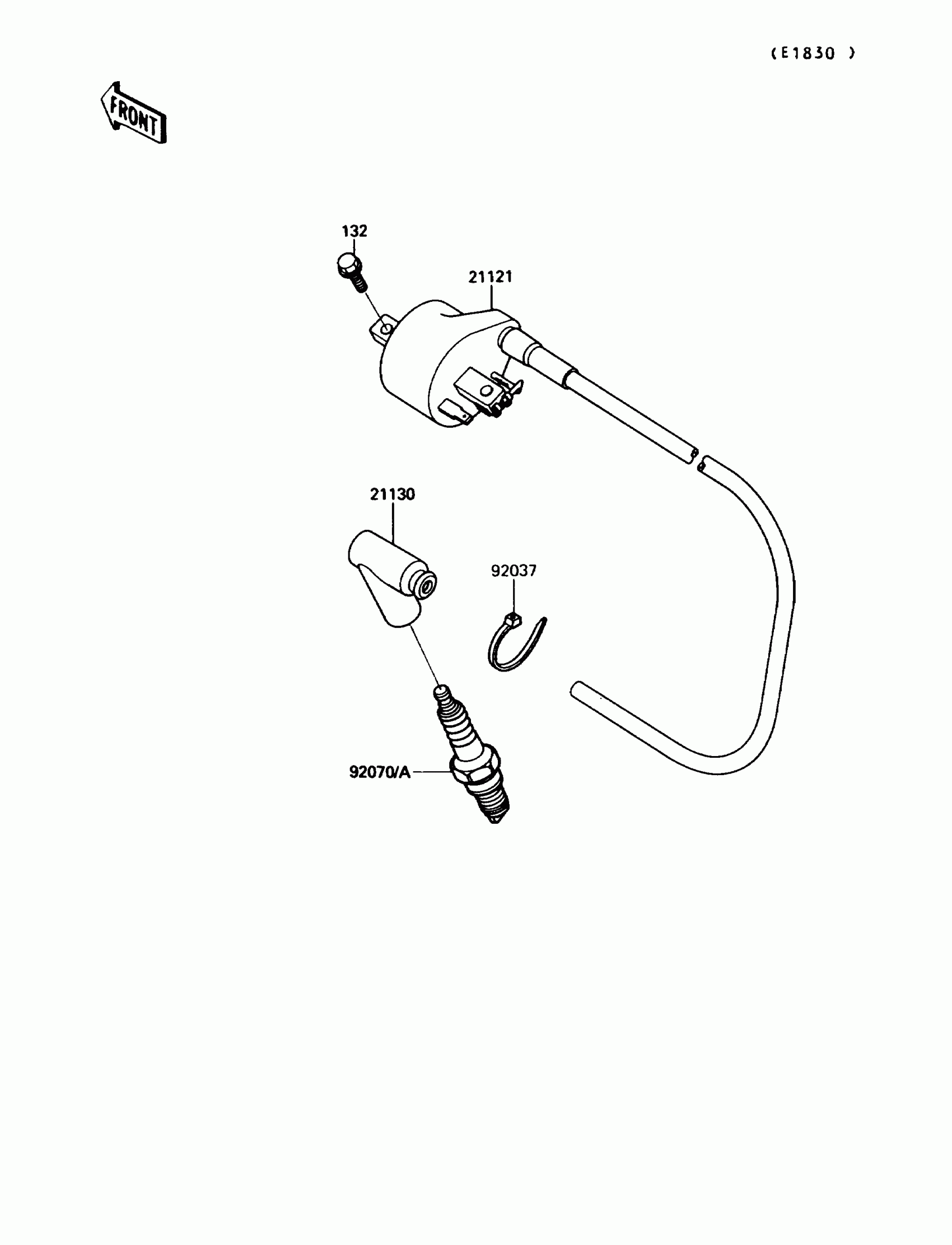

Kawasaki KX250 Ignition System Diagram

Description

Price

130

BOLT-FLANGED

130G0520

Unavailable

21121

COIL-IGNITION

21121-1248

$99.67

21130

CAP-SPARK PLUG

21130-1073

Unavailable

92037

CLAMP

92037-1173

$3.49

92070

PLUG-SPARK,R6252E-9(NGK)

92070-1197

Unavailable

92070A

PLUG-SPARK,R6254E-9(NGK)

92070-1198

Unavailable

92070B

PLUG-SPARK,R4630A-9(NGK)

92070-1206

$30.64

92070C

PLUG-SPARK,B8EVX(NGK)

92070-1214

$14.47

92070D

PLUG-SPARK,BR8EVX(NGK)

92070-1215

Unavailable

92070E

PLUG-SPARK,R6254E-8(NGK)

92070-1216

$9.27

92070F

PLUG-SPARK,R6252E-8(NGK)

92070-1217

$9.25

92070G

PLUG-SPARK,R4630A-8(NGK)

92070-1229

Unavailable
