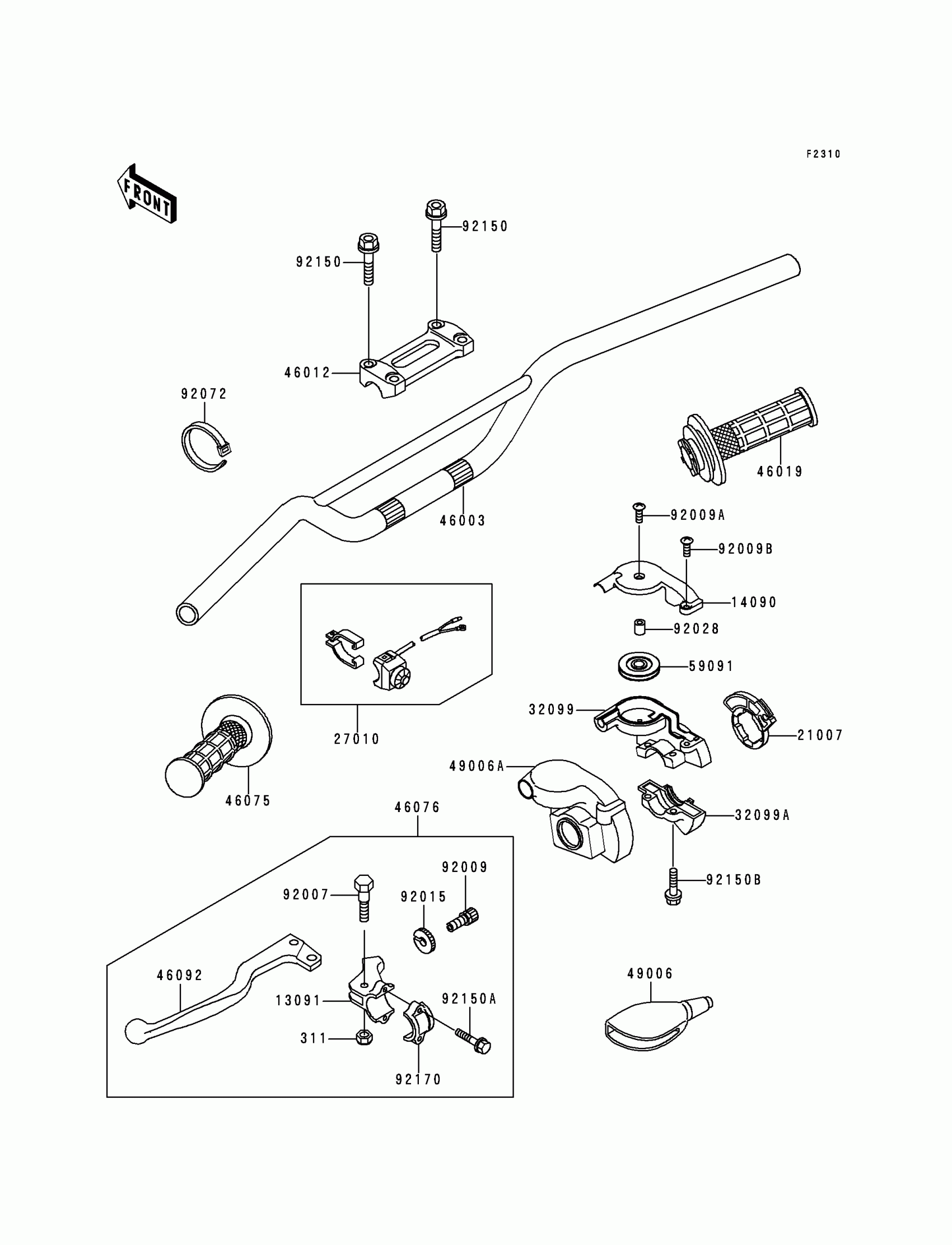

Kawasaki KX250 Handlebar Diagram
#
Description
Price
311
NUT-HEX
311C0500
$0.43
13091
HOLDER,CLUTCH LEVER
13091-1728
$51.24
14090
COVER,THROTTLE CASE,UPP
14090-1161
$11.40
21007
ROTOR,THROTTLE
21007-1242
$13.84
27010
SWITCH,ENGINE STOP
27010-1350
$56.15
32099
CASE,THROTTLE,UPP
32099-1137
$48.74
32099A
CASE,THROTTLE,LWR
32099-1138
$32.96
46003
HANDLE,L.GREEN
46003-1422-CC
Unavailable
46012
HOLDER-HANDLE,UPP
46012-1190
$68.49
46019
GRIP-ASSY,THROTTLE
46019-1076
Unavailable
46075
GRIP,LH
46075-1024
$25.66
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1182
$38.15
46092
LEVER-GRIP,CLUTCH
46092-1165
$15.95
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
49006A
BOOT,THROTTLE
49006-1271
Unavailable
59091
PULLEY,THROTTLE
59091-1102
$11.51
92007
BOLT,5X22
92007-046
$7.62
92009
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92009A
SCREW
92009-1674
$5.24
92009B
SCREW
92009-1675
$3.46
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92028
BUSHING,THROTTLE CASE
92028-1658
$6.87
92072
BAND,L=123
92072-030
$5.00
92150
BOLT,FLANGED,8X30
92150-1455
Unavailable
92150A
BOLT
92150-1474
$5.00
92150B
BOLT
92150-1559
$4.80
92170
CLAMP,LEVER HOLDER
92170-1226
$27.29
