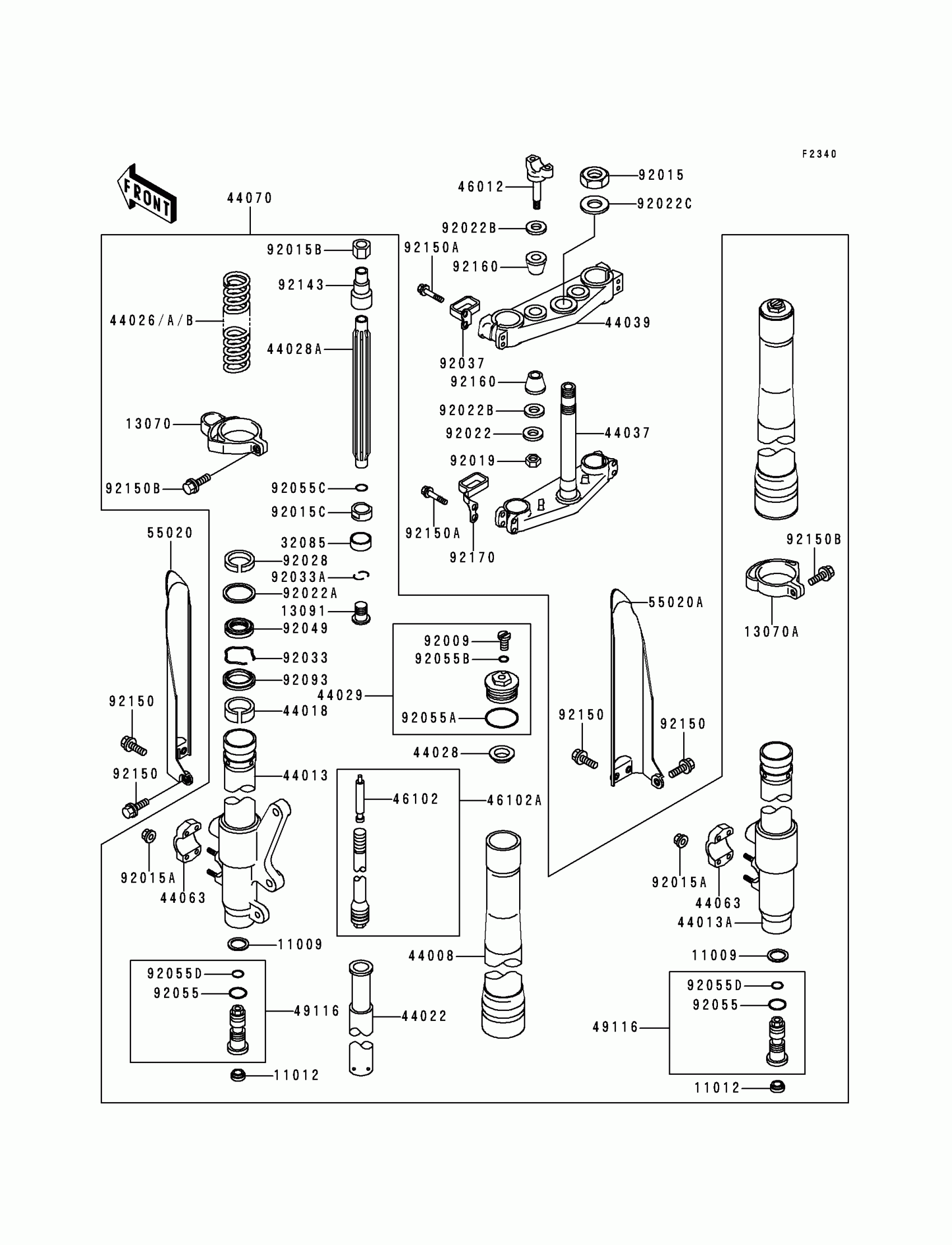

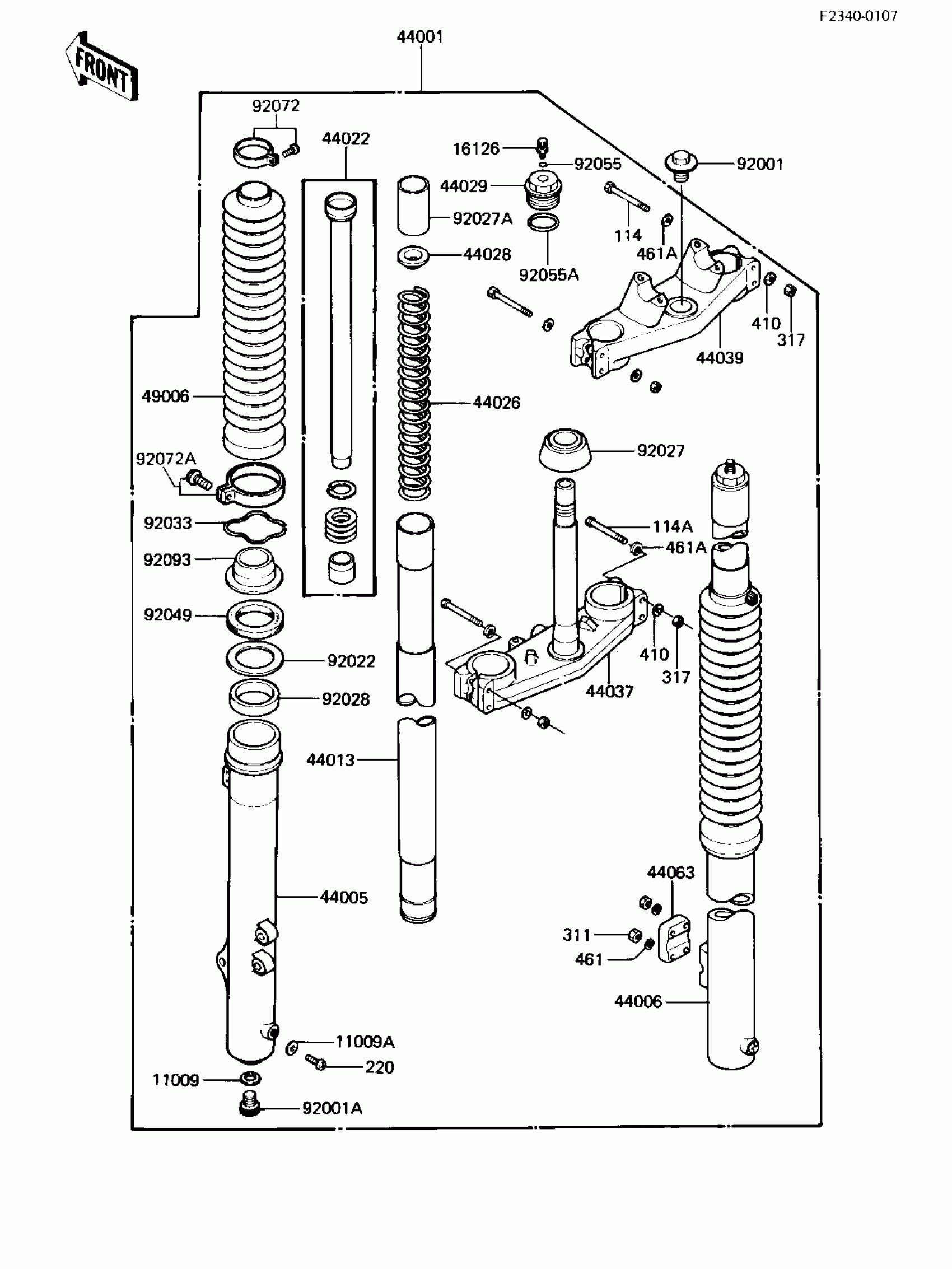

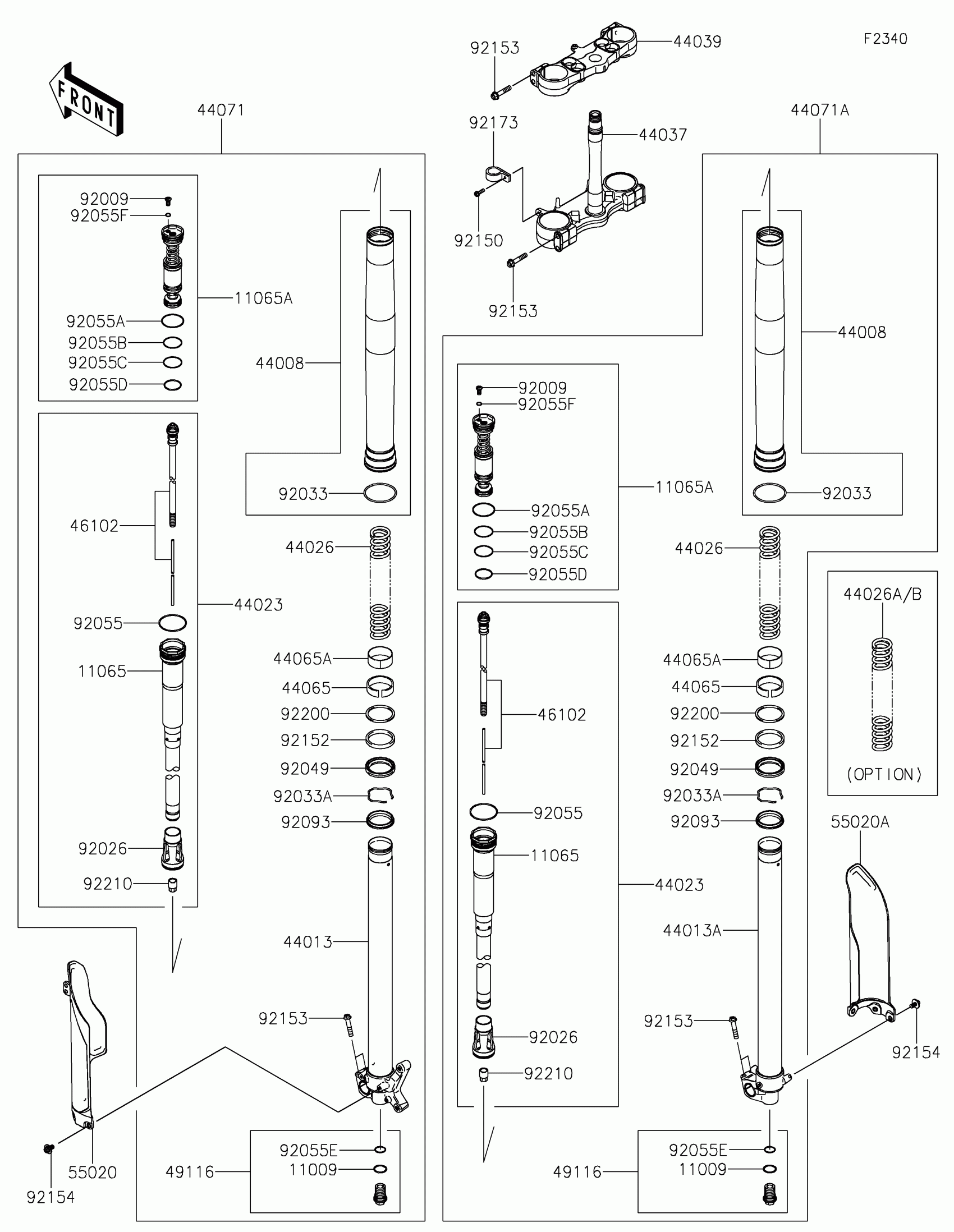

Kawasaki KX250 Front Fork Diagram
#
11009
GASKET
11009-1791
Unavailable
11012
CAP
11012-1692
$6.16
13070
GUIDE,PROTECTOR,LH
13070-1277
Unavailable
13070A
GUIDE,PROTECTOR,RH
13070-1278
Unavailable
13091
HOLDER
13091-1651
$28.70
32085
STOPPER
32085-1323
$20.04
44008
PIPE-FORK OUTER,GOLD
44008-1033-14
Unavailable
44013
PIPE-FORK INNER,LH
44013-1401
Unavailable
44013A
PIPE-FORK INNER,RH
44013-1402
$422.31
44018
PISTON-FORK,INNER PIPE
44018-1056
$28.45
44022
CYLINDER-FORK
44022-1304
$266.31
44026
SPRING-FRONT FORK,K=0.39
44026-1529
Unavailable
44026A
SPRING-FRONT FORK,K=0.38
44026-1532
Unavailable
44026B
SPRING-FRONT FORK,K=0.40
44026-1534
Unavailable
44028
GUIDE-FORK SPRING
44028-1081
$12.12
44028A
GUIDE-FORK SPRING
44028-1094
$45.54
44029
SEAT-FORK SPRING
44029-1156
Unavailable
44037
HOLDER-FORK UNDER
44037-1329
Unavailable
44039
HOLDER-FORK UPPER
44039-1225
$268.83
44063
HOLDER-FRONT AXLE
44063-1060
$54.38
44070
DAMPER-ASSY,FORK,GOLD
44070-1375-14
$3,088.15
46012
HOLDER-HANDLE,LWR
46012-1242
$44.98
46102
ROD,FORK,INNER
46102-1340
Unavailable
46102A
ROD,FORK,ASSY
46102-1380
Unavailable
49116
VALVE-ASSY,FORK
49116-1133
$164.52
55020
GUARD,FORK,LH,WHITE
55020-1492-RZ
$60.12
55020A
GUARD,FORK,RH,WHITE
55020-1493-RZ
$60.12
92009
SCREW
92009-1568
$7.21
92015
NUT,24MM
92015-1057
$15.65
92015A
NUT,FLANGED,6MM
92015-1078
Unavailable
92015B
NUT
92015-1905
$19.64
92015C
NUT
92015-1945
$10.24
92019
NUT,LOCK,10MM
92019-021
$6.11
92022
WASHER,10.2X28X2
92022-1088
$4.69
92022A
WASHER
92022-1299
$8.58
92022B
WASHER
92022-1737
$5.52
92022C
WASHER,25X36X2.3
92022-250
$5.00
92028
BUSHING
92028-1670
$28.64
92033
RING-SNAP
92033-1077
$4.96
92033A
RING-SNAP
92033-1271
$6.87
92037
CLAMP
92037-1627
$27.70
92049
SEAL-OIL
92049-1373
$28.98
92055
RING-O,FORK
92055-1062
$4.69
92055A
RING-O,FORK,AIR TUBE
92055-1333
$6.00
92055B
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92055C
RING-O
92055-1442
$9.21
92055D
RING-O,FORK VALVE
92055-1513
$3.95
92093
SEAL,FORK OUTER TUBE
92093-1342
$18.72
92143
COLLAR,FORK
92143-1690
Unavailable
92150
BOLT,6X12
92150-1435
$4.31
92150A
BOLT,FLANGED,8X40
92150-1516
$14.15
92150B
BOLT,5X16
92150-1802
$5.00
92160
DAMPER,HANDLE HOLDER
92160-1544
$5.11
92170
CLAMP
92170-1088
$27.70
