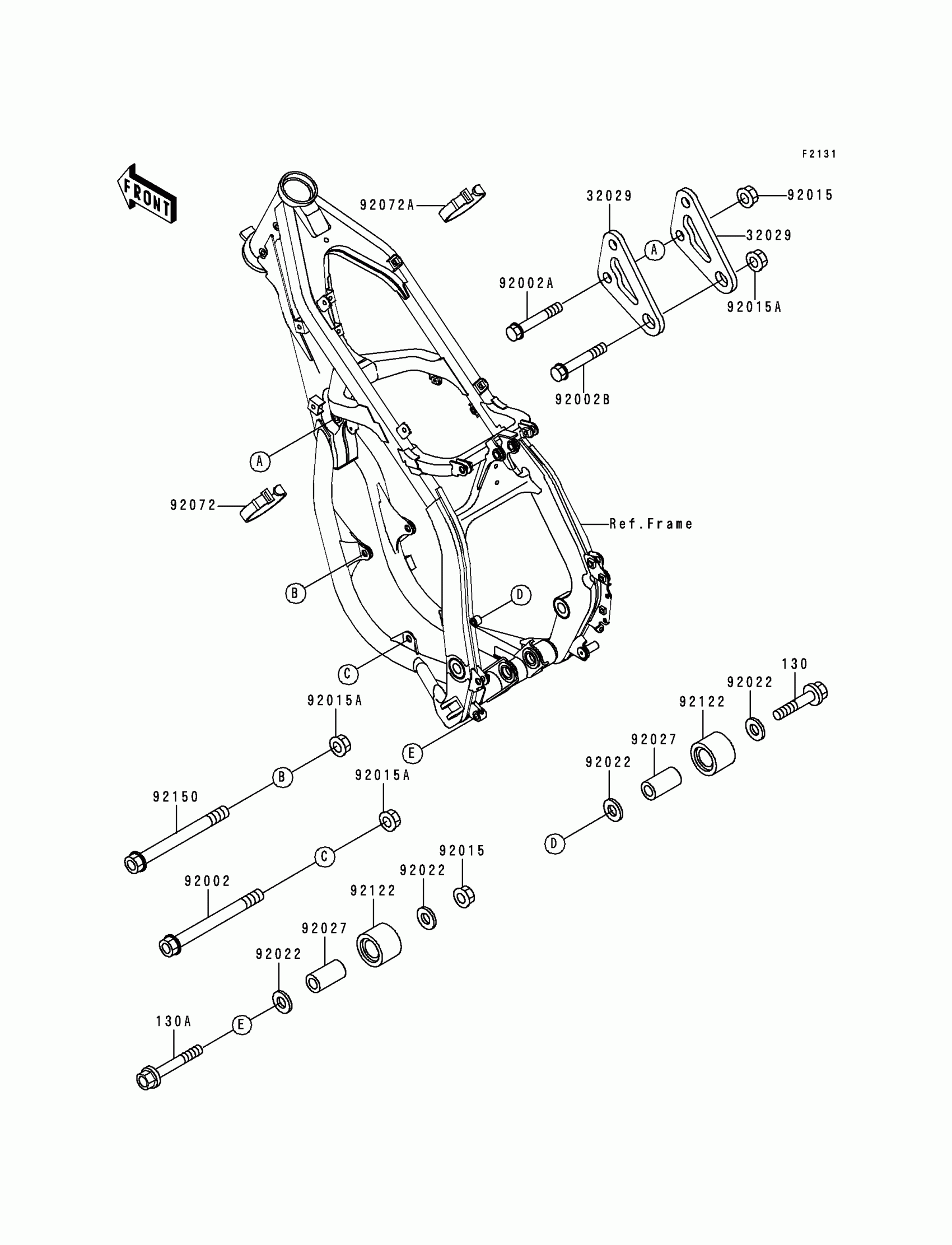

Kawasaki KX250 Frame Fittings Diagram

#

Description
Price

11056

BRACKET,DIAG CONNECTOR

11056-0070

$8.07

11056A

BRACKET,REGULATOR

11056-0624

$15.76

11056B

BRACKET,CONDENSOR

11056-7458

$6.20

11056C

BRACKET,IG. COIL

11056-7976

$9.77

11056D

BRACKET,VEHICLE DOWN SENSOR

11056-7977

$7.58

11056E

BRACKET,CONNECTOR

11056-7978

$11.31

11056F

BRACKET,ECU

11056-7985

$58.23

55020

GUARD,ENGINE,LWR,EBONY

55020-0443-6C

$29.38

55020A

GUARD,ENGINE,LH

55020-1941

$30.68

55020B

GUARD,ENGINE,RH

55020-1942

$30.68

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92019

NUT,LOCK,6MM

92019-008

$4.26

92045

BEARING-BALL,608LLU/2A

92045-0060

$32.61

92122

ROLLER,CHAIN GUIDE

92122-0016

$18.57

92122A

ROLLER,CHAIN

92122-0042

$15.80

92143

COLLAR

92143-1196

$4.69

92143A

COLLAR

92143-1307

$3.94

92150

BOLT,6X12

92150-1435

$4.31

92152

COLLAR

92152-0052

$5.15

92152A

COLLAR,6.3X8.3X16

92152-0286

$5.65

92152B

COLLAR

92152-0459

$26.30

92152C

COLLAR,8.5X12.5X12.5

92152-0944

$6.69

92152D

COLLAR,12.7X27.2X12

92152-0945

$8.58

92152E

COLLAR

92152-1449

$7.54

92152F

COLLAR,8.5X14X7.5

92152-2092

$9.04

92154

BOLT,SOCKET,6X10

92154-0774

$1.63

92154A

BOLT,FLANGED,8X35

92154-1746

$1.48

92154B

BOLT,6X10

92154-2963

$0.64

92154C

BOLT,FLANGED,6X14

92154-2964

$0.64

92154D

BOLT,FLANGED,6X25

92154-2967

$0.90

92154E

BOLT,FLANGED,6X18

92154-3994

$0.88

92161

DAMPER

92161-0266

$1.78

92161A

DAMPER,8.5X15.5X5.5

92161-0878

$2.32

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.61

92210

NUT,FLANGED,6MM

92210-0630

$2.00
