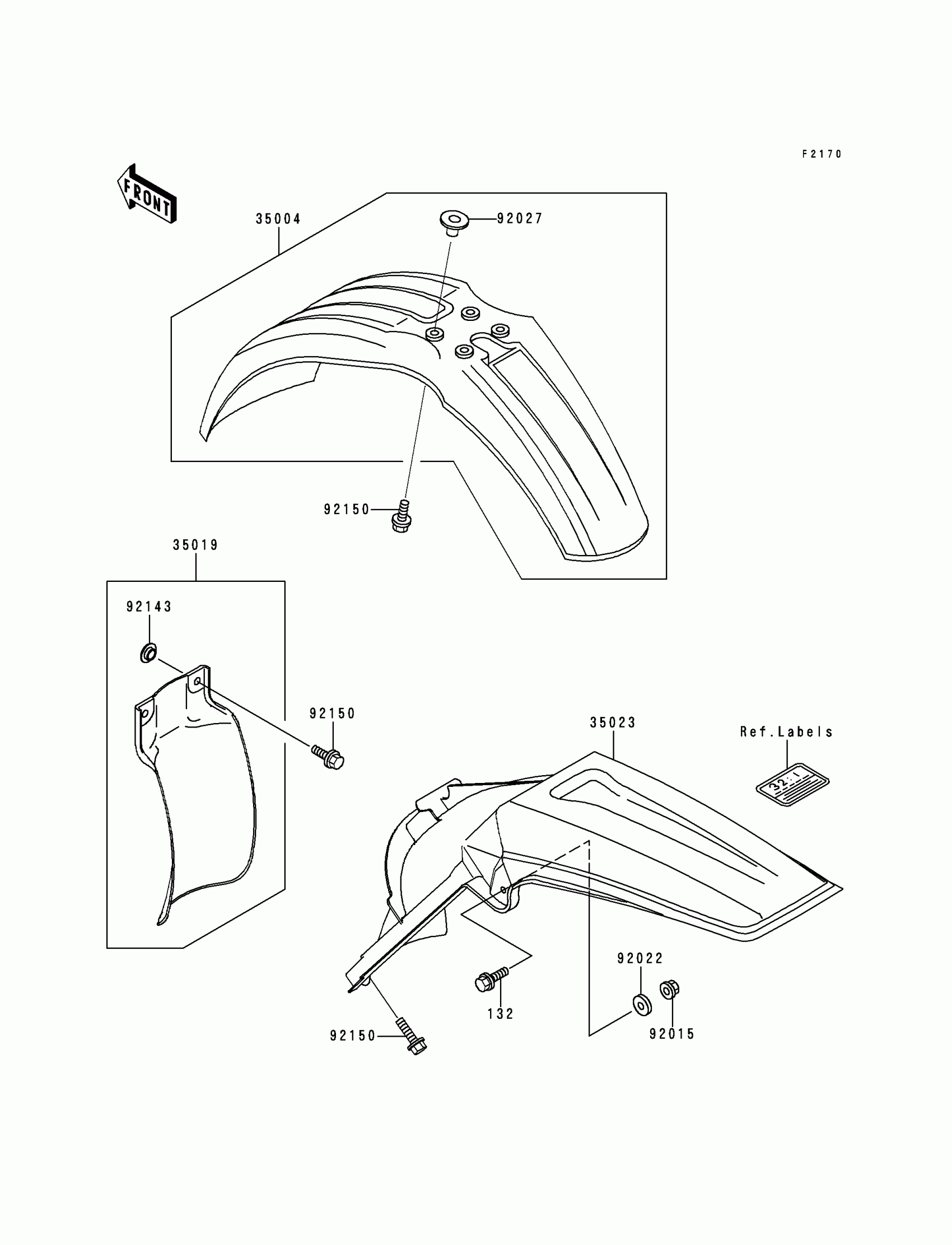

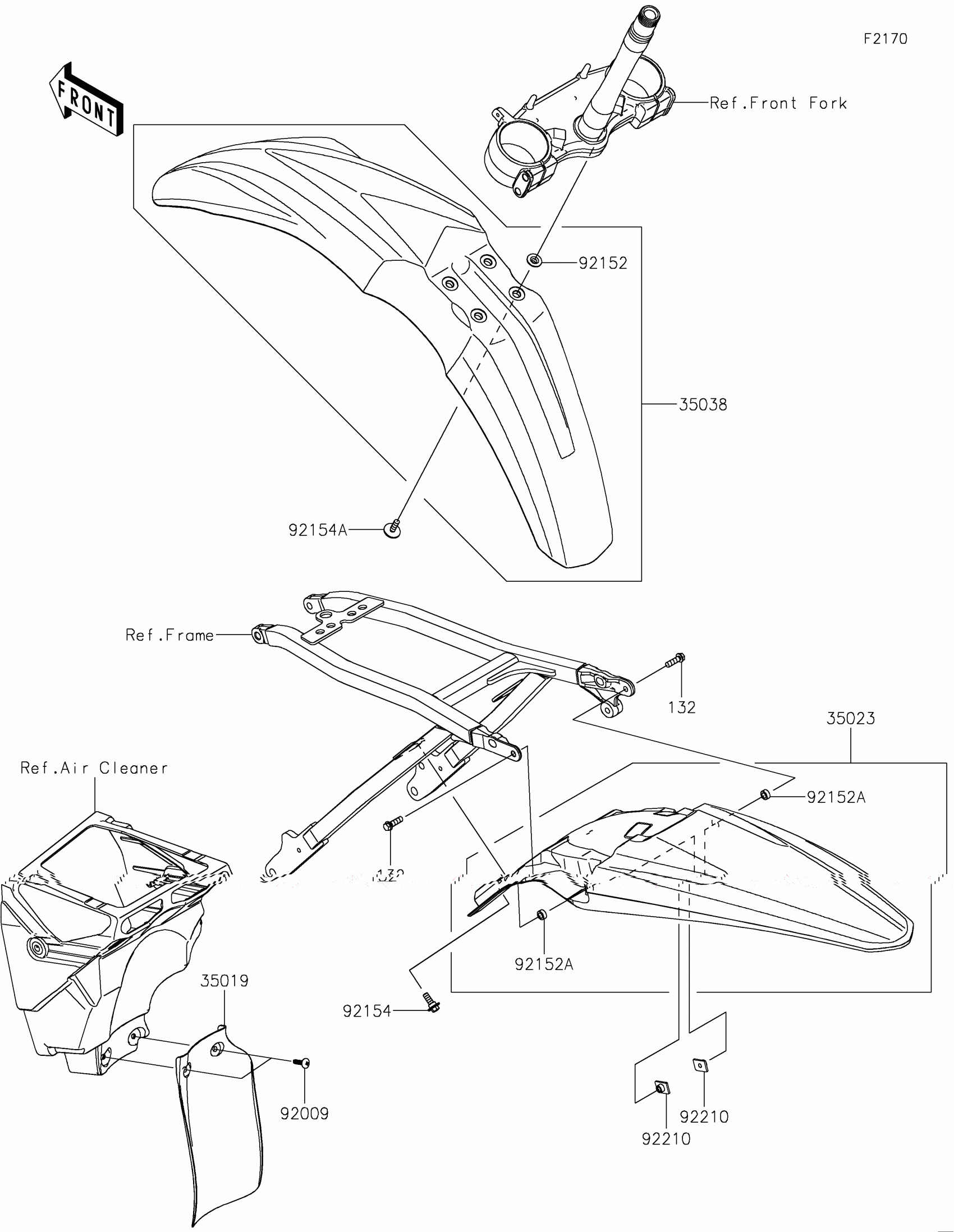

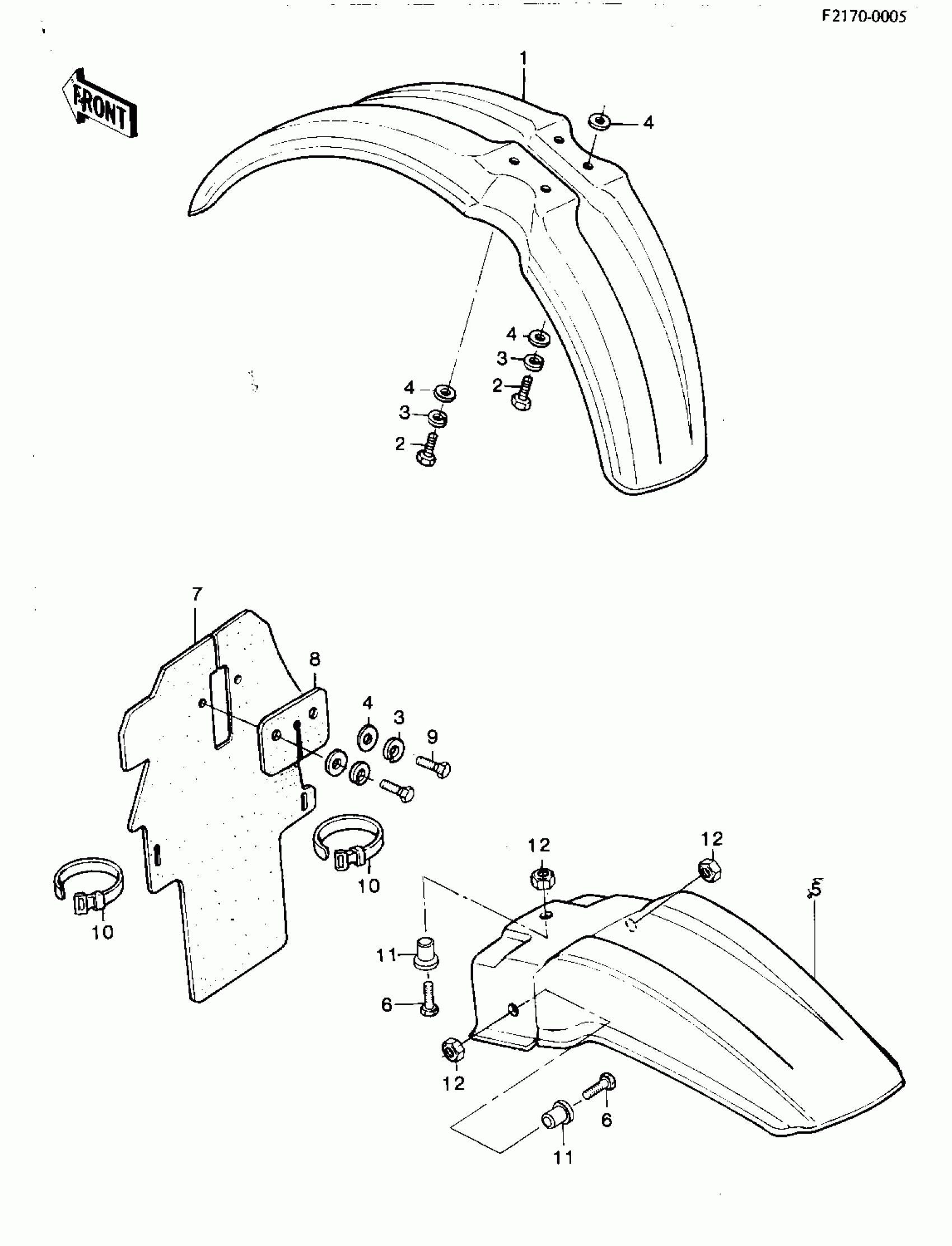

Kawasaki KX250 FENDERS Diagram

#

Description
Price

1

FENDER-FRONT,L.GREEN

35004-1233-6W

Unavailable

2

BOLT-UPSET

112G0618

$1.01

2

BOLT-UPSET,6X16

112G0616

$1.10

3

WASHER SPRING 6MM

461F0600

$0.69

4

WASHER,6.5X20X1.6

92022-125

$1.40

5

FENDER-RR,L.GREEN

35022-1043-6W

Unavailable

6

BOLT-UPSET,6X12

112G0612

$1.45

6

BOLT-UPSET 6X14

112B0614

Unavailable

7

FLAP

35019-1013

Unavailable

8

FLAP,REAR FENDER

35019-1019

Unavailable

9

BOLT-UPSET,6X12

112G0612

$1.45

10

BAND

92072-3505

Unavailable

11

COLLAR,L=5.1

92027-1260

$6.22

12

NUT,LOCK,6MM

92019-008

$4.26
