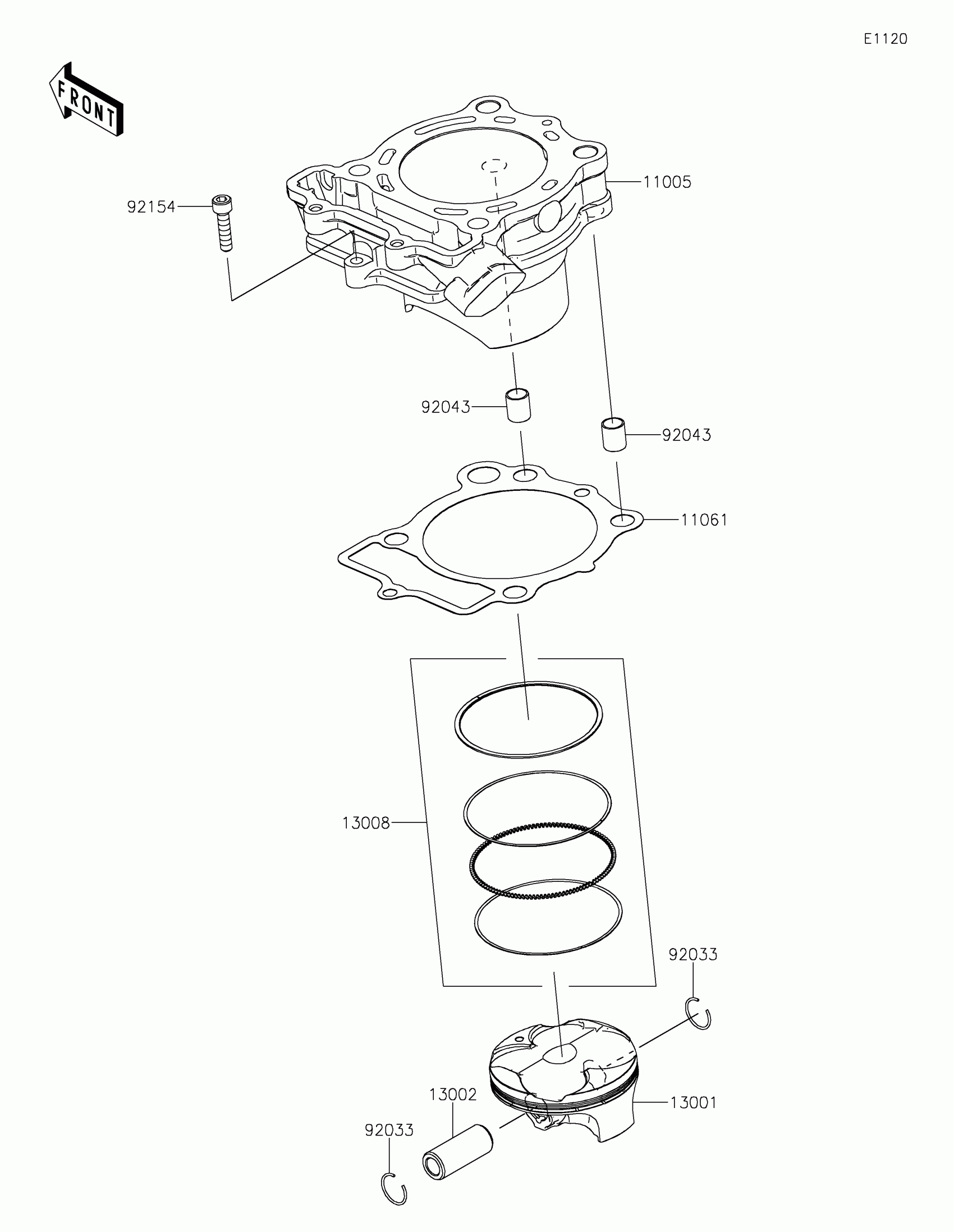

Kawasaki KX250 Cylinder/Piston(s) Diagram

#

Description
Price

11005

CYLINDER-ENGINE

11005-0711

$463.10

11061

GASKET,CYLINDER BASE

11061-1198

$11.64

13001

PISTON-ENGINE

13001-0810

$170.12

13002

PIN-PISTON

13002-0721

$28.80

13008

RING-SET-PISTON

13008-0585

$42.40

92033

RING-SNAP,PISTON PIN

92033-1161

$2.97

92043

PIN,10.1X12X14

92043-4009

$4.67

92154

BOLT-SOCKET,6X25

92154-3960

$0.95
