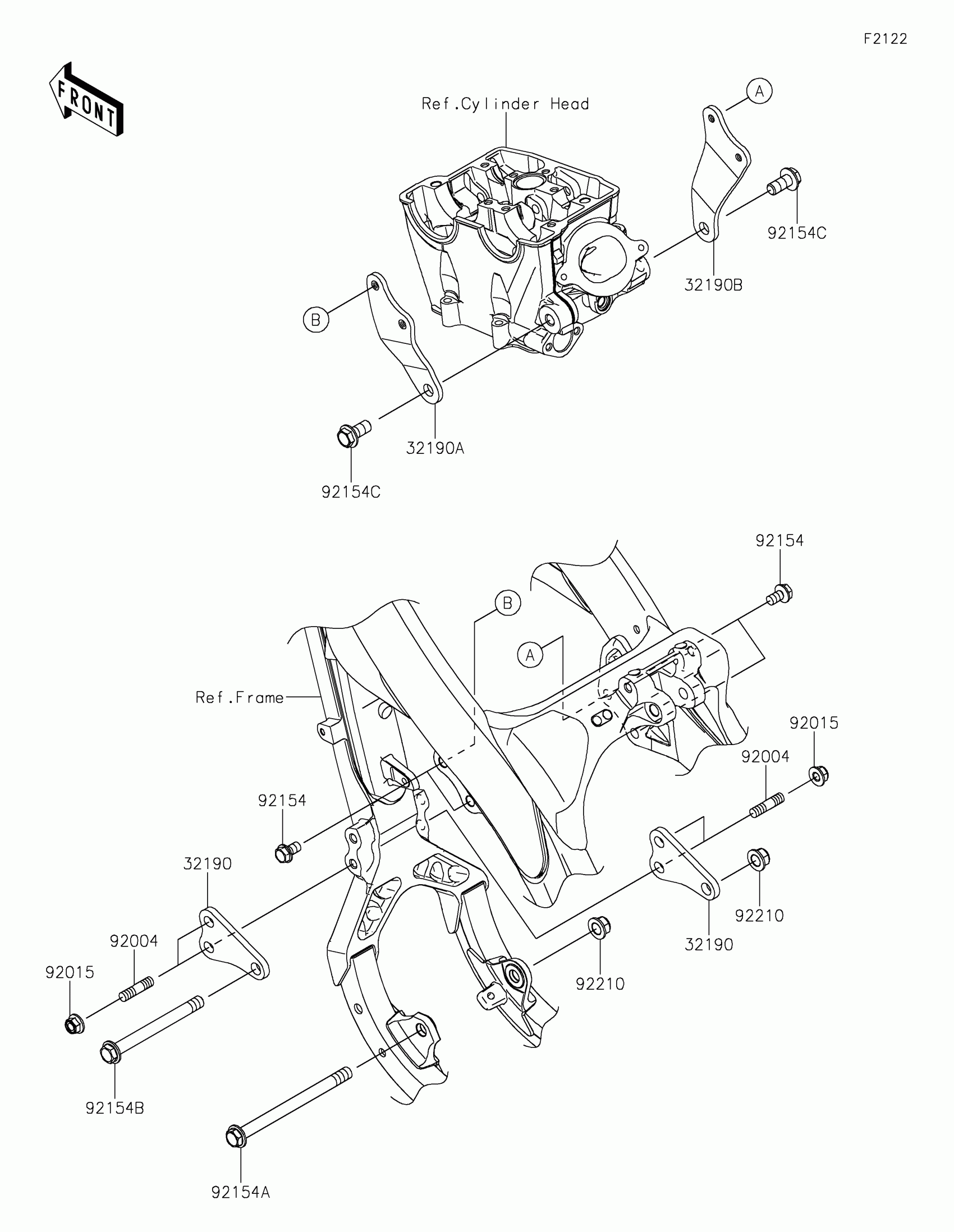

Kawasaki KX250 Engine Mount Diagram

#

Description
Price

32190

BRACKET-ENGINE,FR

32190-0714

$11.68

32190A

BRACKET-ENGINE,UPP,LH

32190-0811

$32.34

32190B

BRACKET-ENGINE,UPP,RH

32190-0812

$30.29

92004

STUD,8X18/16

92004-0789

$2.00

92015

NUT,8MM

92015-1432

$4.93

92154

BOLT,FLANGED,8X14

92154-0380

$3.85

92154A

BOLT,FLANGED,10X130

92154-0517

Unavailable

92154B

BOLT,FLANGED,10X104

92154-2156

$5.93

92154C

BOLT,FLANGED,10X21.5

92154-3993

$7.64

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83
