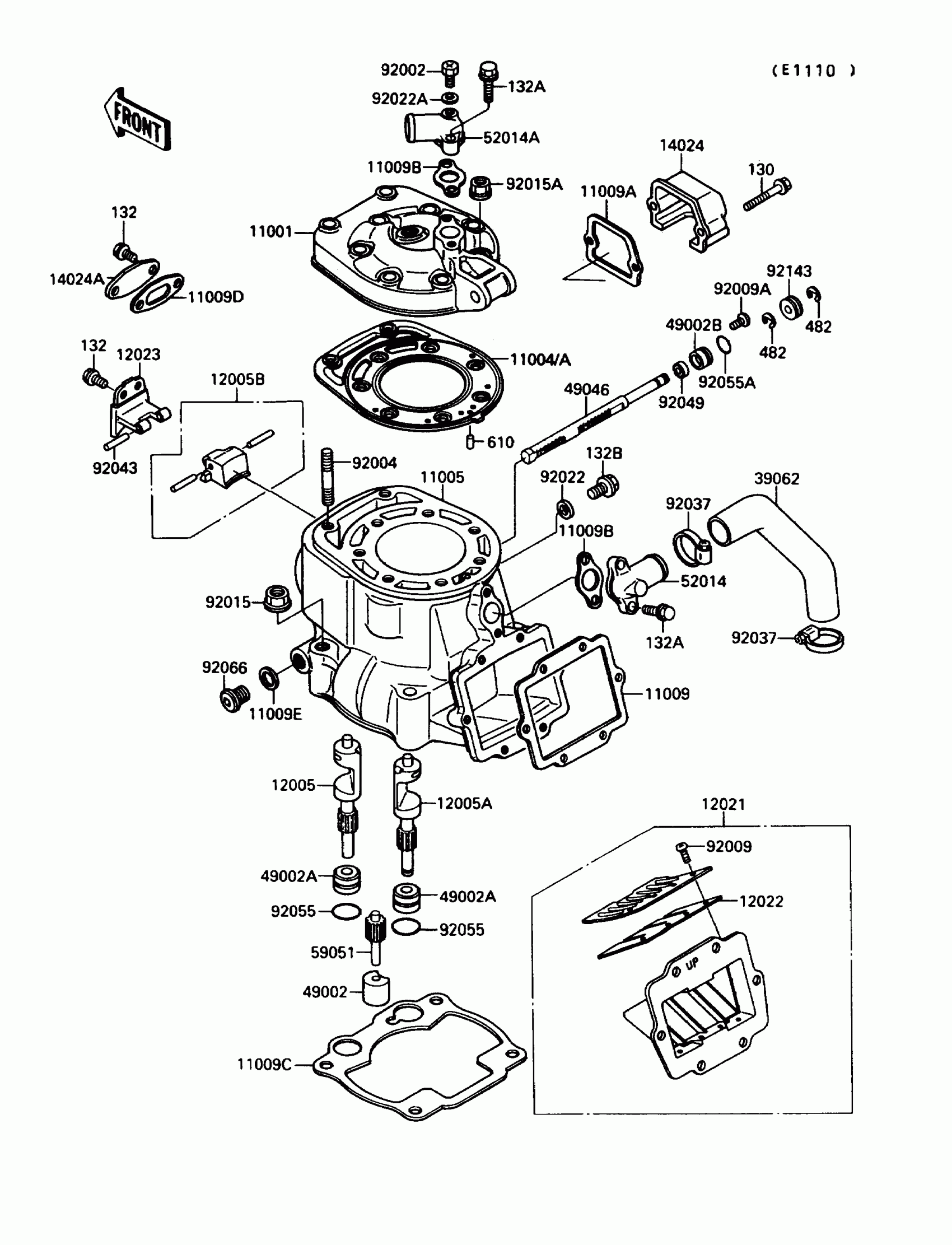

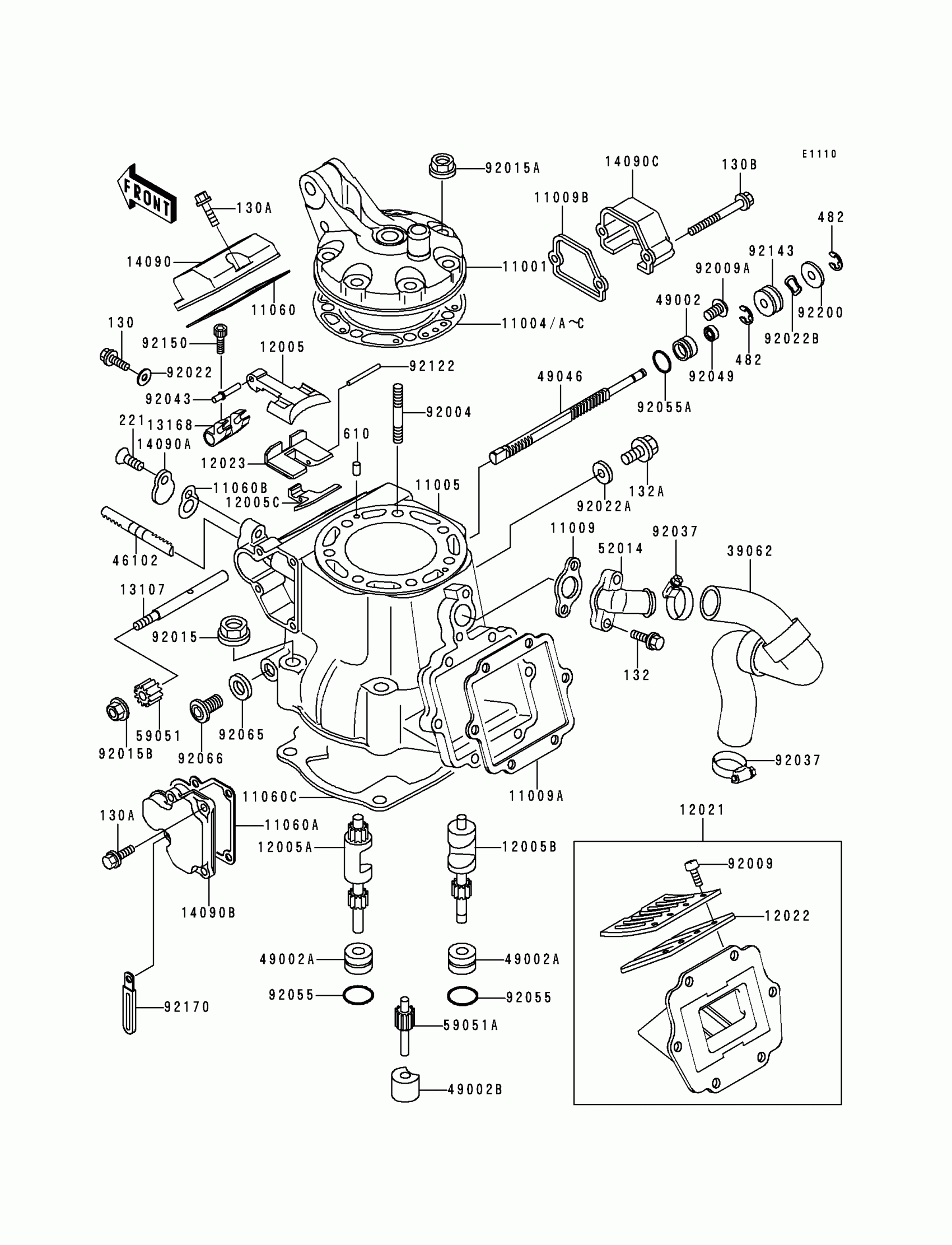

Kawasaki KX250 Cylinder Head/Cylinder Diagram
#
11001
HEAD-CYLINDER
11001-1425
$334.89
11004
GASKET-HEAD,T=0.26
11004-1240
Unavailable
11004A
GASKET-HEAD,T=0.26
11004-1240
Unavailable
11004B
GASKET-HEAD,T=0.46
11004-1241
Unavailable
11004C
GASKET-HEAD,T=0.46
11004-1241
Unavailable
11005
CYLINDER-ENGINE
11005-1751
Unavailable
11009
GASKET,ELBOW
11009-1935
$4.97
11009A
GASKET,REED VALVE
11009-1950
$11.49
11009B
GASKET,GOVERNOR COVER
11009-1960
$5.42
11060
GASKET,VALVE COVER
11060-1289
$7.51
11060A
GASKET,RESONATOR
11060-1290
$6.38
11060B
GASKET,GOVERNOR ROD
11060-1346
Unavailable
11060C
GASKET,CYLINDER BASE
11060-1493
$16.27
12005
VALVE-EXHAUST,MAIN
12005-1203
Unavailable
12005A
VALVE-EXHAUST,LH
12005-1210
Unavailable
12005B
VALVE-EXHAUST,RH
12005-1211
Unavailable
12005C
VALVE-EXHAUST,MAIN
12005-1220
Unavailable
12021
VALVE-ASSY-REED
12021-1105
Unavailable
12022
VALVE-REED
12022-1075
Unavailable
12023
HOLDER-VALVE,MAIN
12023-1072
Unavailable
13107
SHAFT,MAIN
13107-1284
Unavailable
13168
LEVER,MAIN VALVE
13168-1499
$91.49
14090
COVER,VALVE COVER
14090-1219
$30.13
14090A
COVER,ROD
14090-1220
$9.39
14090B
COVER,RESONATOR
14090-1226
Unavailable
14090C
COVER,GOVERNOR
14090-1249
$11.93
39062
HOSE-COOLING,PUMP-CYLINDER
39062-1478
$38.94
46102
ROD
46102-1332
Unavailable
49002
GUIDE-VALVE
49002-1087
$17.12
49002A
GUIDE-VALVE
49002-1117
$16.08
49002B
GUIDE-VALVE
49002-1118
Unavailable
49046
ROD-GOVERNOR
49046-1072
$91.61
52014
ELBOW
52014-1077
$37.05
59051
GEAR-SPUR,MAIN VALVE
59051-1252
$35.01
59051A
GEAR-SPUR,IDLE
59051-1275
Unavailable
130
BOLT-FLANGED,5X8
130G0508
$1.85
130A
BOLT-FLANGED,5X14
130G0514
$1.92
130B
BOLT-FLANGED
130G0535
$3.84
132
BOLT-FLANGED-SMALL
132G0625
Unavailable
132A
BOLT-FLANGED-SMALL
132G0810
$4.02
221
SCREW-CSK-CROS,6X12
221B0612
$2.06
482
CIRCLIP-TYPE-E,4MM
482J4000
$1.35
610
ROLLER,4X8
610A0408
$4.31
92004
STUD,8X28.5
92004-1060
$4.87
92009
SCREW,3X6
92009-1371
$4.18
92009A
SCREW,5X10
92009-1502
$4.18
92015
NUT,FLANGED,10MM
92015-077
$4.69
92015A
NUT,8MM
92015-1143
$0.65
92015B
NUT,LEFT HANDED,6MM
92015-1572
$4.11
92022
WASHER,5.2X13X1
92022-1380
$4.31
92022A
WASHER,8.2X14X1.0
92022-1488
$4.92
92022B
WASHER,WAVE
92022-1978
$6.24
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92043
PIN,MAIN VALVE
92043-1470
$4.92
92049
SEAL-OIL,RSO-5.5X11X4
92049-1206
$10.39
92055
RING-O,17.5X1.5
92055-022
$6.22
92055A
RING-O,11.5X1.5
92055-1387
$3.92
92065
GASKET,12.5X18X1,DRAIN PLUG
92065-073
$4.07
92066
PLUG,12X10
92066-1222
$12.37
92122
ROLLER,3X31.8
92122-1187
$4.39
92143
COLLAR
92143-1056
$10.57
92150
BOLT,SOCKET,4X8
92150-1888
$3.32
92170
CLAMP
92170-1514
$4.31
92200
WASHER,5.6X18X1.2
92200-1129
$4.01
