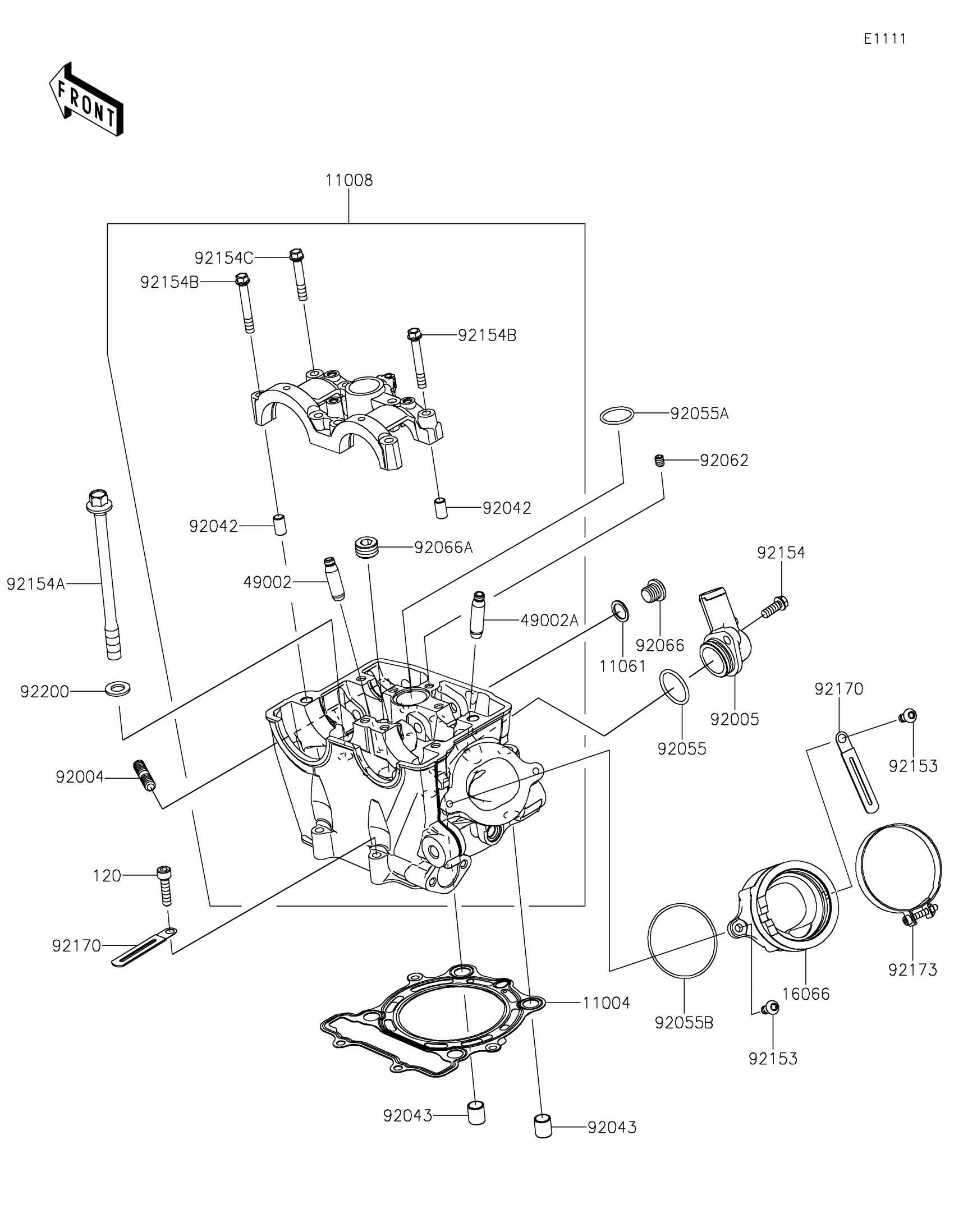

Kawasaki KX250 Cylinder Head Diagram
#
Description
Price
11004
GASKET-HEAD
11004-0786
$36.77
11008
HEAD-COMP-CYLINDER
11008-0963
$879.87
11061
GASKET,12.5X17X1
11061-1322
$2.37
120
BOLT-SOCKET,6X35
120CA0635
$2.06
16066
HOLDER-THROTTLE BODY
16066-0019
$22.59
49002
GUIDE-VALVE
49002-0003
$17.97
49002A
GUIDE-VALVE
49002-0045
$22.25
92004
STUD,8X22
92004-0025
$3.87
92005
FITTING
92005-0942
$18.72
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043
PIN,10.1X12X14
92043-4009
$6.22
92055
RING-O,24.7X2.4
92055-0150
$2.12
92055A
RING-O,25X1.9X1.35
92055-0729
$3.74
92055B
RING-O,53X1.78
92055-0939
$11.46
92062
NOZZLE,6X8,YELLOW
92062-1080
$8.58
92066
PLUG
92066-0931
$9.31
92066A
PLUG,10X16.6
92066-3777
$5.54
92153
BOLT,TORX,6X14
92153-0406
$2.80
92154
BOLT,FLANGED,6X16
92154-1926
$1.73
92154A
BOLT,FLANGED,10X130
92154-2104
$15.97
92154B
BOLT,FLANGED,6X42
92154-2979
$1.17
92154C
BOLT,FLANGED,6X35
92154-2983
$1.17
92170
CLAMP
92170-1514
$4.31
92173
CLAMP
92173-2147
$10.92
92200
WASHER,10.2X18.4X1.8
92200-1691
$4.20
