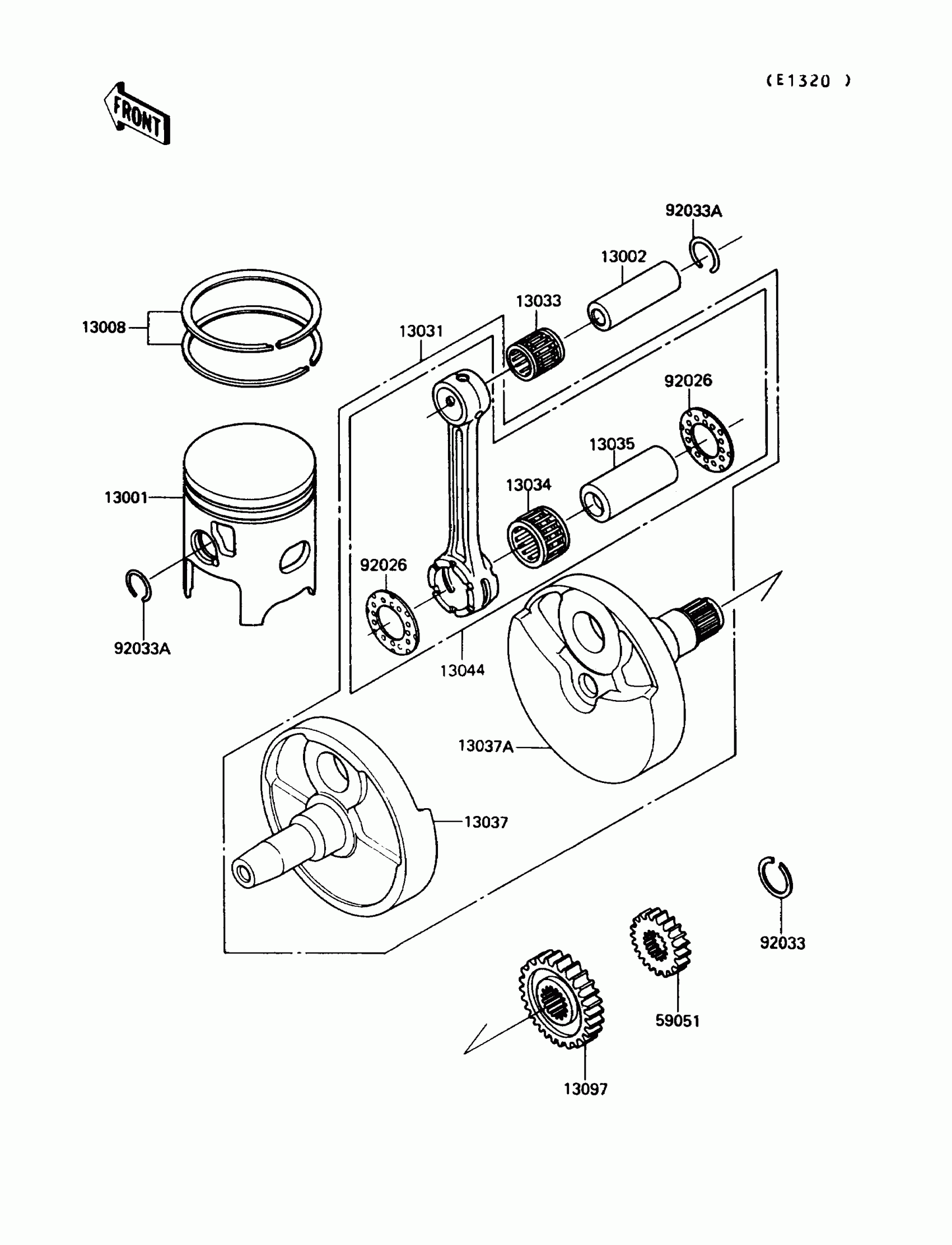

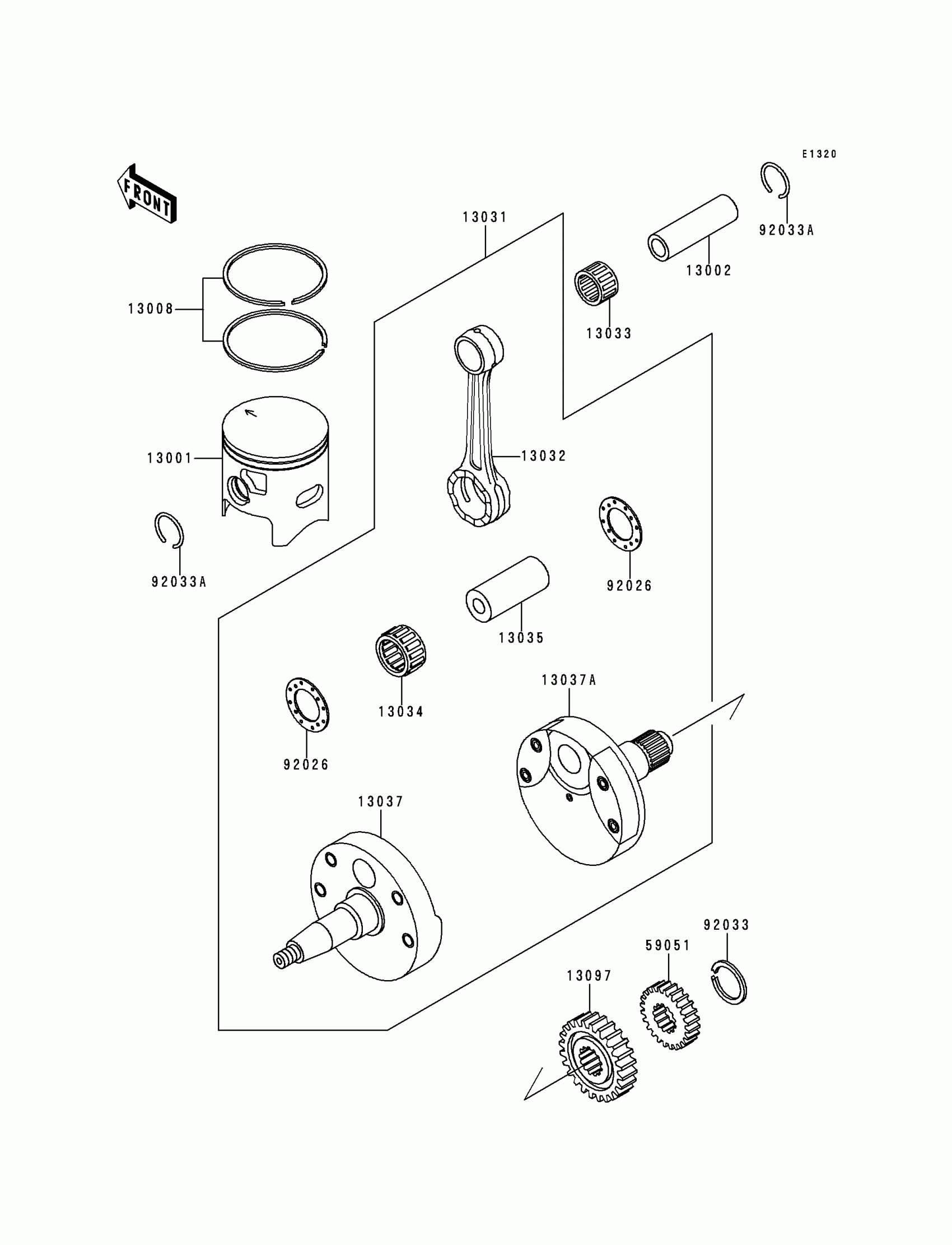

Kawasaki KX250 Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE

13001-1246

Unavailable

13002

PIN-PISTON

13002-1068

Unavailable

13008

RING-SET-PISTON

13008-1091

$80.36

13031

CRANKSHAFT-COMP

13031-1292

Unavailable

13033

BEARING-SMALL END

13033-1010

$25.15

13034

BEARING-BIG END,SKTZ243220EGS

13034-1076

Unavailable

13035

PIN,CRANK

13035-034

$85.12

13037

CRANKSHAFT,LH

13037-1371

Unavailable

13037A

CRANKSHAFT,RH

13037-1372

Unavailable

13044

SET-CONNECTING ROD

13044-5056

Unavailable

13097

GEAR-PRIMARY SPUR,20T

13097-1208

Unavailable

59051

GEAR-SPUR,PUMP,18T

59051-1193

Unavailable

92026

SPACER

92026-1241

$9.48

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

CIRCLIP-PISTON PIN

92036-015

$4.95
