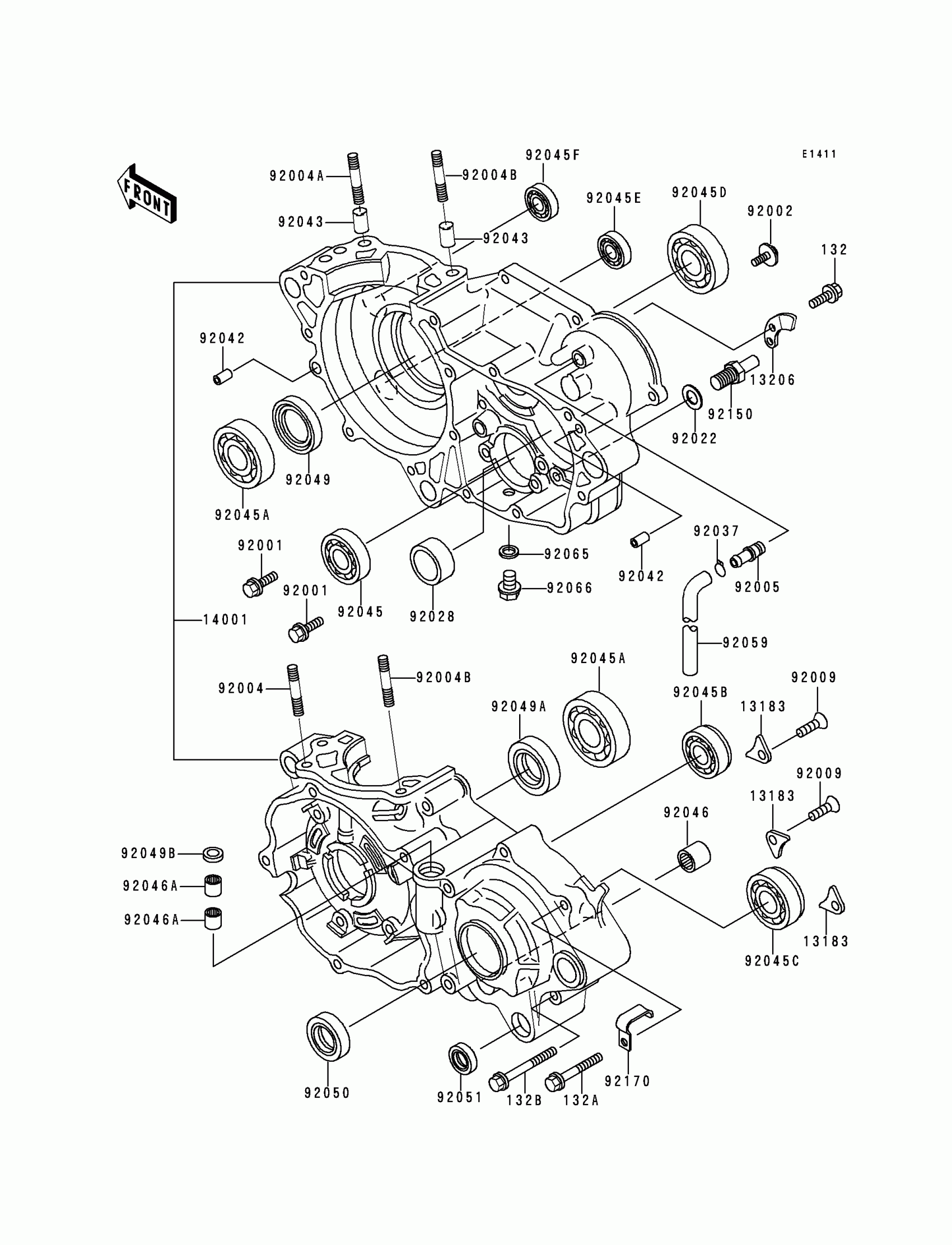

Kawasaki KX250 Crankcase Diagram
#
132
BOLT-FLANGED-SMALL,6X16
132G0616
$1.47
132A
BOLT-FLANGED-SMALL,6X45
132G0645
$4.15
132B
BOLT-FLANGED-SMALL
132G0675
$4.35
13183
PLATE
13183-1182
$4.69
13206
GUIDE-KICK
13206-1062
$10.56
14001
SET-CRANKCASE
14001-5336
Unavailable
92001
BOLT,W/WASHER,6X14
92001-1829
$3.92
92002
BOLT,6X16
92002-1659
$5.00
92004
STUD,10X45
92004-1160
$12.79
92004A
STUD,10X53
92004-1165
Unavailable
92004B
STUD,10X66
92004-1203
$12.37
92005
FITTING,BREATHER
92005-1210
$13.71
92009
SCREW,6X10
92009-1563
$4.31
92022
WASHER,10.2X18X1.0,SK5
92022-1415
$4.69
92028
BUSHING,26X35X14
92028-131
$38.06
92037
CLAMP
92037-1610
$2.00
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043
PIN,11X14X12.3
92043-1266
$1.08
92045
BEARING-BALL,6905Z
92045-1058
$33.73
92045A
BEARING-BALL,TMB3/28JR2C3
92045-1183
$48.54
92045B
BEARING-BALL
92045-1233
$32.04
92045C
BEARING-BALL,TMB205/56W-5
92045-1240
$57.30
92045D
BEARING-BALL,63/22/25X7
92045-1300
$37.01
92045E
BEARING-BALL,626MC3
92045-1304
$11.88
92045F
BEARING-BALL,608MC3
92045-1305
$12.37
92046
BEARING-NEEDLE,7E-HK1412
92046-037
$21.68
92046A
BEARING-NEEDLE,HK1210
92046-1010
Unavailable
92049
SEAL-OIL,TCJ25457
92049-1051
$36.79
92049A
SEAL-OIL,TCJ20407
92049-1052
$31.73
92049B
SEAL-OIL,AG0353-F0
92049-1262
$6.57
92050
SEAL-OIL,TB3040
92050-033
$21.74
92051
SEAL-OIL,TB13225.5
92051-005
$7.74
92059
TUBE,6X9X360
92059-103
$18.63
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG,DRAIN
92066-1388
$7.39
92150
BOLT,RETURN SPRING
92150-1803
$9.51
92170
CLAMP
92170-1555
$7.62
