Description

Price

13087

HUB-CLUTCH

13087-1153

Unavailable

13088

PLATE-FRICTION

13088-1105

$15.50

13089

PLATE-CLUTCH

13089-1066

$12.80

13091

HOLDER

13091-1762

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-1278

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1126

Unavailable

13116

ROD-PUSH,L=205

13116-1124

$33.11

13187

PLATE-CLUTCH OPERATING

13187-1012

Unavailable

92015

NUT,20MM

92015-1725

$18.89

92022

WASHER,25.5X38X2

92022-1075

$15.45

92022A

WASHER

92022-1942

$8.76

92022B

WASHER,12.3X20X0.5

92022-269

$1.25

92028

BUSHING

92028-1702

$56.40

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92046

BEARING-NEEDLE,K30X34X13.8

92046-1222

$21.57

92144

SPRING,CLUTCH

92144-1351

$8.93

92150

BOLT,6X22

92150-1489

$7.22

92200

WASHER,22.5X47X2

92200-1143

$13.45

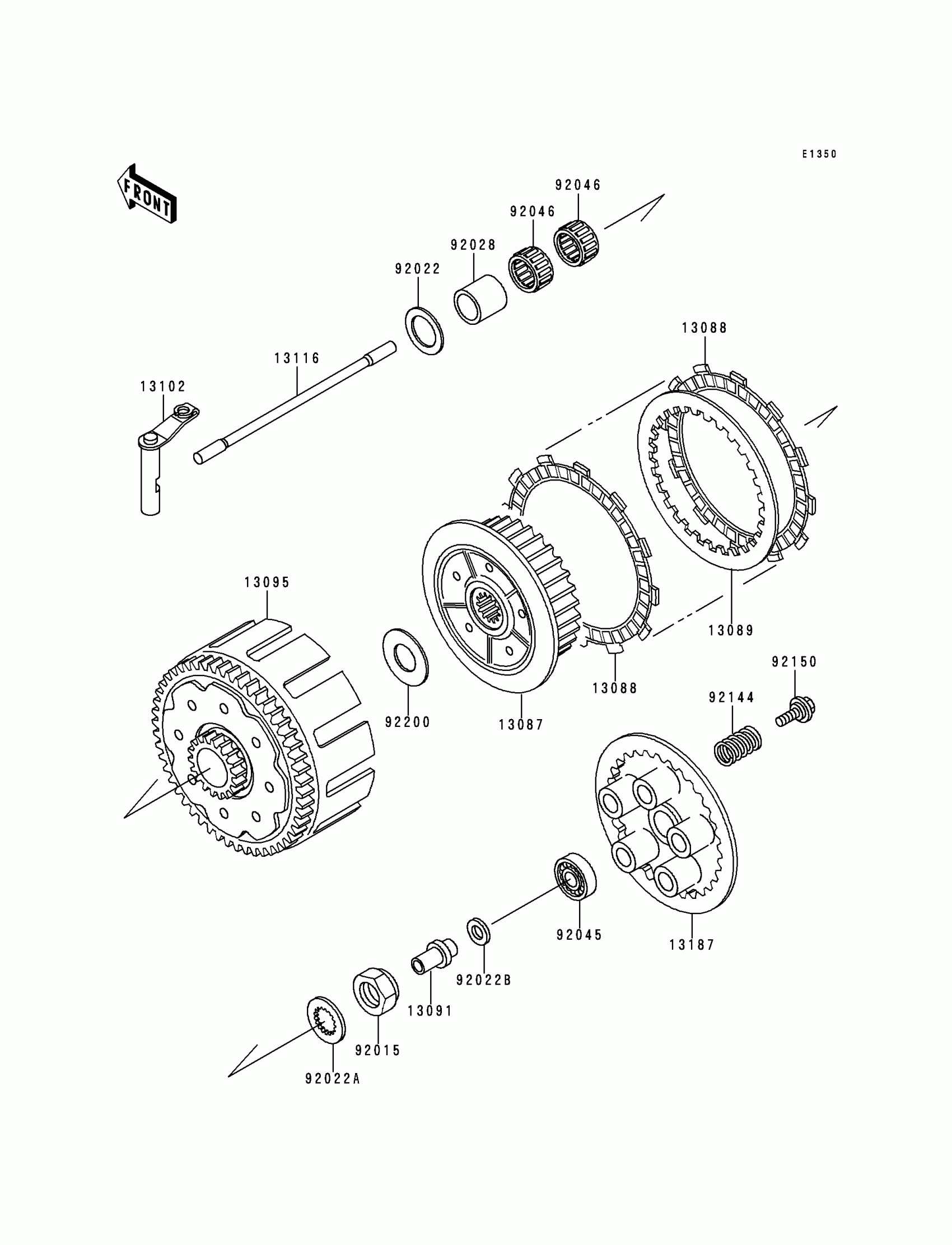

Kawasaki KX250 Clutch Diagram

HUB-CLUTCH

PLATE-FRICTION

PLATE-CLUTCH

HOLDER

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

ROD-PUSH,L=205

PLATE-CLUTCH OPERATING

NUT,20MM

WASHER,25.5X38X2

WASHER

WASHER,12.3X20X0.5

BUSHING

BEARING-BALL,6001C3ML01

BEARING-NEEDLE,K30X34X13.8

SPRING,CLUTCH

BOLT,6X22

WASHER,22.5X47X2
