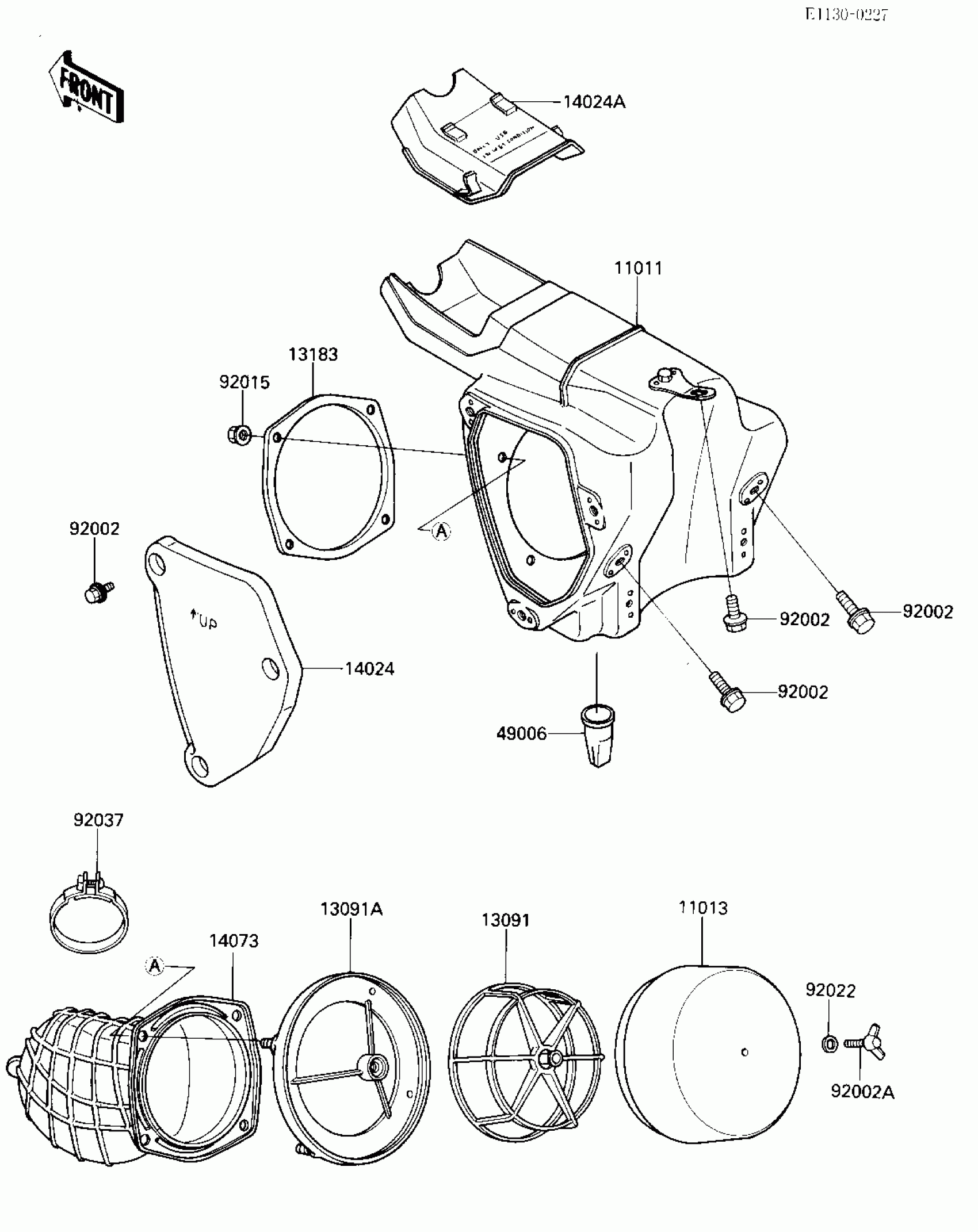

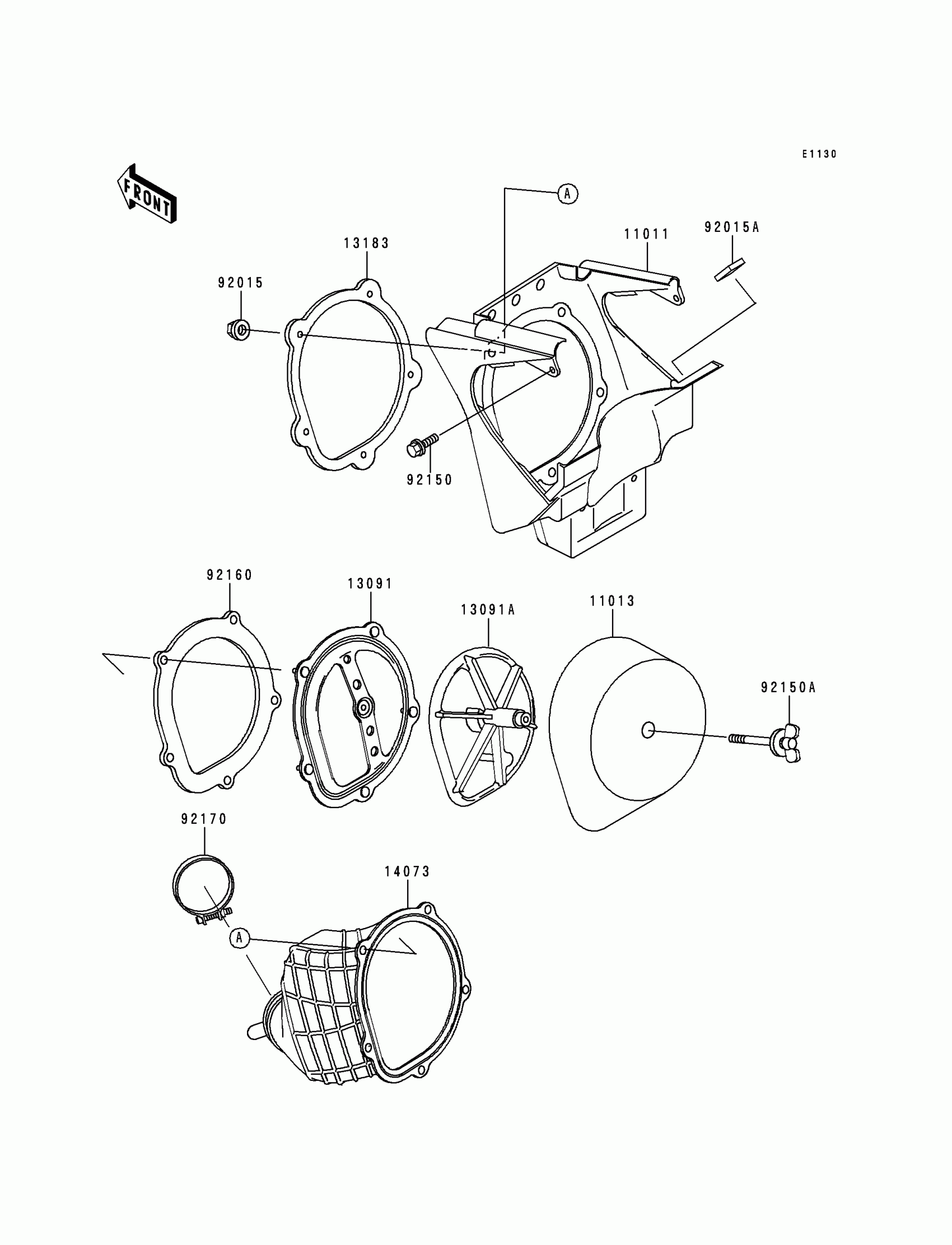

Kawasaki KX250 Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1446-RG

Unavailable

11013

ELEMENT-AIR FILTER

11013-1203

Unavailable

13091

HOLDER

13091-1664

$64.54

13091A

HOLDER,ELEMENT

13091-1708

$48.82

13183

PLATE,DUCT FITTING

13183-1530

$24.55

14073

DUCT,AIR FILTER

14073-1582

$110.79

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92015A

NUT

92015-1918

$5.30

92150

BOLT,FLANGED,6X16

92150-1506

$5.00

92150A

BOLT,WING

92150-1565

$9.89

92160

DAMPER,DUCT SEAL

92160-1196

$30.84

92170

CLAMP,AIR FILTER

92170-1464

Unavailable
