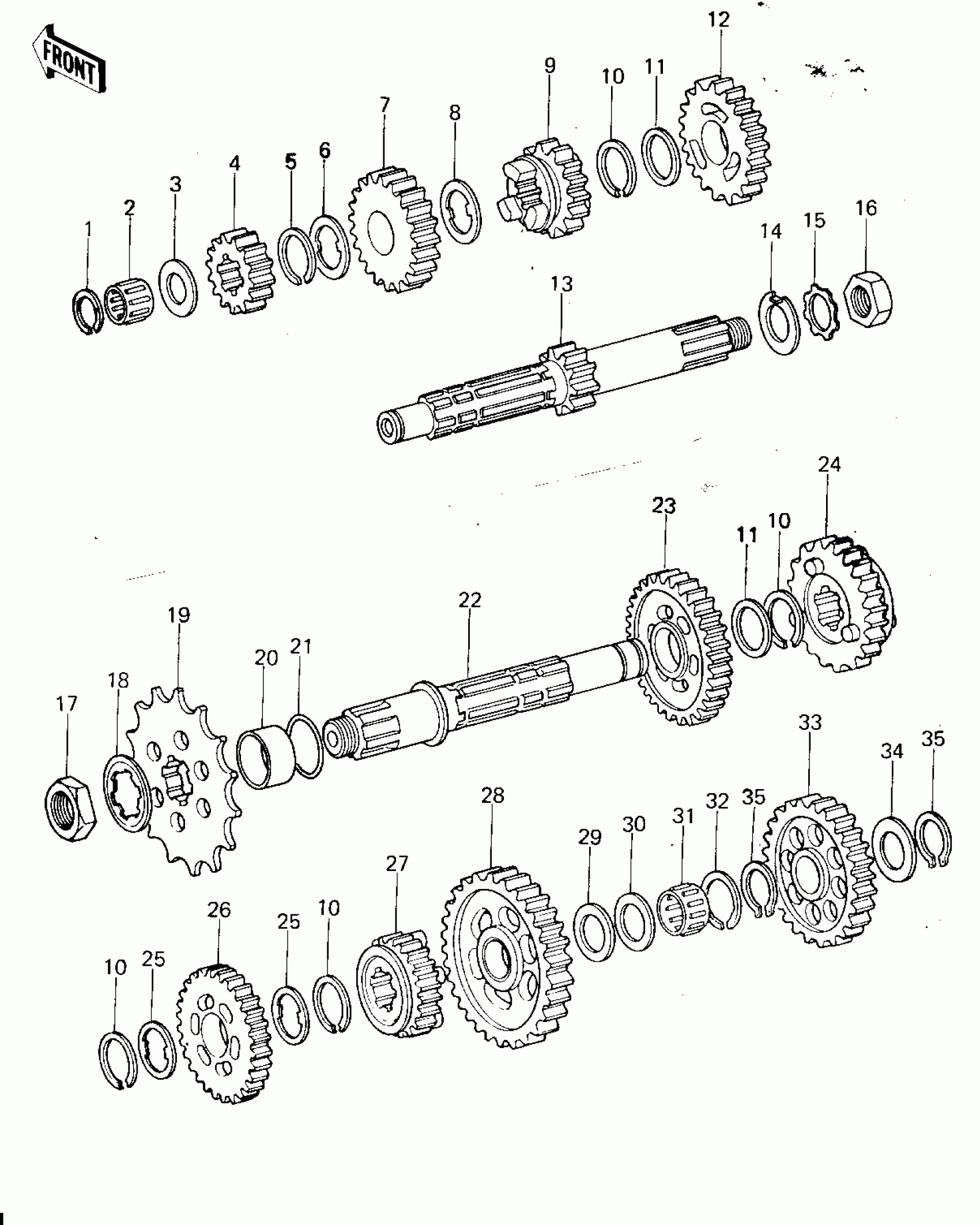

Kawasaki KX250-A5 TRANSMISSION (78-79) Diagram
#
1
CIRCLIP,DRIVE SHAFT
92033-030
Unavailable
2
BEARING,BALL
92046-038
Unavailable
3
WASHER,THRUST,15MM
92022-279
Unavailable
4
2ND GEAR,DRIVE SHAFT
13129-1073
Unavailable
4
2ND GEAR,DRIVE SHAFT
13129-1114
Unavailable
5
RING-SNAP,18MM
92033-029
Unavailable
6
WASHER,LOCK
92024-059
Unavailable
7
4TH GEAR,DRIVE SHAFT
13129-1024
Unavailable
8
WASHER,TOOTHED,20.3X24X0.5
92022-1033
Unavailable
9
3RD GEAR,DRIVE SHAFT
13129-1023
Unavailable
9
3RD GEAR,DRIVE SHAFT
13129-1115
Unavailable
10
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
11
WASHER,22.3X27X0.5
92022-198
Unavailable
12
TOP GEAR,DRIVE SHAFT
13129-1028
Unavailable
13
SHAFT,DRIVE
13127-1002
Unavailable
13
SHAFT,DRIVE
13127-1013
Unavailable
14
WASHER,16.8X32X1.6
92022-1277
Unavailable
15
WASHER,LOCK,16MM
464H1600
Unavailable
16
NUT,16M/M
92015-1016
Unavailable
17
NUT BEARING ADJUST
42045-008
Unavailable
18
WASHER,LOCK
92024-065
Unavailable
19
ENGINE SPROCKET,14T
13144-1006
Unavailable
20
COLLAR-ENG SPROKET
92027-163
Unavailable
21
RING-O
92055-035
Unavailable
22
SHAFT,OUTPUT
13128-1003
Unavailable
23
2ND GEAR,OUTPUT SHAFT
13129-1025
Unavailable
23
2ND GEAR,OUTPUT SHAFT
13129-1117
Unavailable
24
4TH GEAR,OUTPUT SHAFT
13129-1027
Unavailable
25
WASHER,TOOTHED,22.5X27X0.5
92024-039
Unavailable
26
3RD GEAR,OUTPUT SHAFT
13129-1026
Unavailable
26
3RD GEAR,OUTPUT SHAFT
13129-1118
Unavailable
27
TOP GEAR,OUTPUT 20T
13137-030
Unavailable
28
LOW GEAR,OUTPUT 28T
13129-052
Unavailable
28
LOW GEAR,OUTPUT SHAFT
13129-1116
Unavailable
29
WASHER,PLAIN
92022-280
Unavailable
30
WASHER,PLAIN
92022-281
Unavailable
31
BEARING-NEEDLE
92046-1184
Unavailable
32
RING-SNAP
92033-032
Unavailable
33
IDLE GEAR,KICKSTARTER
59051-1003
Unavailable
34
WASHER-THRUST
92022-197
Unavailable
35
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
