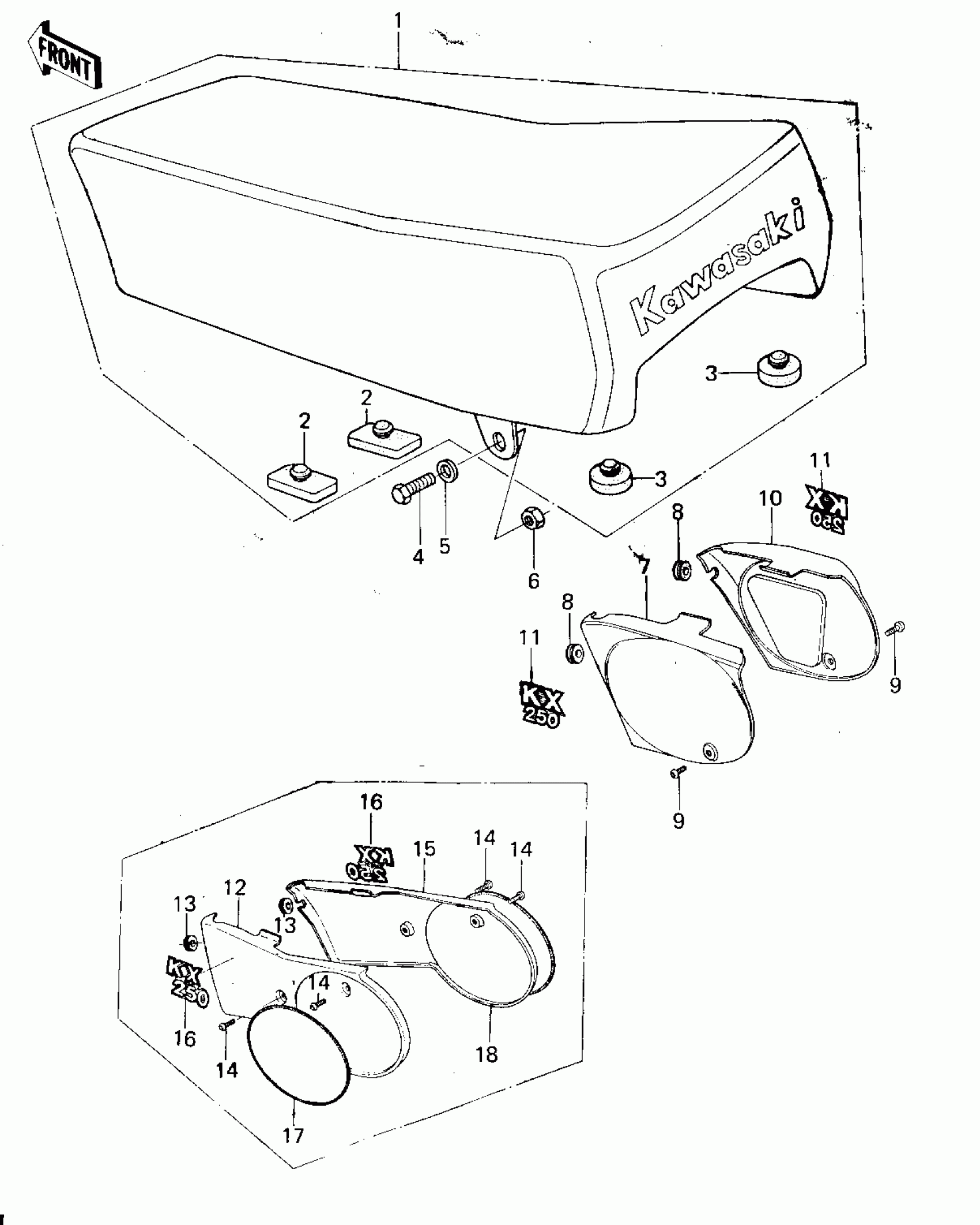

Kawasaki KX250-A5 SEAT/SIDE COVERS (78-79) Diagram

#

Description

Price

1

SEAT-ASSY

53001-1016

Unavailable

1

SEAT-ASSY

53001-1029

Unavailable

2

DAMPER

92075-1054

Unavailable

3

DAMPER,9X24X14

92075-281

Unavailable

4

BOLT-SMALL-UPSET,8X22

115B0822

Unavailable

5

WASHER PLAIN 8MM

411B0800

Unavailable

6

NUT,LOCK,8MM

92015-1124

Unavailable

7

COVER,L.H SIDE,GREEN

36001-1021-6W

Unavailable

8

DAMPER

92075-1028

Unavailable

9

SCREW,6X14,WHITE

92009-1287

Unavailable

10

COVER,R.H SIDE,GREEN

36001-1022-6W

Unavailable

11

EMBLEM,SIDE COVER

56018-1024

Unavailable

12

COVER,L.H.SIDE,L.GREN

36001-1066-6W

Unavailable

13

DAMPER

92075-1028

Unavailable

14

SCREW,6X14,WHITE

92009-1287

Unavailable

15

COVER,R.H.SIDE,L.GREN

36001-1067-6W

Unavailable

16

EMBLEM,SIDE COVER

56018-1089

Unavailable

17

PATTERN,SIDE COVER LH

56027-1513

Unavailable

18

PATTERN,SIDE COVER RH

56027-1514

Unavailable
