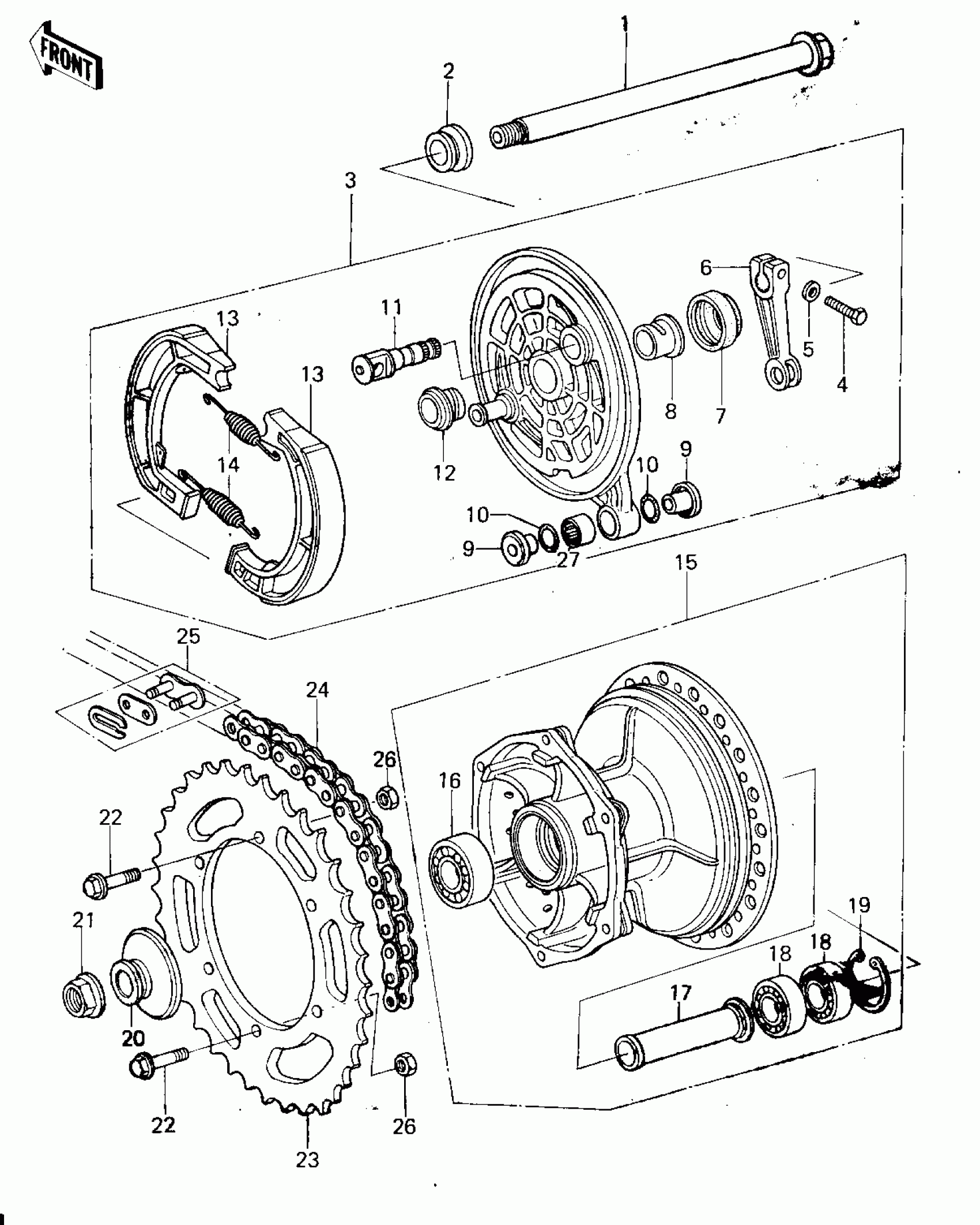

Kawasaki KX250-A5 REAR HUB/BRAKE/CHAIN (78-79) Diagram
#
Description
Price
1
AXLE,REAR
41068-1007
Unavailable
2
COLLAR,REAR AXLE
92027-1039
Unavailable
3
PANEL-ASY,RR BRK
41035-1003-21
Unavailable
4
BOLT-UPSET
112G0622
Unavailable
5
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
6
LEVER,REAR BRAKE CAM
41053-1004
Unavailable
7
OIL SEAL
92093-1004
Unavailable
8
SLEEVE,REAR BRAKE
42036-1010
Unavailable
9
COLLAR,L=11.5
92027-1040
Unavailable
10
O RING,11MM
670B2011
Unavailable
11
CAM SHAFT,BRAKE
41050-1002
Unavailable
12
SLEEVE,REAR BRAKE
42036-1009
Unavailable
13
SHOE,BRAKE
42019-011
Unavailable
14
SPRING,BRAKE SHOE
42020-004
Unavailable
15
DRUM-ASSY,RR BRK,BLK
41034-1007-21
Unavailable
16
BEARING-BALL
601B6303U
Unavailable
17
COLLAR,REAR BRAKE
92027-1037
Unavailable
18
BEARING-BALL,#6003UC3
601B6003U
Unavailable
19
CIRCLIP-TYPE-C,35MM
481J3500
Unavailable
20
COLLAR,REAR AXLE
92027-1038
Unavailable
21
NUT,16MM
92015-1015
Unavailable
22
BOLT,HEX HEAD,8X32
92001-1040
Unavailable
23
REAR SPROCKET,50T STD
42041-1006
Unavailable
23
REAR SPROCKET,48T
42041-1022
Unavailable
23
REAR,SPROCKET,52T
42041-1008
Unavailable
24
DR CHAIN 520X110
92057-1004
Unavailable
24
DR CHAIN 520X116
92057-1028
Unavailable
25
CHAIN JOINT 520
92058-1002
Unavailable
26
NUT,LOCK,8MM
92015-1124
Unavailable
27
BEARING-NEEDLE,HK1216LL
92046-1009
Unavailable
