1979 Kawasaki KX250-A5 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1979 Kawasaki KX250-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

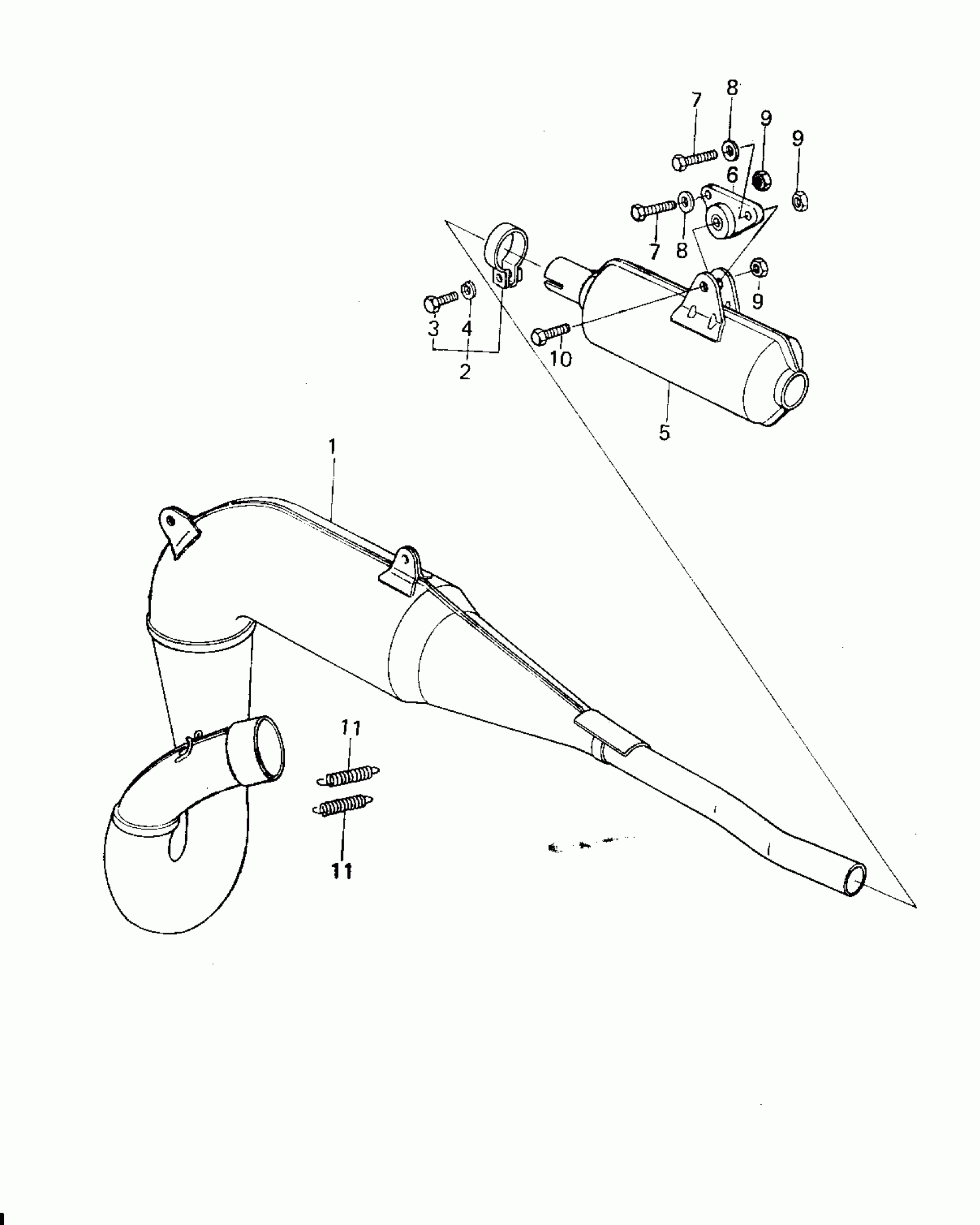

1979 Kawasaki KX250-A5 Muffler Diagram

#

Description
Price
Status
Order Qty

1

BODY,MUFFLER

49070-1015

Out of stock

1

BODY,MUFFLER

49070-1015

Out of stock

2

CLAMP,MUFFLER FITTING

92037-1035

Out of stock

2

CLAMP,MUFFLER CONNECT

92037-1115

Out of stock

3

BOLT-UPSET,6X20

112G0620

Out of stock

4

WASHER SPRING 6MM

461F0600

Out of stock

5

MUFFLER ASSY

18001-1017-21

Out of stock

5

MUFFLER ASSY

18001-1060

Out of stock

6

DAMPER RUBBER

92075-1046

Out of stock

7

BOLT 6X35

110R0635

Out of stock

7

BOLT-UPSET,6X16

112G0616

Out of stock

8

WASHER PLAIN 6MM

411B0600

Out of stock

9

NUT,LOCK,6MM

92019-008

Out of stock

10

BOLT-UPSET

112G0625

Out of stock

11

SPRING-CONNECTOR

18071-003

Out of stock
