1979 Kawasaki KX250-A5 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1979 Kawasaki KX250-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

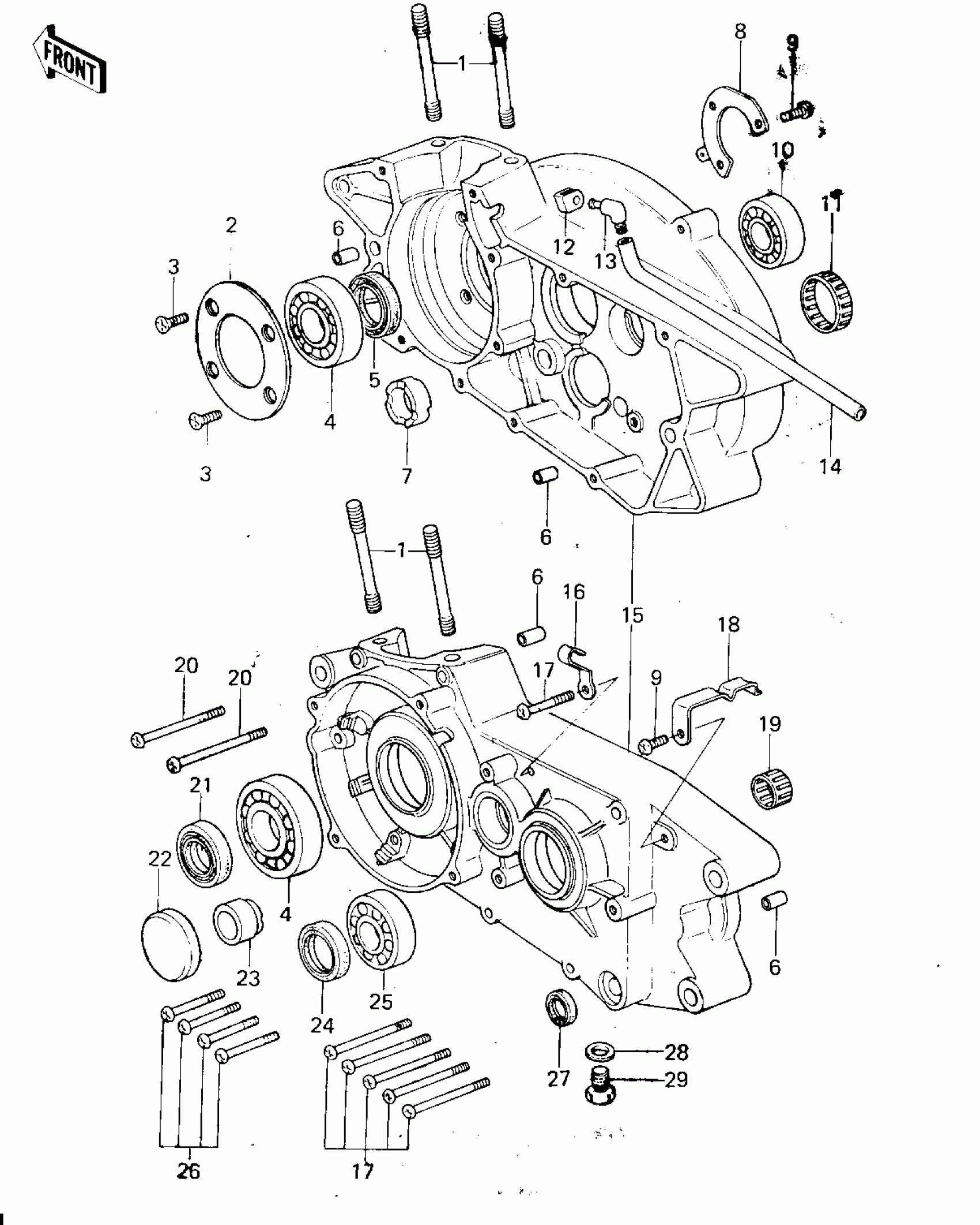

1979 Kawasaki KX250-A5 Crankcase Diagram

#

Description
Price
Status
Order Qty

1

STUD,10X65

92004-1006

Out of stock

2

HOLDER,CRANK BEARING

14014-030

Out of stock

3

SCREW-CSK-CROS,6X14

221B0614

Out of stock

4

BEARING,BALL,#6305SH

92045-1024

Out of stock

4

BEARING,BALL,#6305SH

92045-1024

Out of stock

5

OIL SEAL TB32457

653B324507

Out of stock

6

PIN,DOWEL,10X14

92043-1037

Out of stock

7

BUSHING

92028-147

Out of stock

8

HOLDER,CRANK BEARING

14014-031

Out of stock

9

SCREW-PAN-CROS,6X14

220B0614

Out of stock

10

BEARING-BALL,#6204C3

601B6204

Out of stock

11

BEARING,NEEDLE,344012

92046-040

Out of stock

12

GROMMET,BREATHER

92071-042

Out of stock

13

BREATHER ASSY

14069-1001

$22.77

In stock

14

TUBE,6X9X750

92059-1372

Out of stock

15

CRANK CASE SET

14001-5009

Out of stock

15

CRANKCASE SET

14001-5024

Out of stock

16

CLAMP CABLE

92037-016

Out of stock

17

SCREW PAN HEAD 6X65

220B0665

Out of stock

18

CLAMP,WIRING HARNESS

92037-142

Out of stock

19

BEARING-NEEDLE,7E-HK1412

92046-037

Out of stock

20

SCREW PAN HEAD 6X70

220B0670

Out of stock

21

OIL SEAL,TB25457

653B254507

Out of stock

22

CAP,CRANKCASE HOLE

92073-025

Out of stock

23

BUSHING

92028-146

Out of stock

24

SEAL-OIL,TB3040

92050-033

Out of stock

25

BEARING-BALL,#6205C3

601B6205

Out of stock

26

SCREW PAN HEAD 6X45

220B0645

Out of stock

27

SEAL-OIL,TB13225.5

92051-005

Out of stock

28

GASKET,10.5X16X1

92065-058

Out of stock

29

PLUG,DRAIN,10X12

92067-001

Out of stock
