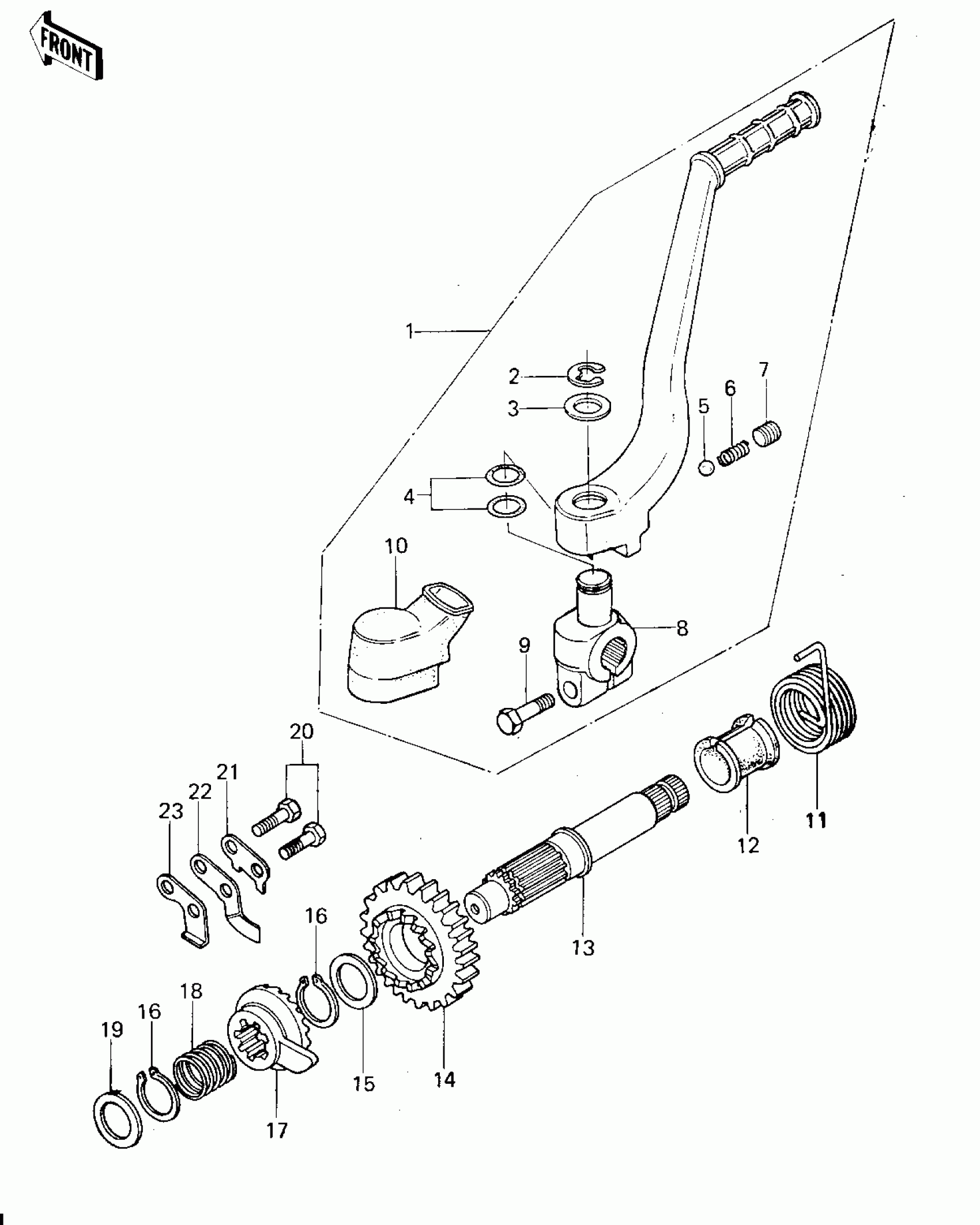

Kawasaki KX250-A5 KICKSTARTER MECHANISM (78-79) Diagram

#

Description

Price

1

PEDAL ASSY,KICK

13064-1004

Unavailable

2

CIR CLIP

482K0100

Unavailable

3

WASHER,15.2X20X1

92022-1019

Unavailable

4

O RING,15MM

670B2015

Unavailable

5

BALL-STEEL,1/4

600A0800

Unavailable

6

SPRING,KICK PEDAL

92081-020

Unavailable

7

SCREW-SET-SOCKET,8X8

290Q0808

Unavailable

8

BOSS,KICKSTARTER

13061-1007

Unavailable

9

BOLT,8X28

92001-1042

Unavailable

10

BOOT,KICKSTARTER

49006-1006

Unavailable

11

SPRING,KICKSTARTER

92082-003

Unavailable

12

GUIDE,KICKSTARTER

13070-007

Unavailable

13

SHAFT,KICKSTARTER

13066-1003

Unavailable

14

GEAR-KICKSTARTER

13068-025

Unavailable

15

WASHER,25.3X30X0.5

92022-159

Unavailable

16

RING-SNAP,24MM

92033-026

Unavailable

17

RATCHET

13078-007

Unavailable

18

SPRING

92081-097

Unavailable

19

WASHER,20.5X25.5X0.5

92022-252

Unavailable

20

BOLT-UPSET

112G0618

Unavailable

21

WASHER,KICKSTOP GUIDE

92031-010

Unavailable

22

GUIDE,KICK STOPPER

13206-011

Unavailable

23

STOPPER,KICKSHAFT

13072-016

Unavailable
